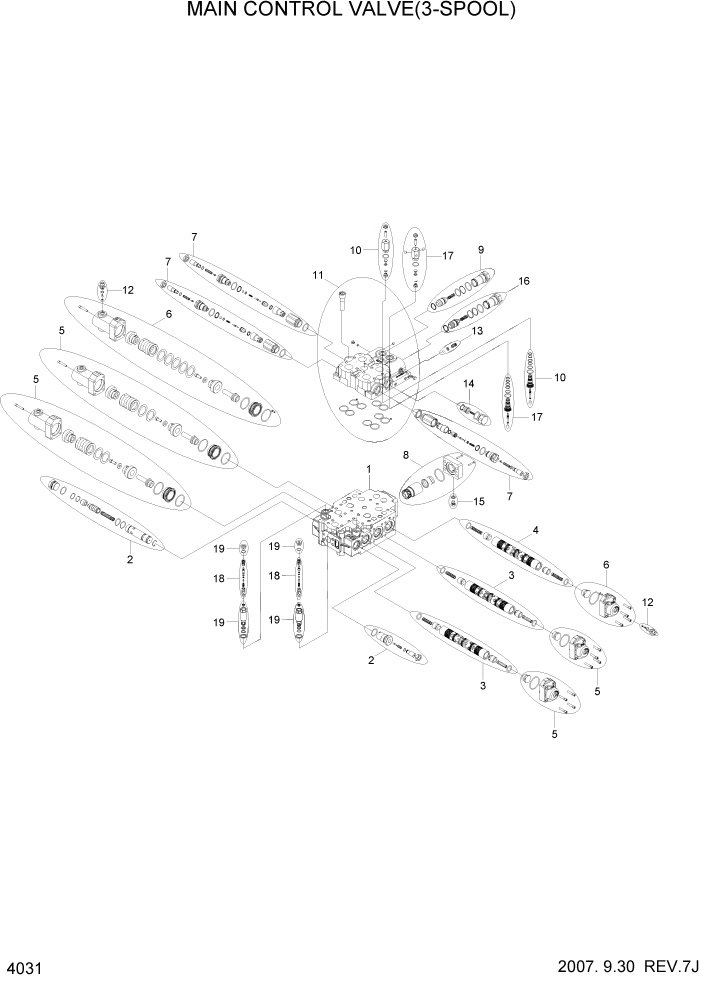

Запчасти Hyundai HL770-7 PAGE 4031 MAIN CONTROL VALVE(3-SPOOL) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LB-00130

MAIN CONTROL VALVE

1шт.

1

@

HOUSING GROUP

NOT #0001

1шт.

2

ZUAH-00041

MAIN R/V ASSY

1шт.

N3

ZUAH-00042

DOUBLE ACT SPOOL

NOT #0001

2шт.

N4

ZUAH-00043

DOUBLE ACT SPOOL

NOT #0001

1шт.

5

ZUAH-00044

SPOOL CENTERING

#0001

2шт.

6

ZUAH-00045

SPOOL CENTERING

1шт.

7

ZUAH-00046

PORT RELIEF VALVE

3шт.

8

ZUAH-00047

BACK PRESSURE VALVE

1шт.

9

ZUAH-00048

CHECK VALVE ASSY

1шт.

10

ZUAH-00049

PILOT VALVE ASSY

1шт.

11

@

CHECK BLOCK ASSY

NOT #0001

1шт.

12

ZUAH-00051

ADAPTOR & CHECK VLV

2шт.

13

ZUAH-00052

SHUTTLE VALVE ASSY

1шт.

14

ZUAH-00053

CHECK VALVE ASSY

1шт.

15

ZUAH-00054

PLUG

1шт.

16

ZUAH-00055

CHECK VALVE ASSY

1шт.

17

ZUAH-00056

PILOT VALVE ASSY

1шт.

18

ZUAH-00058

O/L CARTRIDGE ASSY

#0001

2шт.

19

ZUAH-00059

OVERLOAD SEAT ASSY

#0001

2шт.

K

ZUAH-00176

SEAL KIT

#0001

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
