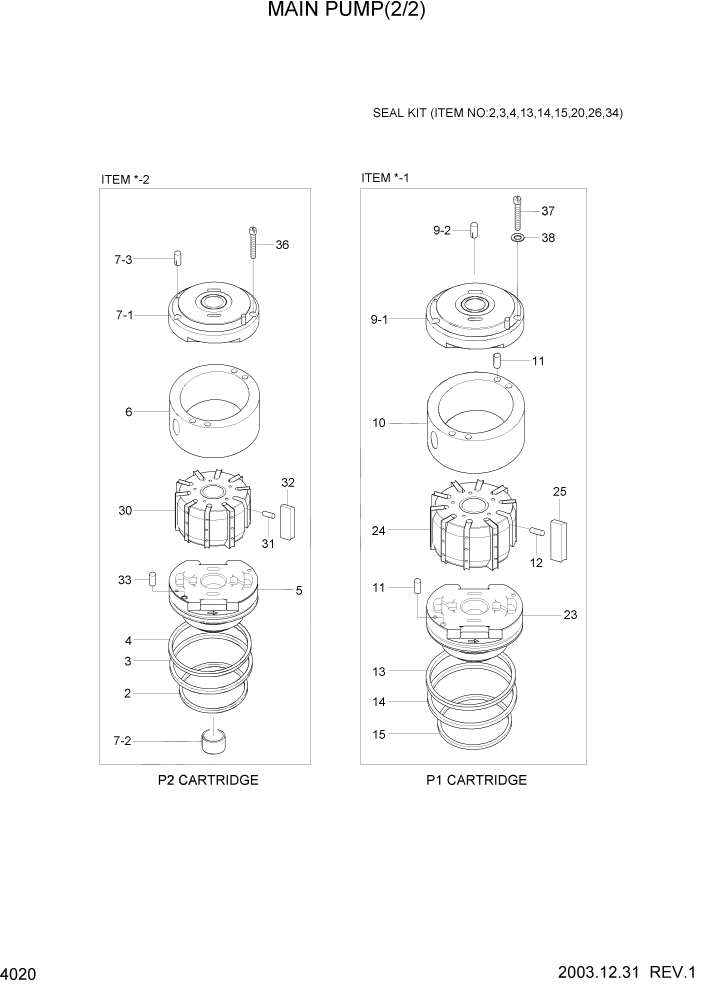

Запчасти Hyundai HL770-7 PAGE 4020 MAIN PUMP(2/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

MAIN PUMP

NOT

1шт.

*-1

XJDF-00076

P1 CARTRIDGE(B38)

S24-76979-5 #0001

1шт.

9

XJDF-00084

REAR PLATE ASSY

S24-76916

1шт.

9-1

@

PORT PLATE-REAR

NOT

1шт.

9-2

@

DOWEL PIN

NOT

1шт.

10

XJDF-00065

CAMRING

34.67154

1шт.

11

@

PIN-DOWEL

NOT

2шт.

12

@

PIN-VANE HOLDOUT

NOT

12шт.

K13

@

BACK-UP RING

NOT

1шт.

K14

@

SEAL-SECTION

NOT

1шт.

K15

@

SEAL-SECTION

NOT

1шт.

23

XJDF-00070

PORT PLATE-PRESSURE

34.67479

1шт.

24

@

ROTOR ASSY

NOT

1шт.

25

@

VANE

NOT

12шт.

37

@

SCREW

NOT

2шт.

38

@

WASHER-LOCK

NOT

2шт.

*-2

XJDF-00077

P2 CARTRIDGE(M25)

S24-40195-5 #0001

1шт.

K2

@

SEAL-SECTION

NOT

1шт.

K3

@

SEAL SECTION

NOT

1шт.

K4

@

BACK-UP RING

NOT

1шт.

5

XJDF-00080

PORT PLATE-PRESSURE

34.59773 #0001

1шт.

6

XJDF-00062

CAMRING

34.59209

1шт.

7

XJDF-00085

REAR PLATE ASSY

S24-10809

1шт.

7-1

@

PORT PLATE-REAR

NOT

1шт.

7-2

@

BUSHING

NOT

1шт.

7-3

@

DOWEL PIN

NOT

1шт.

29

@

PIN-LOCK

NOT

1шт.

30

@

ROTOR ASSY

NOT

1шт.

31

@

PIN-VANE HOLDOUT

NOT

10шт.

32

@

VANE

NOT

10шт.

33

@

PIN-DOWEL

NOT

2шт.

36

@

SCREW

NOT

2шт.

K

XJDF-00040

SEAL KIT

S24-10170-5

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
