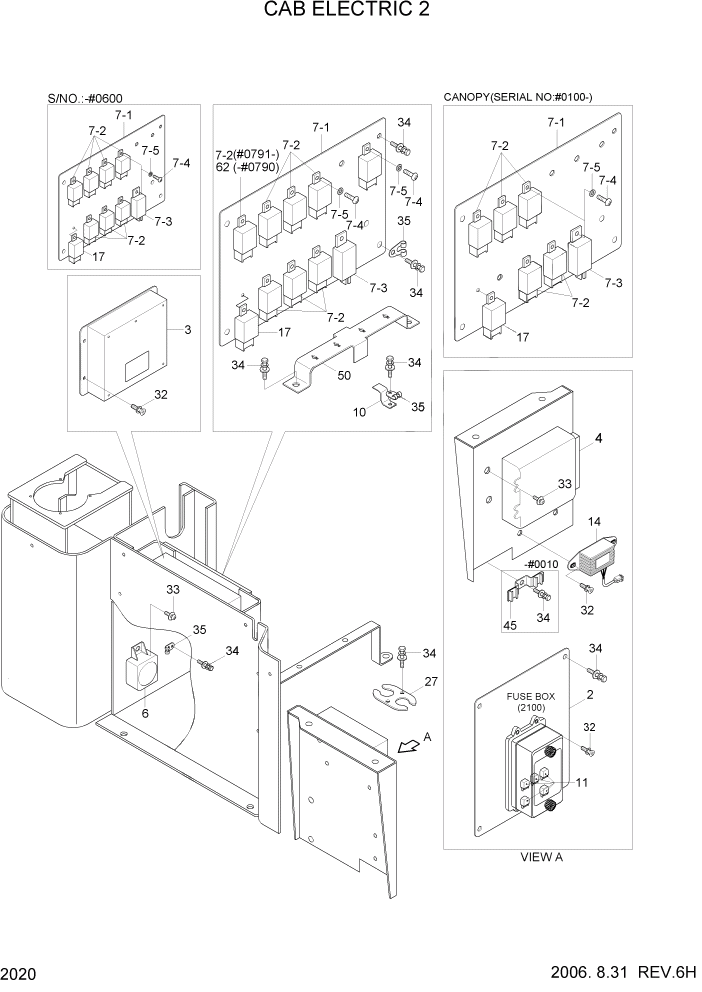

Запчасти Hyundai HL770-7 PAGE 2020 CAB ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21LB-40110

PLATE

1шт.

3

21LB-40101

MCU

#0649

1шт.

3

21LB-40102

MCU

#0650

1шт.

4

24L1-50051

CONTROL UNIT(EST-37A)

1шт.

6

21E4-2025

BUZZER-WARNING

1шт.

7

21LC-20070

RELAY BOARD ASSY

CAB TYPE #0600

1шт.

7

21LC-20071

RELAY BOARD ASSY

CAB TYPE #0601 - #0790

1шт.

7

21LC-20072

RELAY BOARD ASSY

CAB TYPE #0791

1шт.

7

21LD-80220

RELAY BOARD ASSY

CANOPY TYPE #0100

1шт.

7-1

21LC-20080

PLATE WA

CAB TYPE #0600

1шт.

7-1

21LC-20081

PLATE-RELAY BOARD

CAB TYPE #0601

1шт.

7-1

21LC-20080

PLATE WA

CANOPY TYPE

1шт.

7-2

21E4-0011

RELAY-4P

CAB TYPE #0790

7шт.

7-2

21E4-0011

RELAY-4P

CAB TYPE #0791

8шт.

7-2

21E4-0011

RELAY-4P

CANOPY TYPE #0100

5шт.

7-3

21ER-60700

FLASHER UNIT ASSY

#0345

1шт.

7-3

21ER-60702

FLASHER UNIT ASSY

#0346

1шт.

7-4

S161-050102

SCREW-CROSS R/ROUND

CAB TYPE #0790

8шт.

7-4

S161-050102

SCREW-CROSS R/ROUND

CAB TYPE #0791

9шт.

7-4

S161-050102

SCREW-CROSS R/ROUND

CANOPY TYPE #0100

6шт.

7-5

S411-050002

WASHER-SPRING

CAB TYPE #0790

8шт.

7-5

S411-050002

WASHER-SPRING

CAB TYPE #0791

9шт.

7-5

S411-050002

WASHER-SPRING

CANOPY TYPE #0100

6шт.

10

21E7-0612

PLATE-CONNECTOR

1шт.

11

24L1-05100

RELAY-5P

CAB TYPE

5шт.

11

24L1-05100

RELAY-5P

CANOPY TYPE #0100

3шт.

14

21N8-20201

DC-DC CONVERTER ASSY

OPT

1шт.

R17

21E4-0011

RELAY-4P

RIDE CONTROL

1шт.

27

21LB-20331

PLATE

1шт.

32

S131-061546

SCREW-W/WASHER

10шт.

33

S131-051546

SCREW-W/WASHER

5шт.

34

S035-082022

BOLT-W/WASHER

#0010

18шт.

34

S035-082022

BOLT-W/WASHER

#0011

17шт.

35

S593-000902

CLIP-HARNESS

9шт.

45

21N4-01130

PLATE-CLIP

#0010

1шт.

50

21LB-40070

PLATE

1шт.

62

21E4-0011

RELAY-4P

FUEL WARMER #0601 - #0790

1шт.
