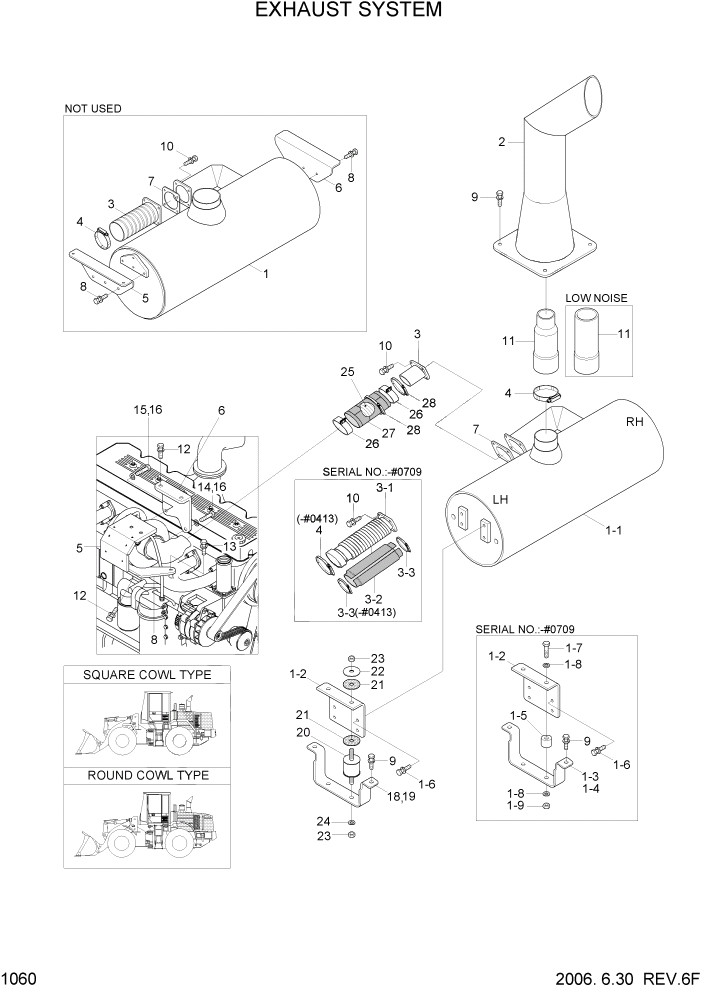

Запчасти Hyundai HL770-7 PAGE 1060 EXHAUST SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11LB-50170

MUFFLER ASSY

SQUARE COWL

1шт.

1

11LB-50260

MUFFLER ASSY

ROUND COWL #0152 - #0709

1шт.

1

11LB-50261

MUFFLER ASSY

ROUND COWL #0710

1шт.

1-1

11LB-50180

MUFFLER ASSY

SQUARE COWL

1шт.

1-1

11LB-50270

MUFFLER ASSY

ROUND COWL #0152

1шт.

1-2

11LB-50041

BRACKET

#0709

2шт.

1-2

11LB-50860

BRACKET

#0710

2шт.

1-3

11LB-50240

BRACKET WA-LH

#0709

1шт.

1-4

11LB-50250

BRACKET WA-RH

#0709

1шт.

1-5

11LB-50160

SPACER

#0709

4шт.

1-6

S037-122552

BOLT-W/WASHER

8шт.

1-7

S017-120652

BOLT-HEX

#0709

4шт.

1-8

S441-120002

WASHER-HARDENED

#0709

8шт.

1-9

S207-121002

NUT-HEX

#0709

4шт.

2

11LB-50090

PIPE WA-TAIL

1шт.

3

11LB-50151

BELLOWS PIPE ASSY

#0413

1шт.

3

11LB-50430

BELLOWS PIPE ASSY

#0414 - #0709

1шт.

3

11LB-50880

PIPE WA

#0710

1шт.

3-1

11LB-50290

PIPE WA

#0413

1шт.

3-1

11LB-50440

PIPE WA

#0414 - #0709

1шт.

3-2

11LB-50300

INSULATOR

#0413

1шт.

3-2

11LB-50450

INSULATOR

#0414 - #0709

1шт.

3-3

S520-115000

CLAMP-HOSE

#0413

2шт.

3-3

S520-115000

CLAMP-HOSE

#0414 - #0709

1шт.

4

11EH-32080

CLAMP-EXHAUST PIPE

#0413

2шт.

4

11EH-32080

CLAMP-EXHAUST PIPE

#0414

1шт.

5

11LB-50340

SCREEN-T/CHARGER

#0328

1шт.

6

11LB-50350

BRACKET

#0328

1шт.

7

11L1-2104

GASKET

1шт.

8

11LB-50360

BRACKET

#0328

1шт.

9

S037-123052

BOLT-W/WASHER

#0709

8шт.

9

S037-12305V

BOLT-W/WASHER

#0710

8шт.

10

S037-103052

BOLT-W/WASHER

#0709

4шт.

10

S037-10305V

BOLT-W/WASHER

#0710

4шт.

11

11LB-50131

PIPE-REDUCER

STD #0709

1шт.

11

11LB-50680

PIPE-REDUCER

LOW NOISE,OPT #0596 - #0709

1шт.

11

11LB-50680

PIPE-REDUCER

STD #0710

1шт.

12

S035-081526

BOLT-W/WASHER

#0328 - #0709

4шт.

12

S035-08152V

BOLT-W/WASHER

#0710

4шт.

13

S037-102556

BOLT-W/WASHER

#0328 - #0709

2шт.

13

S037-10255V

BOLT-W/WASHER

#0710

2шт.

14

S015-080356

BOLT-HEX

#0328 - #0709

1шт.

14

S015-08035V

BOLT-HEX

#0710

1шт.

15

S015-080556

BOLT-HEX

#0328 - #0709

1шт.

15

S015-08055V

BOLT-HEX

#0710

1шт.

16

S441-080006

WASHER-HARDENED

#0328 - #0709

2шт.

16

S441-08000V

WASHER-HARDENED

#0710

2шт.

18

11LB-50320

BRACKET WA-LH

#0710

1шт.

19

11LB-50330

BRACKET WA-RH

#0710

1шт.

20

11LB-88600

MOUNT

#0710

4шт.

21

11LB-50870

INSULATOR

#0710

8шт.

22

11L7-30070

WASHER

#0710

4шт.

23

S205-12100V

NUT-HEX

#0710

8шт.

24

S441-12000V

WASHER-HARDENED

#0710

4шт.

25

11LB-50030

TUBE-FLEX

#0710

1шт.

26

11N6-30050

SEAL CLAMP ASSY

#0710

2шт.

27

11LB-50890

INSULATOR

#0710

1шт.

28

S520-115000

CLAMP-HOSE

#0710 - #0729

1шт.

28

11LB-40310

CLAMP-HOSE

#0730

2шт.
