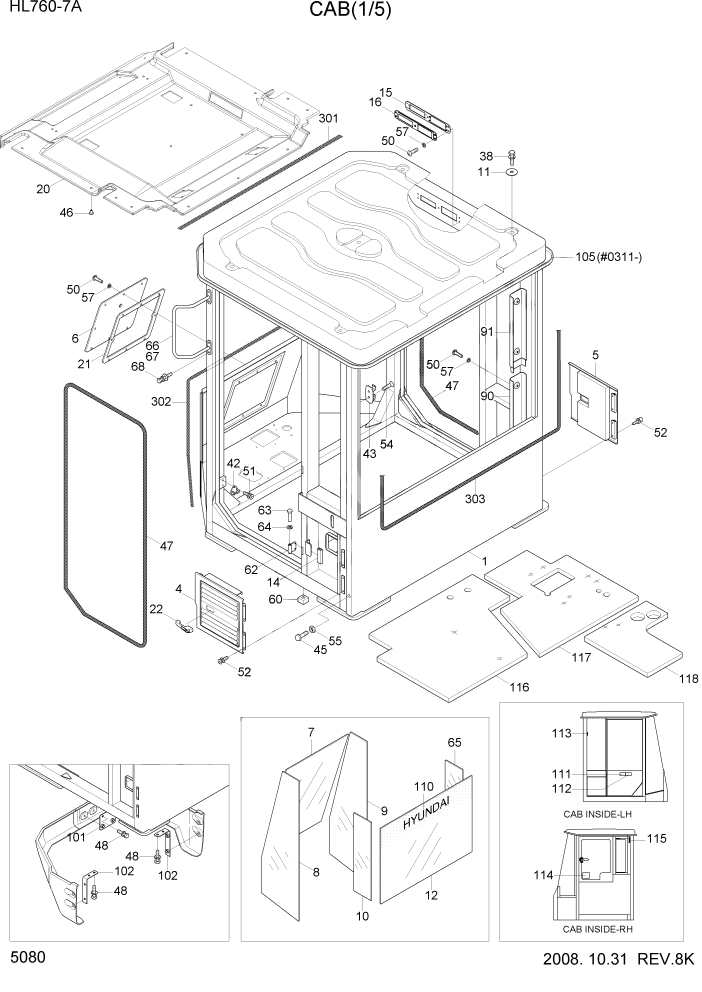

Запчасти Hyundai HL760-7A PAGE 5080 CAB(1/5) СТРУКТУРА

*

71LB-11010

CAB ASSY-FIXED WINDOW

FIXED WINDOW #0174

1шт.

*

71LB-11011

CAB ASSY-FIXED WINDOW

FIXED WINDOW #0175 - #0238

1шт.

*

71LB-11012

CAB ASSY-FIXED WINDOW

FIXED WINDOW #0239 - #0310

1шт.

*

71LB-11013

CAB ASSY-FIXED WINDOW

FIXED WINDOW #0311 - #0355

1шт.

*

71LB-11014

CAB ASSY-FIXED WINDOW

FIXED WINDOW #0356

1шт.

*

71LB-11020

CAB ASSY-SLIDING WIN

SLIDING WINDOW #0174

1шт.

*

71LB-11021

CAB ASSY-SLIDING WIN

SLIDING WINDOW #0175 - #0238

1шт.

*

71LB-11022

CAB ASSY-SLIDING WIN

SLIDING WINDOW #0239 - #0310

1шт.

*

71LB-11023

CAB ASSY-SLIDING WIN

SLIDING WINDOW #0311 - #0355

1шт.

*

71LB-11024

CAB ASSY-SLIDING WIN

SLIDING WINDOW #0356

1шт.

*

71LB-11030

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0174

1шт.

*

71LB-11031

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0175 - #0238

1шт.

*

71LB-11032

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0239 - #0310

1шт.

*

71LB-11033

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0311 - #0355

1шт.

*

71LB-11034

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0356

1шт.

*

71LB-11040

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0174

1шт.

*

71LB-11041

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0175 - #0238

1шт.

*

71LB-11042

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0239 - #0310

1шт.

*

71LB-11043

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0311 - #0355

1шт.

*

71LB-11044

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0356

1шт.

*-1

71LB-11212

CAB SUB ASSY

#0174

1шт.

*-1

71LB-11213

CAB SUB ASSY

#0175 - #0238

1шт.

*-1

71LB-11214

CAB SUB ASSY

#0239 - #0355

1шт.

*-1

71LB-11215

CAB SUB ASSY

#0356

1шт.

1

71LB-12011

CAB WA

#0174

1шт.

1

71LB-12012

CAB WA

#0175 - #0238

1шт.

1

71LB-12013

CAB WA

#0239

1шт.

4

71LB-01041

COVER ASSY-LH

1шт.

5

71LB-01051

COVER ASSY-RH

1шт.

6

71LB-01061

COVER WA-W/MOTOR

1шт.

7

71LB-01071

GLASS-FRONT,CENTER

1шт.

8

71LB-01081

GLASS-FRONT,SIDE,LH

1шт.

9

71LB-01091

GLASS-FRONT,SIDE,RH

1шт.

10

71LB-01101

GLASS-SIDE,LH

1шт.

11

71LB-01110

WASHER-ROOF COVER

#0001

5шт.

12

71LB-01121

GLASS-REAR

1шт.

15

71LB-01151

PLATE WA-CASSETTE

1шт.

16

71LB-01162

COVER-CASSETTE

1шт.

20

71LB-11450

HEADLINING

1шт.

21

71LB-01211

PAD-RUBBER

1шт.

22

71LB-01220

LATCH ASSY

2шт.

38

S017-20020D

BOLT-HEX

5шт.

42

71N6-02770

STRIKER

2шт.

43

71N6-02920

HOOK-COAT

1шт.

45

71EH-13150

RUBBER-BUMPER

4шт.

46

E171-1310

PLUG-HEADLINER

14шт.

47

S771-039500

WEATHER STRIP

2шт.

48

S037-122556

BOLT-W/WASHER

6шт.

50

S161-080206

SCREW-CROSS R/ROUND

20шт.

51

S145-080166

SCREW-FLAT HD

4шт.

52

S132-061656

SCREW-W/WASHER

8шт.

54

S141-040206

SCREW-FLAT HD

2шт.

55

S205-10100B

NUT-HEX

4шт.

57

S403-08200B

WASHER-PLAIN

20шт.

60

71LB-01560

FOAM-SPONGE

1шт.

62

71LB-01600

HINGE

6шт.

63

74L3-05330

PIN-HINGE

6шт.

64

74L3-04450

WASHER-COPPER

6шт.

65

71LB-01681

GLASS-SIDE,RH

1шт.

66

71LB-01692

HANDRAIL WA-LH

1шт.

67

71LB-01702

HANDRAIL WA-RH

1шт.

68

S037-102026

BOLT-W/WASHER

4шт.

90

71LB-20141

COVER-HARNESS(LOW)

1шт.

91

71LB-20151

COVER-HARNESS(UP)

1шт.

101

71LB-04190

PLATE WA-FRONT

1шт.

102

71LB-04200

PLATE WA-SIDE

2шт.

301

71LB-03540

SEAL-FRONT/UP

#0001

1шт.

302

71LB-03550

SEAL-FRONT/LOW

#0001

1шт.

303

71LB-03560

SEAL-REAR

#0001

1шт.

105

71LB-01131

COVER-ROOF

#0311

1шт.

110

91LB-21000

ADHESIVE SUN SCREEN

1шт.

111

91LB-01230

DECAL-MAX H/REACH

1шт.

112

91LB-01240

DECAL-ROLL OVER

1шт.

113

91LB-01340

DECAL-HAMMER

1шт.

114

91N6-07261

ALTERNATE EXIT

1шт.

115

91N6-07290

DECAL-FIRE

1шт.

116

71LB-11261

SPONGE-BOTTOM/LOW(1)

LOW NOISE

1шт.

117

71LB-11271

SPONGE-BOTTOM/LOW(2)

LOW NOISE

1шт.

118

71LB-11281

SPONGE-BOTTOM/LOW(3)

LOW NOISE

1шт.

*-2

@

ELECTRIC CAB ASSY

NOT

1шт.
