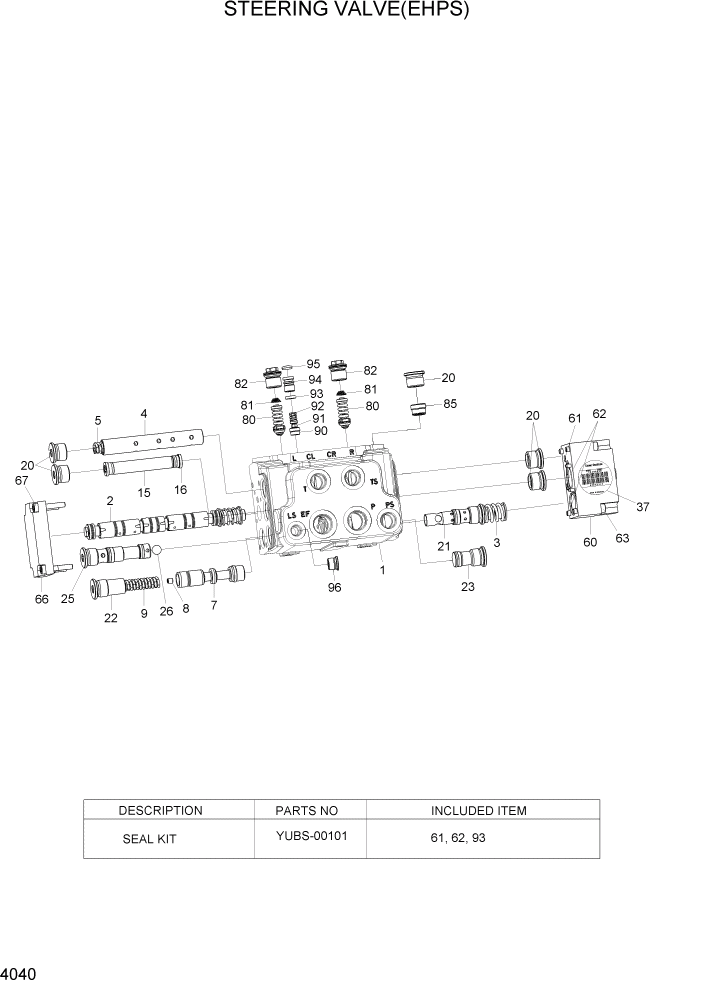

Запчасти Hyundai HL760-7A PAGE 4040 STEERING VALVE(EHPS) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LD-30020

STEERING VALVE(EHPS)

1шт.

N1

YUBS-00069

BLOCK-VALVE

NOT

1шт.

N2

YUBS-00332

SPOOL-W/SPRING,80/8

NOT

1шт.

N3

YUBS-00071

SPOOL-REDUCTION VLV

NOT

1шт.

N4

YUBS-00072

SPOOL-METERING

NOT

1шт.

N5

YUBS-00073

SPRING-COMPRESS

NOT

1шт.

N7

YUBS-00074

SPOOL-DYNAMIC/PP

NOT

1шт.

N8

YUBS-00075

SCREW-THROTTLE

NOT

1шт.

N9

YUBS-00073

SPRING-COMPRESS

NOT

1шт.

N15

YUBS-00076

PIPE WITH O-RING

NOT

1шт.

N16

YUBS-00077

PLUG WITH O-RING-PIPE

NOT

1шт.

N20

YUBS-00078

PLUG WITH O-RING

NOT

5шт.

N21

YUBS-00079

BUSH-REDUCTION VALVE

NOT

1шт.

N22

YUBS-00080

PLUG WITH O-RING-LS

NOT

1шт.

N23

YUBS-00081

PLUG WITH O-RING-PP

NOT

1шт.

N25

YUBS-00082

PLUG W/O-RING-SHUTTLE

NOT

1шт.

N26

YUBS-00083

BALL

NOT

1шт.

N37

YUBS-00084

LABEL

NOT

1шт.

N60

YUBS-00085

COVER-SPRING HSG

NOT

1шт.

NK61

YUBS-00086

O-RING

NOT

1шт.

NK62

YUBS-00087

O-RING

NOT

2шт.

N63

YUBS-00088

SCREW

NOT

4шт.

N66

YUBS-00089

COVER

NOT

1шт.

N67

YUBS-00090

SCREW

NOT

4шт.

N80

YUBS-00091

VALVE-SHOCK

NOT

1шт.

N81

YUBS-00092

SPRING-CONICALLY

NOT

1шт.

N82

YUBS-00093

PLUG WITH O-RING

NOT

1шт.

N85

YUBS-00094

VALVE-CHECK

NOT

1шт.

N90

YUBS-00095

SEAT-VALVE

NOT

1шт.

N91

YUBS-00096

CONE-PILOT

NOT

1шт.

N92

YUBS-00097

SPRING

NOT

1шт.

NK93

YUBS-00098

O-RING

NOT

1шт.

N94

YUBS-00099

SCREW-AJUSTMENT

NOT

1шт.

N95

YUBS-00100

PLUG

NOT

1шт.

N96

YUBS-00111

PLUG

NOT

1шт.

K

YUBS-00101

SEAL KIT(61,62,93)

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
