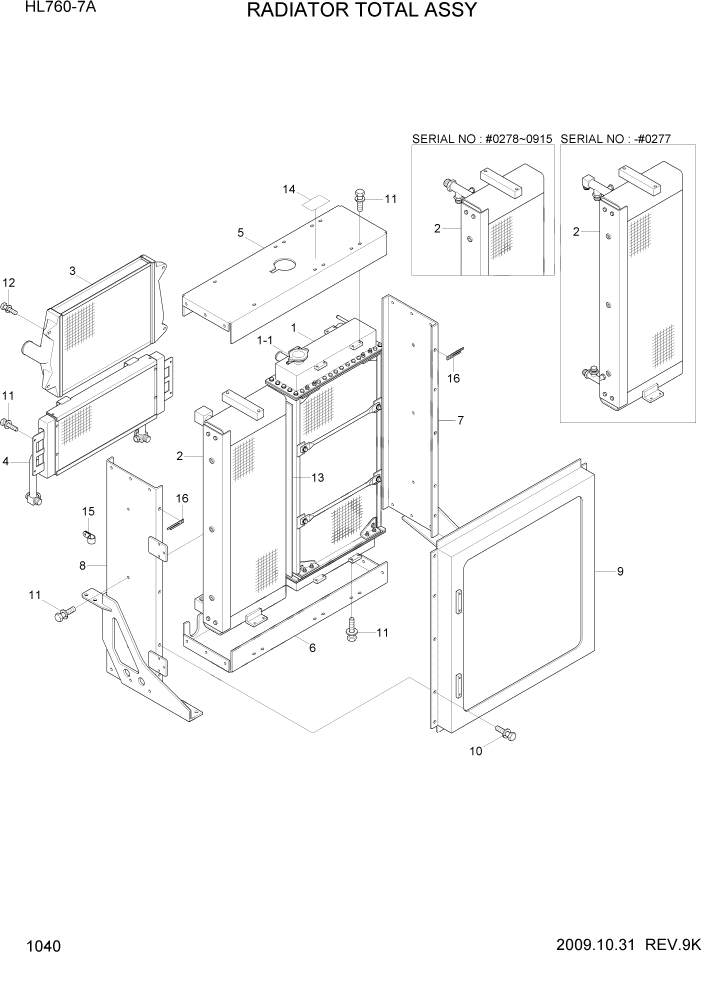

Запчасти Hyundai HL760-7A PAGE 1040 RADIATOR TOTAL ASSY СИСТЕМА ДВИГАТЕЛЯ

*

11LC-30341

RAD TOTAL COMPLETE

#0280

1шт.

*

11LC-30343

RAD TOTAL COMPLETE

#0281 - #0915

1шт.

*

11LC-30344

RAD TOTAL COMPLETE

#0916 - #1102

1шт.

*

11LC-30345

RAD TOTAL COMPLETE

#1103

1шт.

1

11LC-30410

RADIATOR ASSY

#0154

1шт.

1

11LC-30411

RADIATOR ASSY

#0155 - #1102

1шт.

1

11LC-30412

RADIATOR ASSY

#1103

1шт.

1-1

12101830

CAP ASSY

1шт.

2

11LC-30042

T/M COOLER ASSY

#0280

1шт.

2

11LC-30043

T/M COOLER ASSY

#0281 - #1102

1шт.

2

11LC-30220

SUPPORT-LOWER

#1103

1шт.

3

11LC-30051

CHARGED AIR COOLER

1шт.

4

11LC-30421

HYD OIL COOLER ASSY

#0915

1шт.

4

11LC-30422

HYD OIL COOLER ASSY

#0916 - #1102

1шт.

4

11LC-30423

HYD OIL COOLER ASSY

#1103

1шт.

5

11LC-30211

SUPPORT-UPPER

#0915

1шт.

5

11LC-30801

SUPPORT-UPPER

#0916 - #1102

1шт.

5

11LC-30802

SUPPORT-UPPER

#1103

1шт.

6

11LC-30440

SUPPORT-LOWER

#1102

1шт.

6

11LC-30441

SUPPORT-LOWER

#1103

1шт.

7

11LC-30241

SUPPORT-RH,SIDE

#0915

1шт.

7

11LC-30820

SIDE SUPPORT-RH

#0916 - #1102

1шт.

7

11LC-30821

SIDE SPPORT WA-RH

#1103

1шт.

8

11LC-30231

SUPPORT-LH,SIDE

#0915

1шт.

8

11LC-30810

SIDE SUPPORT-LH

#0916 - #1102

1шт.

8

11LC-30811

SIDE SUPPORT ASSY-LH

#1103

1шт.

9

11LC-30251

SHROUD WA

1шт.

10

9008160

BOLT-ASM

10шт.

11

91010251

BOLT-ASM

44шт.

12

91010451

BOLT-ASM

4шт.

13

45505690

PACKING

1шт.

N14

45117330

NAME PLATE

NOT

1шт.

15

45601710

CLIP-HOSE

4шт.

16

45603670

CLIP-HARNESS

6шт.
