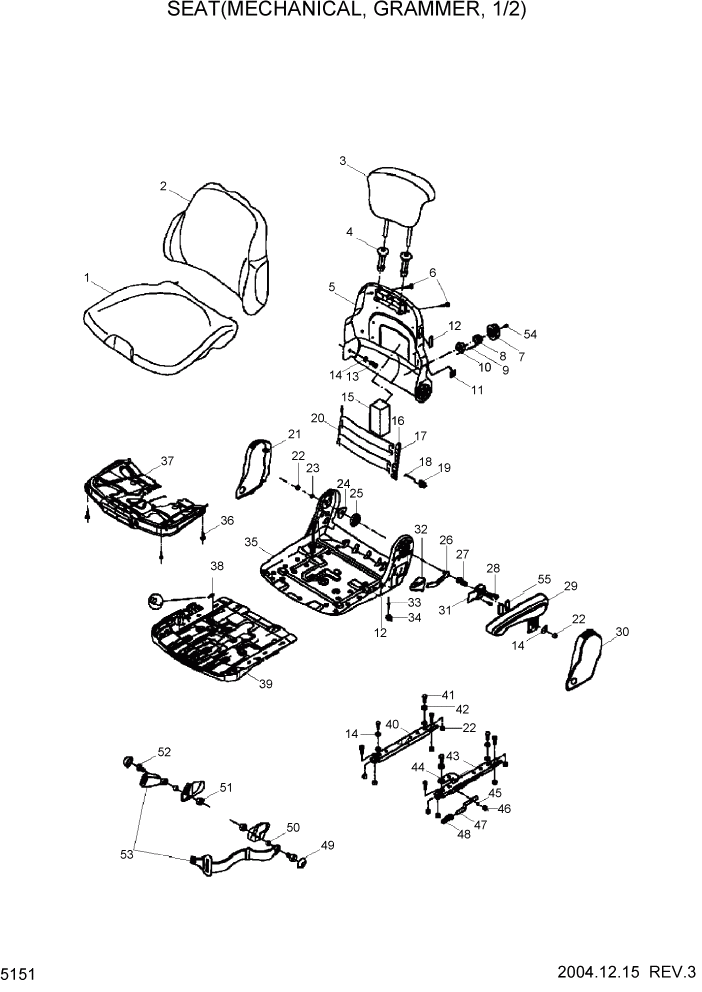

Запчасти Hyundai HL760-7 PAGE 5151 SEAT(MECHANICAL, GRAMMER, 1/2) СТРУКТУРА

*

71LB-32020

SEAT ASSY-3",MECHENICAL

OPT #0394

1шт.

1

ZGBH-00001

SEAT CUSHION

1шт.

2

ZGBH-00002

BACKREST CUSHION

1шт.

3

ZGBH-00009

HEADREST

1шт.

4

ZGBH-00004

BUSH

2шт.

5

ZGBH-00005

BACKREST PLATE

1шт.

6

ZGBH-00103

SCREW-SELF TAPPING

4шт.

7

ZGBH-00007

HANDLE

1шт.

8

ZGBH-00008

WHEEL-TOOLHEAD

1шт.

9

ZGBH-00010

RIVET-BLIND

3шт.

10

ZGBH-00011

BRAKE-SLING SPRING

1шт.

11

ZGBH-00012

STICKER

1шт.

12

ZGBH-00013

COVER-PLASTICK

1шт.

13

ZGBH-00014

SCREW-HEX HEAD

1шт.

14

ZGBH-00015

WASHER

13шт.

15

ZGBH-00016

SPONGE

1шт.

16

ZGBH-00017

WINKEL

1шт.

17

ZGBH-00018

RIVET

3шт.

18

ZGBH-00019

RODS

1шт.

19

ZGBH-00020

CARRIER

1шт.

20

ZGBH-00021

PLATE

2шт.

21

ZGBH-00022

COVER-RH

1шт.

22

ZGBH-00023

HEX NUT-BLACK

10шт.

23

ZGBH-00024

WASHER-BLACK

1шт.

24

ZGBH-00025

SPRING HOLDER

1шт.

25

ZGBH-00026

SPRING-LEG

1шт.

26

ZGBH-00027

LEVER

1шт.

27

ZGBH-00028

SCREW

1шт.

28

ZGBH-00029

SCREW

3шт.

29

ZGBH-00030

ARMREST-LH

1шт.

30

ZGBH-00031

COVER-LH

1шт.

31

ZGBH-00032

PLATE

1шт.

32

ZGBH-00033

HANDLE

1шт.

33

ZGBH-00034

RIVET

4шт.

34

ZGBH-00035

PROFILE-GLIDING

4шт.

35

ZGBH-00036

SEAT PLATE

1шт.

36

ZGBH-00037

SCREW-SELF TAPPING

4шт.

37

ZGBH-00038

ADJUSTMENT-TILTING

1шт.

38

ZGBH-00039

SPRING

1шт.

39

ZGBH-00040

ADJUSTMENT-SEAT DEPTH

1шт.

40

ZGBH-00041

SLIDE RAIL-RH

1шт.

41

ZGBH-00042

SCREW-HEX HEAD

4шт.

42

ZGBH-00043

SCREW-CYLINDRIC HEAD

4шт.

43

ZGBH-00044

ROLLING RAIL-LH

1шт.

44

ZGBH-00045

BRACKET

1шт.

45

ZGBH-00046

WASHER

1шт.

46

ZGBH-00047

NUT

1шт.

47

ZGBH-00048

HANDLE

1шт.

48

ZGBH-00049

KNOB-PLASTIC

1шт.

49

ZGBH-00050

COVER

2шт.

50

ZGBH-00051

BUSH

2шт.

51

ZGBH-00052

NUT

2шт.

52

ZGBH-00053

SCREW

2шт.

53

ZGBH-00102

SEAT BELT

2шт.

54

ZGBH-00055

SCREW

1шт.

55

ZGBH-00056

PLATE-RUBBER

1шт.
