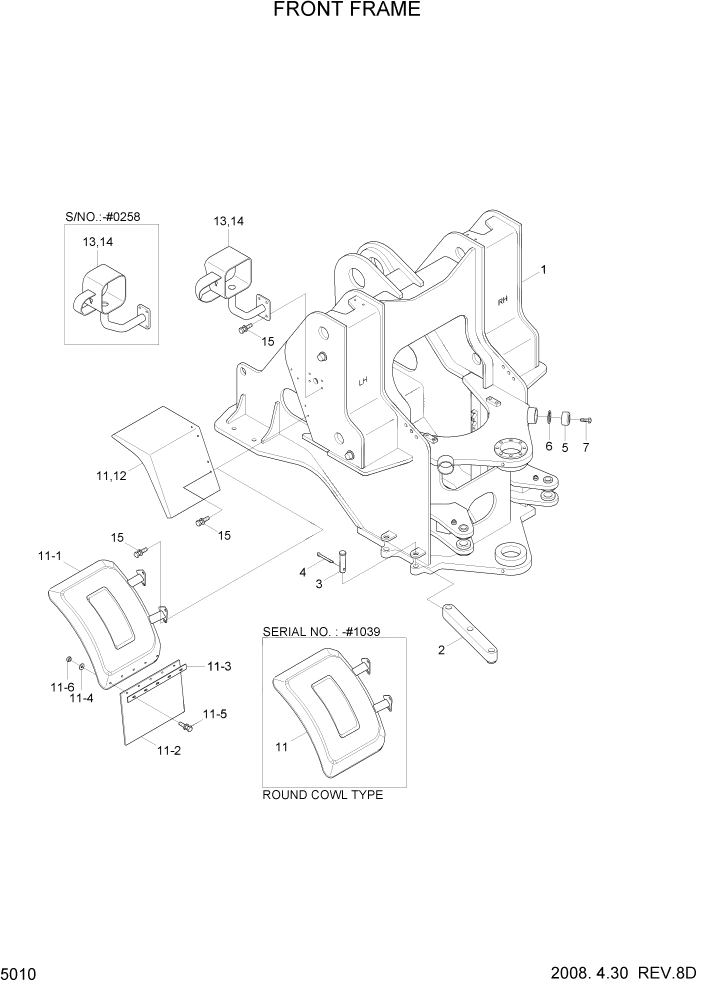

Запчасти Hyundai HL760-7 PAGE 5010 FRONT FRAME СТРУКТУРА

1

41LC-00011

FRONT FRAME WA

SQUARE COWL #0225

1шт.

1

43LC-00010

FRONT FRAME WA

ROUND COWL TYPE #0226 - #1277

1шт.

1

43LC-00011

FRONT FRAME WA

ROUND COWL TYPE #1278

1шт.

2

41LB-09010

BAR

1шт.

3

41LB-09020

PIN-CLEVIS

2шт.

4

41L1-1074

PIN

2шт.

5

44L1-00401

STOPPER

2шт.

6

44L1-00410

SHIM(3.0T)

2шт.

7

S017-200452

BOLT-HEX

2шт.

11

71LC-72021

FENDER WA-FRONT

ROUND COWL TYPE #0226 - #1039

2шт.

11

71LC-72050

FENDER ASSY-LH

ROUND COWL TYPE #1040

1шт.

11

71LC-72060

FENDER ASSY-RH

ROUND COWL TYPE #1040

1шт.

11-1

71LC-72070

FENDER WA-LH

ROUND COWL TYPE #1040

1шт.

11-1

71LC-72080

FENDER WA-RH

ROUND COWL TYPE #1040

1шт.

11-2

71LC-72170

RUBBER-FENDER

ROUND COWL TYPE #1040

1шт.

11-3

71LC-72180

PLATE

ROUND COWL TYPE #1040

1шт.

11-4

71LB-72130

WASHER-WIDE

ROUND COWL TYPE #1040

5шт.

11-5

S037-122556

BOLT-W/WASHER

ROUND COWL TYPE #1040

5шт.

11-6

S205-121006

NUT-HEX

ROUND COWL TYPE #1040

5шт.

11

71LC-70010

FENDER WA-LH,FR

SQUARE COWL

1шт.

12

71LC-70020

FENDER WA-RH,FR

SQUARE COWL

1шт.

13

71LD-70050

LAMP BOX WA-LH

#0258

1шт.

13

71LC-72030

LAMP BOX WA-LH

#0259

1шт.

13

71LD-70090

LAMP BOX WA-LH

#0049 - #0258

1шт.

14

71LD-70060

LAMP BOX WA-RH

#0258

1шт.

14

71LC-72040

LAMP BOX WA-RH

#0259

1шт.

14

71LD-70100

LAMP BOX WA-RH

#0049 - #0258

1шт.

15

S037-123052

BOLT-W/WASHER

16шт.
