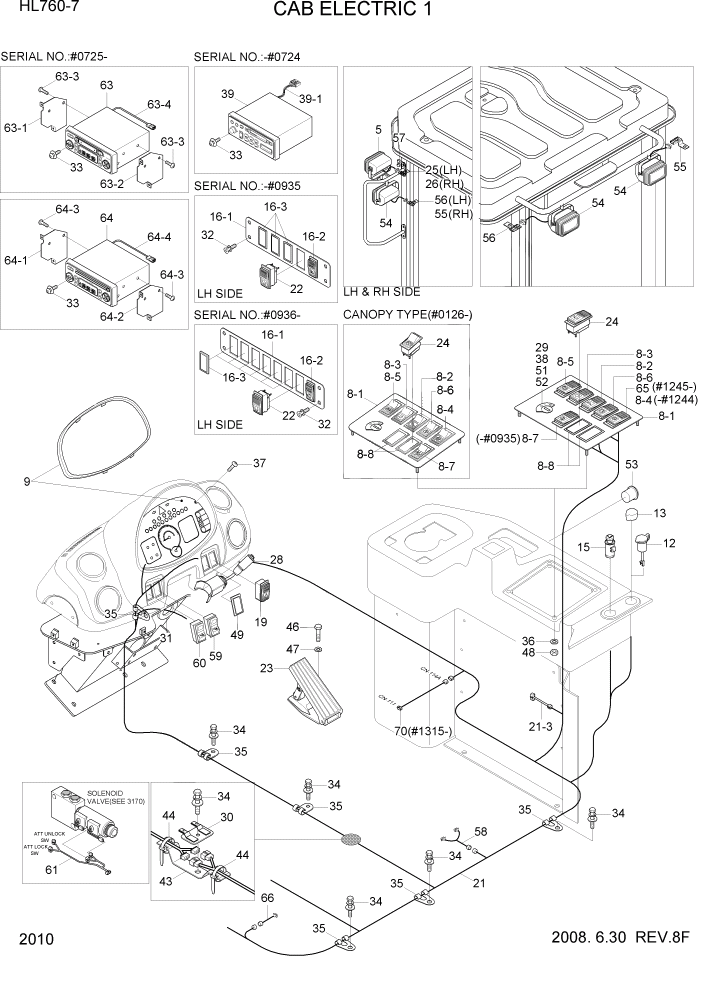

Запчасти Hyundai HL760-7 PAGE 2010 CAB ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

5

21N6-20211

WORK LAMP ASSY

2шт.

5-1

S866-240650

BULB

NOT SHOWN

1шт.

8

21LB-20210

SWITCH BOARD ASSY

CAB TYPE #1244

1шт.

8

21LB-20211

SWITCH BOARD ASSY

CAB TYPE #1245

1шт.

8

21LD-80210

SWITCH BOARD ASSY

CANOPY TYPE #0126

1шт.

8-1

21LB-20350

PLATE-SWITCH BOARD

1шт.

8-2

21LB-40250

SWITCH-WORK LAMP

CAB TYPE

1шт.

8-2

21L8-30420

SWITCH-REAR LAMP

CANOPY TYPE #0126

1шт.

8-3

21LB-40240

SWITCH-MAIN LIGHT

CAB TYPE

1шт.

8-3

21L7-03090

SWITCH-MAIN LIGHT

CANOPY TYPE #0126

1шт.

8-4

21LB-40270

SWITCH-CLUTCH CUT-OFF

CAB TYPE #1244

1шт.

8-4

21E6-30560

SWITCH-INCHING

CANOPY TYPE #0126

1шт.

8-5

21LB-40230

SWITCH-PARKING

CAB TYPE

1шт.

8-5

21E6-30510

SWITCH-PARKING

CANOPY TYPE #0126

1шт.

8-6

21LB-40260

SWITCH-AUTO SELECT

CAB TYPE

1шт.

8-6

21L7-03150

SWITCH-FULL AUTOMATIC

CANOPY TYPE #0126

1шт.

8-7

21LB-40280

SW-RR WIPER/WASHER

CAB TYPE

1шт.

8-7

21E6-30490

SWITCH-BUZZER STOP

CANOPY TYPE #0126

1шт.

8-8

21E6-10460

COVER

CAB TYPE #0935

2шт.

8-8

21E6-10460

COVER

CAB TYPE #0936

3шт.

8-8

21E6-10460

COVER

CANOPY TYPE

2шт.

9

21LB-50011

CLUSTER ASSY

#1032

1шт.

9

21LB-50012

CLUSTER ASSY

#1033

1шт.

12

21N8-20010

SOCKET-12V

OPT

1шт.

13

S661-260300

CAP-RUBBER

STD

1шт.

15

21E4-0008

LIGHTER-CIGAR

1шт.

16

21LB-40120

SWITCH ASSY

#0935

1шт.

16

21LB-41110

SWITCH ASSY

#0936

1шт.

16-1

21LB-40090

COVER-PLATE

#0935

1шт.

16-1

21LB-34240

COVER-PLATE

#0936

1шт.

16-2

21LB-40290

SWITCH-BUZZER STOP

1шт.

16-3

21E6-10460

COVER

#0935

4шт.

16-3

21E6-10460

COVER

#0936

7шт.

19

21LB-40140

SWITCH-HAZARD

CAB TYPE

1шт.

19

21E6-30570

SWITCH-HAZARD

CANOPY TYPE #0126

1шт.

21

21LC-10013

HARNESS-MAIN

CAB TYPE #0012

1шт.

21

21LC-10014

HARNESS-MAIN

CAB TYPE #0013 - #0646

1шт.

21

21LC-10015

HARNESS-MAIN

CAB TYPE #0647 - #1001

1шт.

21

21LC-10016

HARNESS-MAIN

CAB TYPE #1002 - #1041

1шт.

21

21LC-10017

HARNESS-MAIN

CAB TYPE #1042 - #1244

1шт.

21

21LC-10018

HARNESS-MAIN

CAB TYPE #1245

1шт.

21-3

21LG-10150

HARNESS-PLUG

CAB TYPE #1245

1шт.

21

21LB-80010

HARNESS-MAIN

CANOPY TYPE #0126

1шт.

22

21LB-40300

SWITCH-BEACON

OPT

1шт.

23

21L6-03600

PEDAL-ELECTRONIC

1шт.

R24

21LB-40210

SWITCH-RIDE CONTROL

CAB, SEE 3160

1шт.

R24

21L8-01340

SWITCH-RIDE CONTROL

CANOPY TYPE #0126

1шт.

25

25D1-10650

CLIP ASSY

1шт.

26

25D1-10640

CLIP ASSY

1шт.

29

21N4-10430

SWITCH ASSY-INCL KEY

KOREA/CHINA

1шт.

29-1

21N4-10430K100

KEY-START

NOT SHOWN #0001

1шт.

30

21LB-10110

PLATE-CONNECTOR

1шт.

31

S681-290400

GROMMET

1шт.

32

S131-061546

SCREW-W/WASHER

2шт.

33

S131-051546

SCREW-W/WASHER

4шт.

34

S035-082022

BOLT-W/WASHER

8шт.

35

S593-000902

CLIP-HARNESS

7шт.

36

S401-062006

WASHER-PLAIN

6шт.

37

S161-050206

SCREW-CROSS R/ROUND

4шт.

38

21LB-40151

DECAL-START KEY

1шт.

39

21E9-20310

CASSETTE RADIO

U.S.A #0724

1шт.

39

21E9-20320

CASSETTE RADIO

EUROPE #0724

1шт.

39

21E9-20330

CASSETTE RADIO

GENERAL #0724

1шт.

39

21E9-20340

CASSETTE RADIO

KOREA #0724

1шт.

39-1

E2004050700C

CONN-A,H818HHD/HHU

#0724

1шт.

43

21L7-20350

PLATE

1шт.

44

S552-050203

CLAMP-BAND

2шт.

46

S017-080452

BOLT-HEX

2шт.

47

S411-080002

WASHER-SPRING

2шт.

48

S201-061002

NUT-HEX

4шт.

49

21E6-10460

COVER

3шт.

51

21N4-10400

SWITCH ASSY-INCL KEY

EXPORT #0013

1шт.

51-1

21N4-10400K

KEY-START

NOT SHOWN #0013

1шт.

53

21N4-11070

HOUR METER ASSY

OPT #0013

1шт.

54

21N6-20211

WORK LAMP ASSY

OPT #0013

4шт.

54-1

S866-240650

BULB

NOT SHOWN #0013

1шт.

55

25D1-10650

CLIP ASSY

OPT #0013

2шт.

56

25D1-10640

CLIP ASSY

OPT #0013

2шт.

57

S593-001302

CLIP-HARNESS

#0064

2шт.

58

21LC-60120

EXT HARNESS(SEAT)

OPT #0056 - #0835

1шт.

59

21L7-03160

SWITCH-ATTACH LOCK

Q/COUPLER #0965

1шт.

60

21L7-03170

SWITCH-ATTACH UNLOCK

Q/COUPLER #0965

1шт.

61

21LB-41010

EXT-HARNESS(COUPLER)

Q/COUPLER #0965

1шт.

63

21N8-50020

CASSETTE RADIO ASSY

STD #0725 - #1356

1шт.

63

21N8-50060

CASSETTE RADIO ASSY

STD #1357

1шт.

63-1

21N6-10470

BRACKET-LH

#0725

1шт.

63-2

21N6-10460

BRACKET-RH

#0725

1шт.

63-3

S141-050102

SCREW-FLAT HD

#0725

4шт.

63-4

21N8-01620

HARNESS-WIRE,EXT

#0725

1шт.

64

21N8-40600

CD PLAYER ASSY

OPT #0725

1шт.

64-1

21N6-10470

BRACKET-LH

#0725

1шт.

64-2

21N6-10460

BRACKET-RH

#0725

1шт.

64-3

S141-050102

SCREW-FLAT HD

#0725

4шт.

64-4

21N8-01620

HARNESS-WIRE,EXT

#0725

1шт.

65

21LB-40270

SWITCH-CLUTCH CUT-OFF

#1245

1шт.

66

21LG-10160

HARNESS-PLUG

DUAL PEDAL #1245

1шт.

70

21LH-30180

HARNESS-EXT

#1315

1шт.
