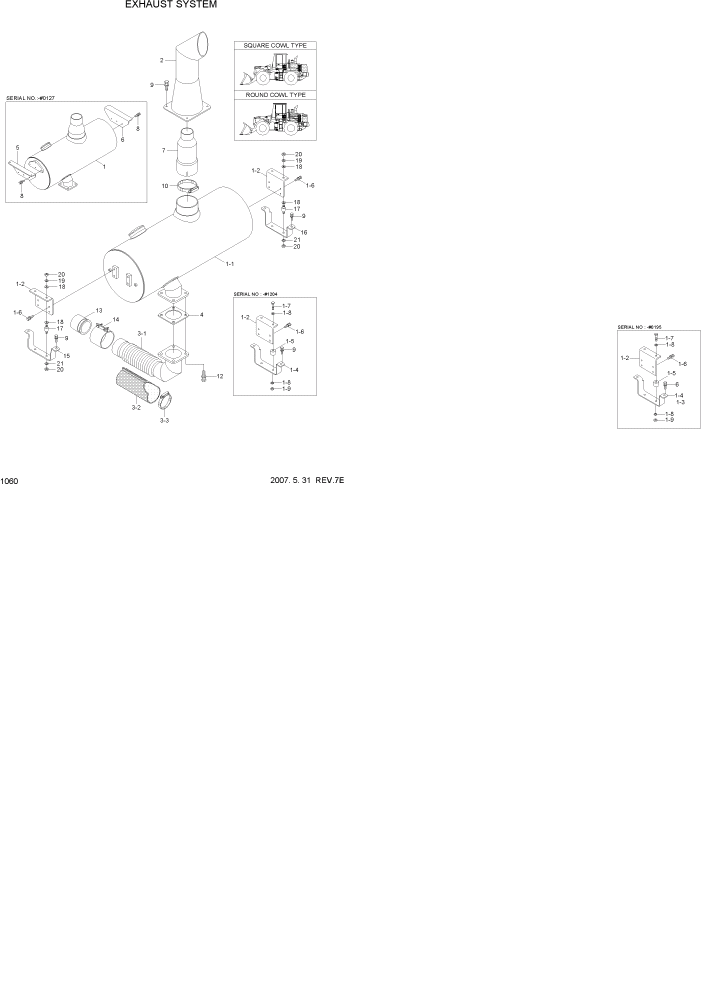

Запчасти Hyundai HL760-7 PAGE 1060 EXHAUST SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11LC-50030

MUFFLER WA

#0127

1шт.

1

11LC-50070

MUFFLER ASSY

STD #0128 - #0883

1шт.

1

11LC-50071

MUFFLER ASSY

STD #0884 - #1204

1шт.

1

11LC-50072

MUFFLER ASSY

STD #1205

1шт.

1

11LC-50430

MUFFLER ASSY

LOW NOISE #0699 - #0883

1шт.

1

11LC-50431

MUFFLER ASSY

LOW NOISE #0884 - #1204

1шт.

1

11LC-50432

MUFFLER ASSY

LOW NOISE #1205

1шт.

1-1

11LC-50080

MUFFLER ASSY

STD #0128 - #0883

1шт.

1-1

11LC-50081

MUFFLER ASSY

STD #0884

1шт.

1-1

11LC-50440

MUFFLER SUB ASSY

LOW NOISE #0699 - #0883

1шт.

1-1

11LC-50441

MUFFLER SUB ASSY

LOW NOISE #0884

1шт.

1-2

11LB-50041

BRACKET

#0128 - #1204

2шт.

1-2

11LB-50860

BRACKET

#1205

2шт.

1-3

11LB-50240

BRACKET WA-LH

#0128 - #1204

1шт.

1-4

11LB-50250

BRACKET WA-RH

#0128 - #1204

1шт.

1-5

11LB-50160

SPACER

#0128 - #1204

4шт.

1-6

S037-122556

BOLT-W/WASHER

#0128

8шт.

1-7

S017-120652

BOLT-HEX

#0128 - #1204

4шт.

1-8

S441-120002

WASHER-HARDENED

#0128 - #1204

8шт.

1-9

S207-121002

NUT-HEX

#0128 - #1204

4шт.

2

11LB-50090

PIPE WA-TAIL

1шт.

3

11LD-50030

PIPE WA

SQUARE COWL #0127

1шт.

3

11LD-50031

BELLOWS PIPE ASSY

SQUARE COWL #0128

1шт.

3

11LC-50140

BELLOWS PIPE ASSY

ROUND COWL TYPE #0226 - #1204

1шт.

3

11LC-50141

BELLOWS PIPE ASSY

ROUND COWL TYPE #1205

1шт.

3-1

11LD-50150

PIPE WA

SQUARE COWL #0128

1шт.

3-1

11LC-50150

PIPE WA

ROUND COWL TYPE #0226 - #1204

1шт.

3-1

11LC-50151

PIPE WA

ROUND COWL TYPE #1205

1шт.

3-2

11LD-50160

INSULATOR

#0128 - #1204

1шт.

3-2

11LD-50161

INSULATOR

#1205

1шт.

3-3

S520-090000

CLAMP-HOSE

#0128

1шт.

4

14L3-00220

GASKET

1шт.

5

11LC-50040

BRACKET-LH

#0127

1шт.

6

11LC-50050

BRACKET-RH

#0127

1шт.

7

11LC-50130

PIPE-REDUCER

#0128 - #0762

1шт.

7

11LC-50460

PIPE-REDUCER

#0763

1шт.

8

S037-122552

BOLT-W/WASHER

#0127

8шт.

9

S037-123052

BOLT-W/WASHER

#0883

8шт.

9

S037-123056

BOLT-W/WASHER

#0884

8шт.

10

11EH-32080

CLAMP-EXHAUST PIPE

#0128

1шт.

12

S037-102552

BOLT-W/WASHER

#0883

4шт.

12

S037-103056

BOLT-W/WASHER

#0884

4шт.

13

11LD-50290

PIPE WA-EXHAUST

#1205

1шт.

14

11N6-30040

SEAL CLAMP ASSY

#1205

1шт.

15

11LB-50320

BRACKET WA-LH

#1205

1шт.

16

11LB-50330

BRACKET WA-RH

#1205

1шт.

17

11LB-88600

MOUNT

#1205

4шт.

18

11LB-50870

INSULATOR

#1205

8шт.

19

11L7-30070

WASHER

#1205

4шт.

20

S205-12100B

NUT-HEX

#1205

8шт.

21

S441-12000B

WASHER-HARDENED

#1205

4шт.
