Запчасти Hyundai HL760-7 PAGE 6010 WHEEL RIM & TIRE СИЛОВАЯ СИСТЕМА

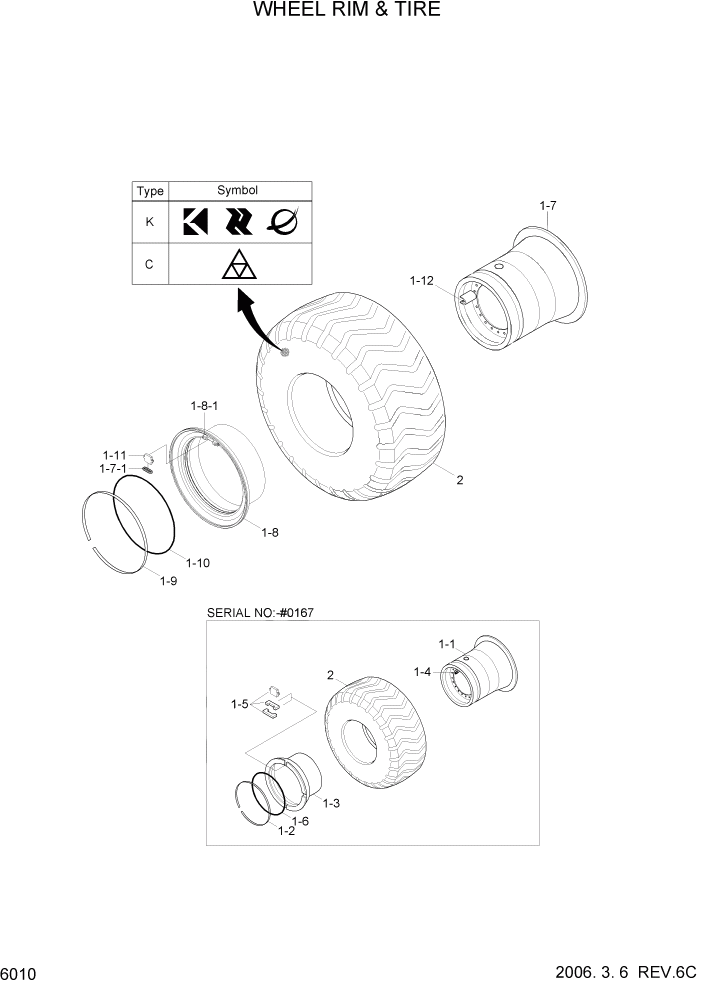

Схема запчастей Hyundai HL760-7 - PAGE 6010 WHEEL RIM & TIRE СИЛОВАЯ СИСТЕМА

Артикул

Название

Примечание

Количество

*

81LC-40010

WHEEL & TIRE ASSY

K TYPE

4шт.

*

81LC-41000

WHEEL & TIRE ASSY

C TYPE #0443

4шт.

1

81LC-00010

WHEEL RIM ASSY

#0167

1шт.

1

81LC-40050

WHEEL RIM ASSY

#0168

1шт.

1-1

ZDAB-00011

RIM BASE

#0167

1шт.

1-2

ZDAB-00002

RING-LOCK

#0167

1шт.

1-3

ZDAB-00012

FLANGE-SIDE

#0167

1шт.

1-4

ZDAB-00006

VALVE-AIR

#0167

1шт.

1-5

ZDAB-00009

DRIVER

#0167

1шт.

1-6

ZDAB-00010

O-RING

#0167

1шт.

1-7

XIAA-00006

RIM BASE

#0168

1шт.

1-7-1

XIAA-00009

DRIVER POCKET

#0168

1шт.

1-8

XIAA-00008

FLANGE-DETACHABLE

#0168

1шт.

1-8-1

XIAA-00010

DRIVER POCKET

#0168

1шт.

1-9

XIAA-00007

RING-LOCK

#0168

1шт.

1-1

XIAA-00021

O-RING

#0168

1шт.

1-11

XIAA-00011

DRIVER KEY

#0168

1шт.

1-12

XIAA-00022

VALVE-AIR

#0168

1шт.

2

81L1-3105

TIRE(23.5-25,20PR,L3)

K TYPE

1шт.

2

81L1-3105C

TIRE(23.5-25,20PR,L3)

C TYPE #0443

1шт.

*

81LC-40020

WHEEL & TIRE ASSY

OPT #0001

4шт.

1

81LC-00010

WHEEL RIM ASSY

#0167

1шт.

1

81LC-40050

WHEEL RIM ASSY

#0168

1шт.

1-1

ZDAB-00011

RIM BASE

#0167

1шт.

1-2

ZDAB-00002

RING-LOCK

#0167

1шт.

1-3

ZDAB-00012

FLANGE-SIDE

#0167

1шт.

1-4

ZDAB-00006

VALVE-AIR

#0167

1шт.

1-5

ZDAB-00009

DRIVER

#0167

1шт.

1-6

ZDAB-00010

O-RING

#0167

1шт.

1-7

XIAA-00006

RIM BASE

#0168

1шт.

1-7-1

XIAA-00009

DRIVER POCKET

#0168

1шт.

1-8

XIAA-00008

FLANGE-DETACHABLE

#0168

1шт.

1-8-1

XIAA-00010

DRIVER POCKET

#0168

1шт.

1-9

XIAA-00007

RING-LOCK

#0168

1шт.

1-1

XIAA-00021

O-RING

#0168

1шт.

1-11

XIAA-00011

DRIVER KEY

#0168

1шт.

1-12

XIAA-00022

VALVE-AIR

#0168

1шт.

2

82L1-1010

TIRE(MICHELIN)

1шт.

*

81LC-40030

WHEEL & TIRE ASSY

OPT #0001

4шт.

1

81LC-00020

WHEEL RIM ASSY

#0167

1шт.

1

81LC-40060

WHEEL RIM ASSY

#0168

1шт.

1-1

ZDAB-00013

RIM BASE

#0167

1шт.

1-2

ZDAB-00014

FLANGE-SIDE

#0167

1шт.

1-3

ZDAB-00015

RING-LOCK

#0167

1шт.

1-4

ZDAB-00006

VALVE-AIR

#0167

1шт.

1-6

ZDAB-00016

O-RING

#0167

1шт.

1-7

XIAA-00012

RIM BASE

#0168

1шт.

1-8

XIAA-00005

FLANGE-DETACHABLE

#0168

1шт.

1-9

XIAA-00002

RING-LOCK

#0168

1шт.

1-1

XIAA-00020

O-RING

#0168

1шт.

1-12

XIAA-00022

VALVE-AIR

#0168

1шт.

2

81L2-3104

TIRE(20.5-25 16PR,L3)

1шт.

*

81LC-40040

WHEEL & TIRE ASSY

OPT #0001

4шт.

1

81LC-00010

WHEEL RIM ASSY

#0167

1шт.

1

81LC-40050

WHEEL RIM ASSY

#0168

1шт.

1-1

ZDAB-00011

RIM BASE

#0167

1шт.

1-2

ZDAB-00002

RING-LOCK

#0167

1шт.

1-3

ZDAB-00012

FLANGE-SIDE

#0167

1шт.

1-4

ZDAB-00006

VALVE-AIR

#0167

1шт.

1-5

ZDAB-00009

DRIVER

#0167

1шт.

1-6

ZDAB-00010

O-RING

#0167

1шт.

1-7

XIAA-00006

RIM BASE

#0168

1шт.

1-7-1

XIAA-00009

DRIVER POCKET

#0168

1шт.

1-8

XIAA-00008

FLANGE-DETACHABLE

#0168

1шт.

1-8-1

XIAA-00010

DRIVER POCKET

#0168

1шт.

1-9

XIAA-00007

RING-LOCK

#0168

1шт.

1-1

XIAA-00021

O-RING

#0168

1шт.

1-11

XIAA-00011

DRIVER KEY

#0168

1шт.

1-12

XIAA-00022

VALVE-AIR

#0168

1шт.

2

84L4-00130

TIRE(23.5-25 20PR L-5)

1шт.

*

81LC-41010

WHEEL & TIRE ASSY

OPT,C TYPE #0443

1шт.

1

81LC-40060

WHEEL RIM ASSY

#0443

1шт.

1-7

XIAA-00012

RIM BASE

#0443

1шт.

1-8

XIAA-00005

FLANGE-DETACHABLE

#0443

1шт.

1-9

XIAA-00002

RING-LOCK

#0443

1шт.

1-1

XIAA-00020

O-RING

#0443

1шт.

1-12

XIAA-00022

VALVE-AIR

#0443

1шт.

2

81L2-3104C

TIRE ASSY

C TYPE #0443

1шт.

Выбрано товаров: 78
