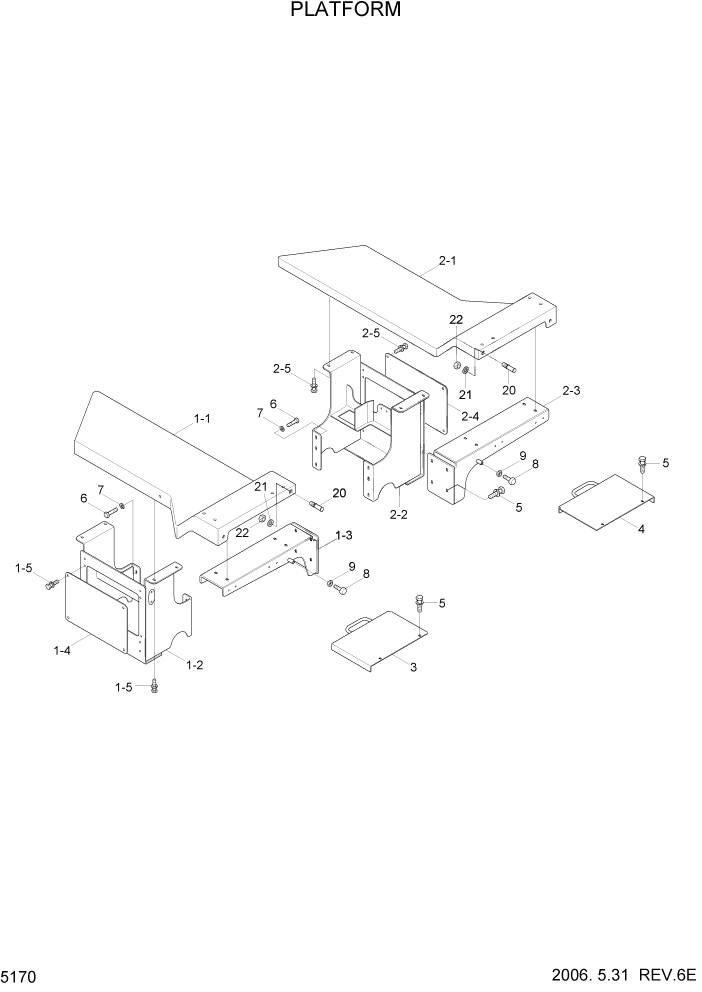

Запчасти Hyundai HL760-7 PAGE 5170 PLATFORM СТРУКТУРА

1

71LC-50410

PLATFORM ASSY-LH

#0895

1шт.

1

71LC-50411

PLATFORM ASSY-LH

#0896

1шт.

1-1

71LC-50431

COVER WA-LH

1шт.

1-2

71LC-50451

SUPPORT WA-LH

#0895

1шт.

1-2

71LC-50452

SUPPORT WA-LH

#0896

1шт.

1-3

71LC-50471

SUPPORT WA-LH

1шт.

1-4

71LC-50491

COVER-SIDE

1шт.

1-5

S037-123052

BOLT-W/WASHER

8шт.

1-6

S037-122552

BOLT-W/WASHER

4шт.

2

71LC-50420

PLATFORM ASSY-RH

1шт.

2-1

71LC-50441

COVER WA-RH

1шт.

2-2

71LC-50461

SUPPORT WA-RH

1шт.

2-3

71LC-50481

SUPPORT WA-RH

1шт.

2-4

71LC-50491

COVER-SIDE

1шт.

2-5

S037-123052

BOLT-W/WASHER

8шт.

2-6

S037-122552

BOLT-W/WASHER

4шт.

3

71LD-50031

COVER WA-LH

1шт.

4

71LD-50041

COVER WA-RH

1шт.

5

S037-123052

BOLT-W/WASHER

16шт.

6

S017-160302

BOLT-HEX

12шт.

7

S441-160002

WASHER-HARDENED

12шт.

8

71EH-13150

BUMPER-RUBBER

2шт.

9

S285-101002

NUT-FLANGED

2шт.

20

71LD-80180

STRIKER

2шт.

21

S441-160002

WASHER-HARDENED

2шт.

22

S205-161002

NUT-HEX

2шт.
