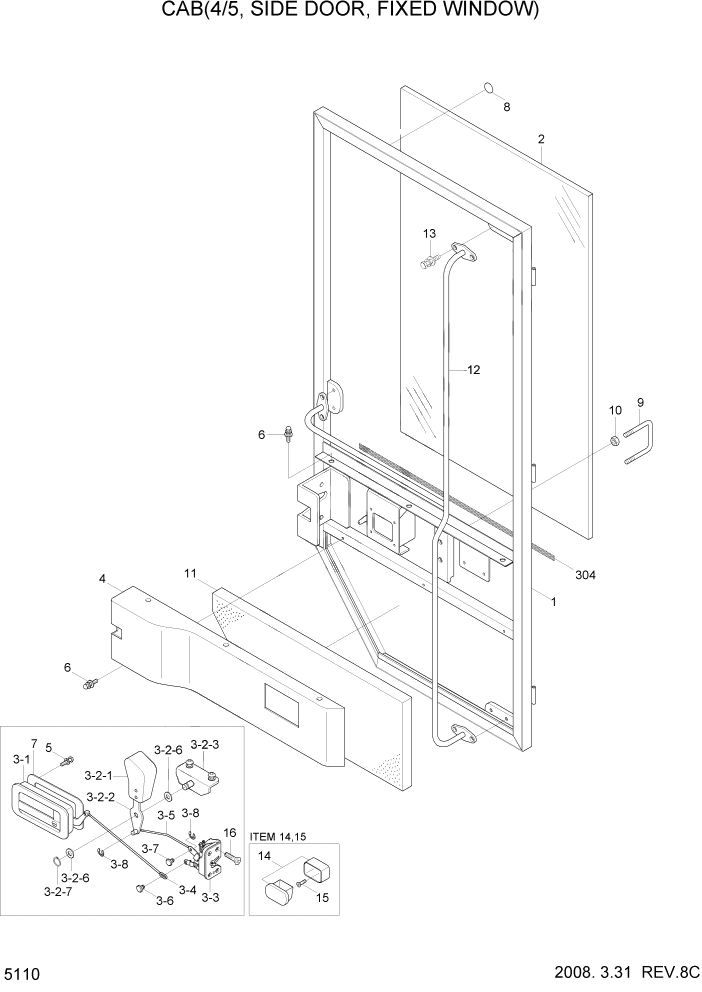

Запчасти Hyundai HL757TM7 PAGE 5110 CAB(4/5, SIDE DOOR, FIXED WINDOW) СТРУКТУРА

*-1

@

CAB SUB ASSY

NOT #0073

1шт.

*

@

CAB ASSY

NOT #0074

1шт.

*

71LB-01021

SIDE DOOR ASSY-LH

FIXED WINDOW

1шт.

*

71LB-07020

SIDE DOOR ASSY-LH

SLIDING WINDOW

1шт.

*

71LB-01031

SIDE DOOR ASSY-RH

FIXED WINDOW

1шт.

*

71LB-07030

SIDE DOOR ASSY-RH

SLIDING WINDOW

1шт.

1

71LB-01231

SIDE DOOR WA-LH

FIXED WINDOW

1шт.

1

71LB-07040

SIDE DOOR WA-LH

SLIDING WINDOW

1шт.

1

71LB-01281

SIDE DOOR WA-RH

FIXED WINDOW

1шт.

1

71LB-07050

SIDE DOOR WA-RH

SLIDING WINDOW

1шт.

2

71LB-01241

GLASS-DOOR,UPPER,LH

1шт.

2

71LB-04050

GLASS-DOOR,UPPER,RH

1шт.

2

@

SLIDING WINDOW ASSY

NOT

1шт.

3

71LB-01251

HANDLE ASSY-LH

1шт.

3

71LB-01301

HANDLE ASSY-RH

1шт.

3-1

71LB-01651

HANDLE

1шт.

3-2

71LB-04010

HANDLE-INNER,LH

1шт.

3-2

71LB-04020

HANDLE-INNER,RH

1шт.

3-2-1

71L7-01160

KNOB

1шт.

3-2-2

71LB-04060

PLATE-LH

1шт.

3-2-2

71LB-04070

PLATE-RH

1шт.

3-2-3

71L7-01180

PLATE WA

1шт.

3-2-6

S401-102002

WASHER-PLAIN

2шт.

3-2-7

S601-010001

RING-RETAINING

1шт.

3-3

71N6-03410

LATCH

1шт.

3-4

71LB-04030

ROD-HANDLE

1шт.

3-5

71LB-04040

ROD-HANDLE

1шт.

3-6

71N6-03440

PIN-1

2шт.

3-7

71N6-03450

PIN

1шт.

3-8

S560-050006

E-RING

3шт.

4

71LB-01262

COVER-DOOR,LH

FIXED WINDOW

1шт.

4

71LB-07070

COVER-DOOR,LH

SLIDING WINDOW

1шт.

4

71LB-01312

COVER-DOOR,RH

FIXED WINDOW

1шт.

4

71LB-07080

COVER-DOOR,RH

SLIDING WINDOW

1шт.

5

S131-051546

SCREW-W/WASHER

8шт.

6

S131-061646

SCREW-W/WASHER

7шт.

7

71LB-01271

PAD-RUBBER

1шт.

8

17E1-5146

BUMPER-DOOR

2шт.

9

71N6-03650

STRIKER

1шт.

10

S203-101006

NUT-HEX

4шт.

11

71LB-01940

FOAM-SPONGE,LH

FIXED WINDOW

1шт.

11

71LB-07090

FOAM-DOOR/LH

SLIDING WINDOW

1шт.

11

71LB-01950

FOAM-SPONGE,RH

FIXED WINDOW

1шт.

11

71LB-07100

FOAM-DOOR/RH

SLIDING WINDOW

1шт.

12

71LB-01960

HANDRAIL WA-LH

FIXED WINDOW

1шт.

12

71LB-07110

HANDRAIL WA-LH

SLIDING WINDOW

1шт.

12

71LB-01970

HANDRAIL WA-RH

FIXED WINDOW

1шт.

12

71LB-07120

HANDRAIL WA-RH

SLIDING WINDOW

1шт.

13

S037-102026

BOLT-W/WASHER

6шт.

14

E171-1176

ASHTRAY

RH ONLY

1шт.

15

S141-040166

SCREW-FLAT HD

RH ONLY

2шт.

16

S141-060156

SCREW-FLAT HD

SLIDING WINDOW #0001

4шт.

304

71LB-03570

SEAL-DOOR

#0001

1шт.
