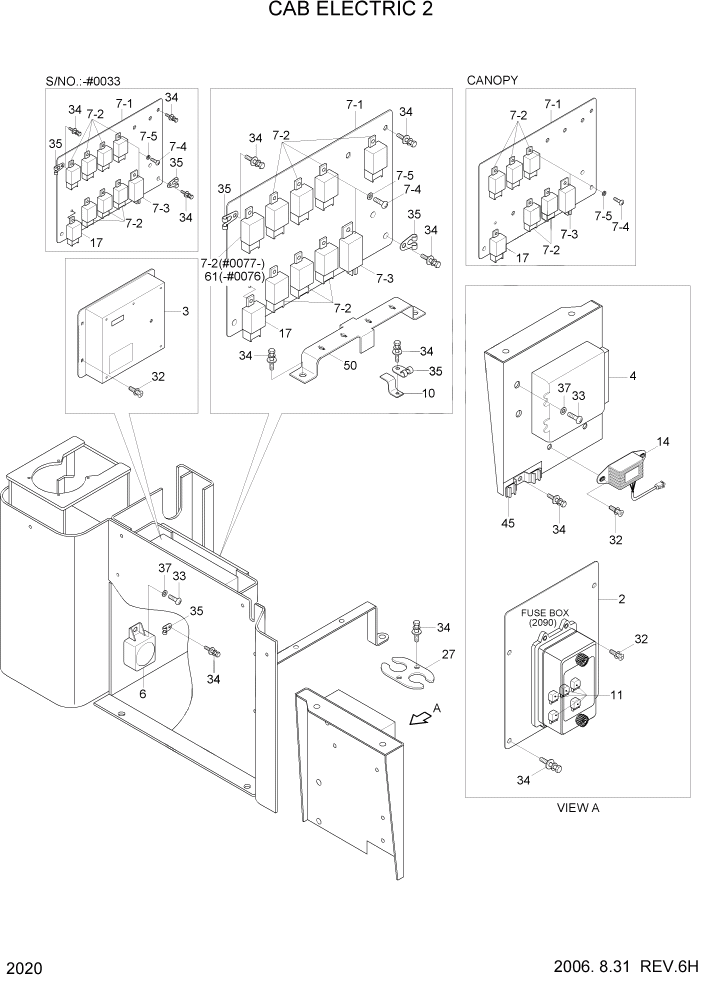

Запчасти Hyundai HL757TM7 PAGE 2020 CAB ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21LB-40110

PLATE

ROPS ONLY

1шт.

3

21LB-40101

MCU

#0064

1шт.

3

21LB-40102

MCU

#0065

1шт.

4

21LD-30010

CONTROL UNIT(EST-37A)

1шт.

6

21E4-2025

BUZZER-WARNING

1шт.

7

21LC-20070

RELAY BOARD ASSY

#0033

1шт.

7

21LC-20071

RELAY BOARD ASSY

#0034 - #0076

1шт.

7

21LC-20072

RELAY BOARD ASSY

#0077

1шт.

7

21LD-80220

RELAY BOARD ASSY

CANOPY

1шт.

7-1

21LC-20080

PLATE WA

#0033

1шт.

7-1

21LC-20081

PLATE-RELAY BOARD

#0034

1шт.

7-2

21E4-0011

RELAY-4P

#0076

7шт.

7-2

21E4-0011

RELAY-4P

#0077

8шт.

7-2

21E4-0011

RELAY-4P

CANOPY

5шт.

7-3

21ER-60700

FLASHER UNIT ASSY

#0014

1шт.

7-3

21ER-60702

FLASHER UNIT ASSY

#0015

1шт.

7-4

S161-050102

SCREW-RD HD

#0076

8шт.

7-4

S161-050102

SCREW-RD HD

#0077

9шт.

7-4

S161-050102

SCREW-RD HD

CANOPY

6шт.

7-5

S411-050002

WASHER-SPRING

#0076

8шт.

7-5

S411-050002

WASHER-SPRING

#0077

9шт.

7-5

S411-050002

WASHER-SPRING

CANOPY

6шт.

10

21E7-0612

PLATE-CONNECTOR

1шт.

11

24L1-05100

RELAY

5шт.

11

24L1-05100

RELAY

CANOPY

3шт.

14

21N8-20201

DC-DC CONVERTER ASSY

OPT, ROPS ONLY

1шт.

R17

21E4-0011

RELAY-4P

RIDE CONTROL

1шт.

27

21LB-20331

PLATE

1шт.

32

S131-061546

SCREW-W/WASHER

14шт.

33

S131-051546

SCREW-W/WASHER

13шт.

34

S035-082022

BOLT-W/WASHER

21шт.

35

S593-000902

CLIP-HARNESS

11шт.

45

S543-420002

CLAMP-TUBE

1шт.

50

21LB-40070

PLATE

1шт.

61

21E4-0011

RELAY-4P

FUEL WARMER #0034 - #0076

1шт.
