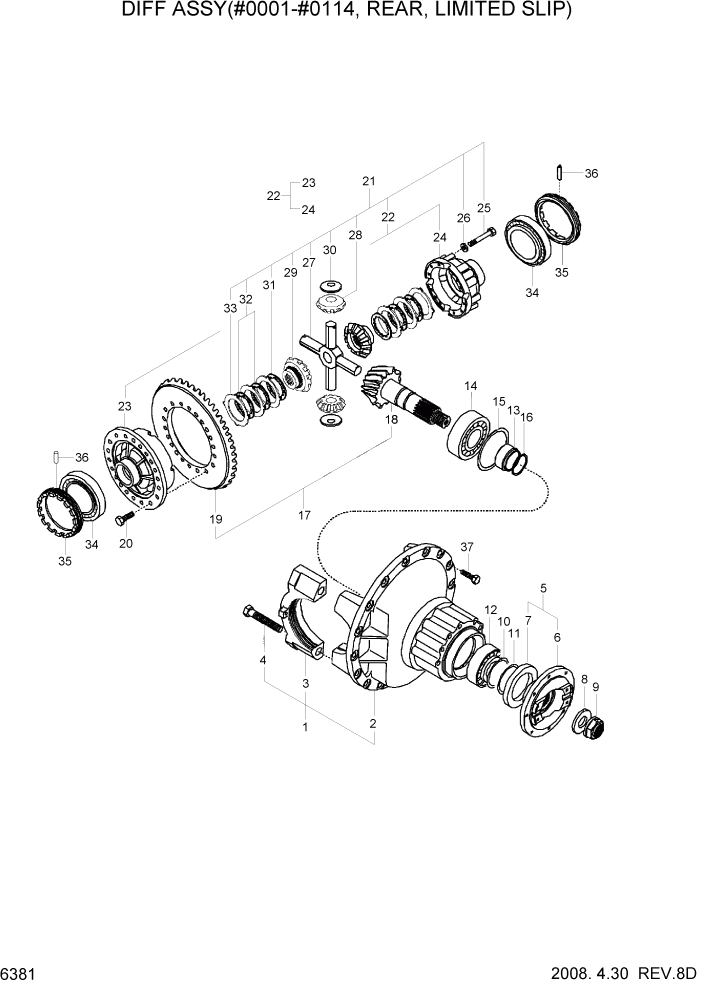

Запчасти Hyundai HL757TM7 PAGE 6381 DIFF ASSY(#0001-#0114, RR, LIMITED SLIP) СИЛОВАЯ СИСТЕМА

*

XKBQ-00536

DIFF ASSY-REAR

LIMITED SLIP #0001 - #0114

1шт.

1

XKBQ-00453

CARRIER ASSY

1шт.

N2

XKBQ-00454

CARRIER-REAR

NOT

1шт.

N3

XKBQ-00295

CAP

NOT

2шт.

4

XKBQ-00296

BOLT-HEX

4шт.

5

XKBQ-00455

FLANGE ASSY

1шт.

N6

XKBQ-00456

FLANGE

NOT

1шт.

N7

XKBQ-00383

COVER-DUST

NOT

1шт.

8

XKBQ-00384

HOLDER

1шт.

9

XKBQ-00027

NUT

1шт.

10

XKBQ-00385

SEAL-OIL

1шт.

11

XKBQ-00386

SEAL-GAMMA

1шт.

12

XKBQ-00457

BEARING

1шт.

13

XKBQ-00461

SPACER(29.675)

ARшт.

13

XKBQ-00460

SPACER(29.650)

ARшт.

13

XKBQ-00459

SPACER(29.625)

ARшт.

13

XKBQ-00458

SPACER(29.600)

1шт.

14

XKBQ-00462

BEARING

1шт.

15

XKBQ-00465

SHIM(0.5)

ARшт.

15

XKBQ-00464

SHIM(0.3)

ARшт.

15

XKBQ-00463

SHIM(0.1)

ARшт.

16

XKBQ-00472

SHIM(1.9)

1шт.

16

XKBQ-00471

SHIM(1.8)

ARшт.

16

XKBQ-00470

SHIM(1.7)

ARшт.

16

XKBQ-00469

SHIM(1.5)

1шт.

16

XKBQ-00468

SHIM(1.3)

ARшт.

16

XKBQ-00467

SHIM(1.1)

1шт.

16

XKBQ-00466

SHIM(1.0)

ARшт.

17

XKBQ-00473

SET-BEVEL

1шт.

N18

XKBQ-00474

PINION-BEVEL

NOT

1шт.

N19

XKBQ-00475

GEAR-BEVEL RING

NOT

1шт.

20

XKBQ-00321

BOLT-HEX

12шт.

21

XKBQ-00537

DIFF ASSY-SMT

1шт.

22

XKBQ-00538

CASE ASSY-REAR

1шт.

N23

XKBQ-00539

CASE-LH,REAR

NOT

1шт.

N24

XKBQ-00540

CASE-RH,REAR

NOT

1шт.

25

XKBQ-00535

BOLT-HEX HD

12шт.

26

XKBQ-00481

WASHER-PLAIN

12шт.

27

XKBQ-00484

SPIDER

1шт.

28

XKBQ-00483

PINION-DIFF

4шт.

29

XKBQ-00541

GEAR-SIDE

2шт.

30

XKBQ-00485

WASHER-THRUST

4шт.

31

XKBQ-00542

PLATE-FRICTION

2шт.

32

XKBQ-00543

PLATE-FRICTION

4шт.

33

XKBQ-00547

PLATE(3.3)-COUNT

ARшт.

33

XKBQ-00546

PLATE(3.2)-COUNT

6шт.

33

XKBQ-00545

PLATE(3.1)-COUNT

ARшт.

33

XKBQ-00544

PLATE(3.0)-COUNT

ARшт.

34

XKBQ-00304

BEARING

2шт.

35

XKBQ-00303

NUT-ADJUSTING

2шт.

36

XKBQ-00067

PIN-SPRING

2шт.

37

XKBQ-00289

BOLT-HEX

19шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
