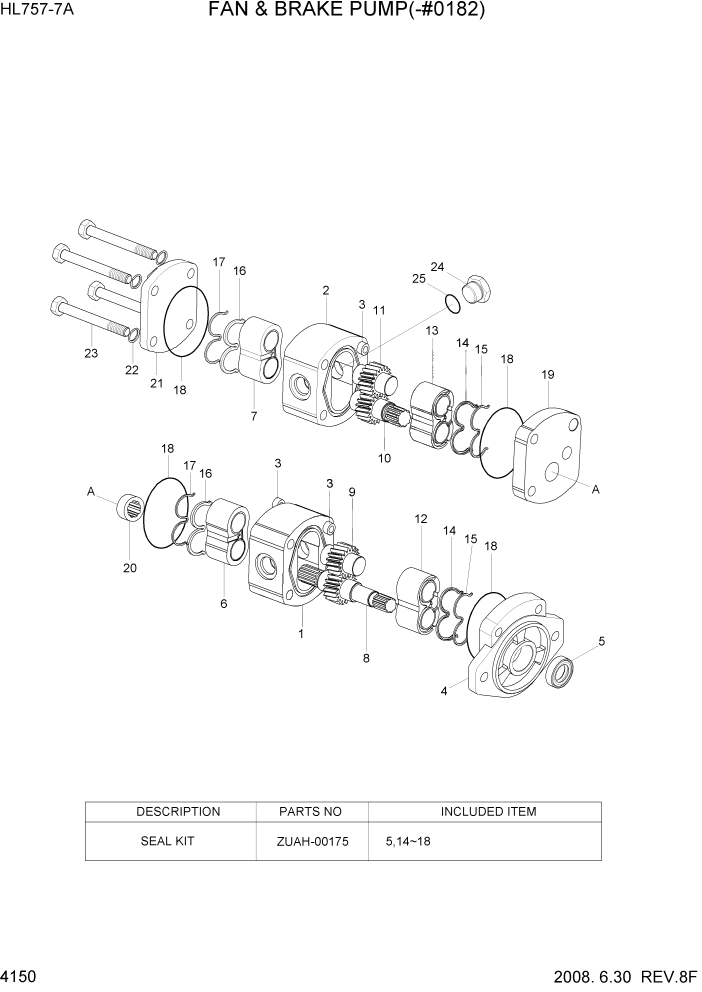

Запчасти Hyundai HL757-7A PAGE 4150 FAN & BRAKE PUMP(-#0182) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LC-40400

FAN & BRAKE PUMP

#0182

1шт.

*

31LD-40250

BRAKE & FAN PUMP

#0183

1шт.

1

@

BODY

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

PIN-DOWEL

NOT

6шт.

4

@

COVER-FRONT

NOT

1шт.

K5

@

SEAL-SHAFT

NOT

1шт.

6

@

BUSHING

NOT

1шт.

7

@

BUSHING

NOT

1шт.

8

@

GEAR-DRIVE

NOT

1шт.

9

@

GEAR-DRIVEN

NOT

1шт.

10

@

GEAR-DRIVE

NOT

1шт.

11

@

GEAR-DRIVEN

NOT

1шт.

12

@

BUSHING

NOT

1шт.

13

@

BUSHING

NOT

1шт.

K14

@

SEAL-BUSH LOBE

NOT

2шт.

K15

@

RING-BACKING

NOT

2шт.

K16

@

SEAL-BUSH LOBE

NOT

2шт.

K17

@

RING-BACKING

NOT

2шт.

K18

@

BODY SEAL

NOT

4шт.

19

@

PLATE-INTERMEDIATE

NOT

1шт.

20

@

COUPLING

NOT

1шт.

21

@

COVER-REAR

NOT

1шт.

22

@

WASHER-SPRING

NOT

4шт.

23

@

SCREW

NOT

4шт.

24

@

PLUG

NOT

1шт.

25

@

O-RING

NOT

1шт.

K

ZUAH-00175

SEAL KIT

SEE ILLUST

1шт.
