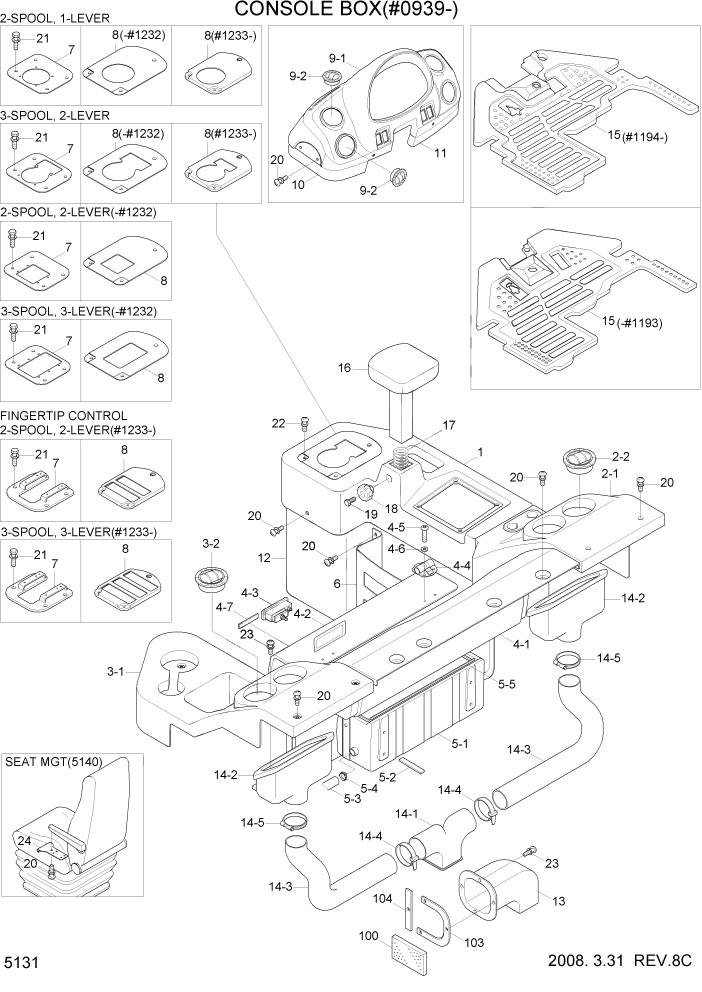

Запчасти Hyundai HL757-7 PAGE 5131 CONSOLE BOX(#0939-) СТРУКТУРА

1

71LB-20011

CONSOLE BOX-RH,FR

1шт.

2

71LB-20300

CONSOLE BOX ASSY-RH/RR

1шт.

2-1

71LB-20021

CONSOLE BOX-RH,RR

1шт.

2-2

71N6-03300

AIR VENT

2шт.

3

71LB-20310

CONSOLE BOX ASSY-LH

1шт.

3-1

71LB-20031

CONSOLE BOX-LH

1шт.

3-2

71N6-03300

AIR VENT

2шт.

4

71LB-21022

REAR COVER ASSY

1шт.

4-1

71LB-21031

REAR COVER-BODY

1шт.

4-2

71LB-21041

COVER-DOOR

1шт.

4-3

71LB-21180

LATCH ASSY

1шт.

4-4

71N6-21900

HINGE

2шт.

4-5

S161-050166

SCREW-CROSS R/ROUND

4шт.

4-6

S403-052006

WASHER-PLAIN

4шт.

4-7

71LB-21160

PAD-RUBBER

4шт.

5

71LB-21150

STORAGE BOX ASSY

1шт.

5-1

71LB-21051

STORAGE BOX

1шт.

5-2

71LB-21170

PAD-RUBBER/STORAGE

3шт.

5-3

71N6-20360

HOSE-STORAGE BOX

1шт.

5-4

71N6-20370

CLIP-HOSE

1шт.

5-5

71LB-21190

SPONGE

1шт.

6

71LB-20101

BOOK BOX

1шт.

7

71LB-20230

PLATE-RCV/2S/1L

2-SPOOL,1-LEVER

1шт.

7

71LB-20240

PLATE-RCV/3S/2L

3-SPOOL,2-LEVER

1шт.

7

71LB-20250

PLATE-RCV/2S/2L

2-SPOOL,2-LEVER #1232

1шт.

7

71LB-20331

PLATE-RCV

2-SPOOL,2-LEVER #1233

1шт.

7

71LB-20260

PLATE-RCV/3S/3L

3-SPOOL,3-LEVER #1232

1шт.

7

71LB-20331

PLATE-RCV

3-SPOOL,3-LEVER #1233

1шт.

8

71LB-20200

COVER-J/LEVER/2S/1L

2-SPOOL,1-LEVER #1232

1шт.

8

71LB-20201

COVER-J/LEVER/2S/1L

2-SPOOL,1-LEVER #1233

1шт.

8

71LB-20111

COVER-J/LEVER/3S/2L

3-SPOOL,2-LEVER #1232

1шт.

8

71LB-20112

COVER-J/LEVER/3S/2L

3-SPOOL,2-LEVER #1233

1шт.

8

71LB-20210

COVER-J/LEVER/2S/2L

2-SPOOL,2-LEVER #1232

1шт.

8

71LB-20371

COVER-J/LEVER/2S/2L

2-SPOOL,2-LEVER #1233

1шт.

8

71LB-20220

COVER-J/LEVER/3S/3L

3-SPOOL,3-LEVER #1232

1шт.

8

71LB-20381

COVER-J/LEVER/3S/3L

3-SPOOL,3-LEVER #1233

1шт.

9

71LB-20320

DASHBOARD ASSY

SEE 5100 #1233

1шт.

9-1

71LB-30021

DASHBOARD

SEE 5100 #1233

1шт.

9-2

71N6-03300

AIR VENT

SEE 5100 #1233

2шт.

10

71LB-20161

COVER-DASHBOARD,LH

SEE 5100 #1233

1шт.

11

71LB-20171

COVER-DASHBOARD,RH

SEE 5100 #1233

1шт.

12

71LB-05051

COVER-RCV

1шт.

13

71LB-10111

DUCT-INLET

1шт.

14

71LB-10150

DUCT ASSY-REAR

1шт.

14-1

71LB-10051

DUCT-REAR(1)

1шт.

14-2

71LB-10061

DUCT-REAR(2)

2шт.

14-3

71LB-10070

HOSE-REAR

2шт.

14-4

S552-102370

CLAMP-BAND

2шт.

14-5

S520-085000

CLAMP-HOSE

2шт.

15

71LB-21061

MAT-FLOOR/DUAL BRAKE

#1193

1шт.

15

71LB-21062

MAT-FLOOR

#1194

1шт.

16

71LB-20121

WRIST REST ASSY

1шт.

17

71LB-20190

SPRING

1шт.

18

61S1-1037

HANDLE

1шт.

19

S015-08035V

BOLT-HEX

1шт.

20

S132-08152V

SCREW-W/WASHER

#1233

51шт.

20

S132-08152V

SCREW-W/WASHER

#1234

35шт.

21

S037-10255V

BOLT-W/WASHER

4шт.

22

S131-05154V

SCREW-W/WASHER

2шт.

23

S151-03010V

SCREW-TAPPING

3шт.

24

71LB-21141

PLATE-J/STRG LEVER

OPT

1шт.

100

71LB-04180

FOAM-BOTTOM(5)

1шт.

103

71LB-04220

PLATE-DUCT(1)

1шт.

104

71LB-04230

PLATE-DUCT(2)

1шт.
