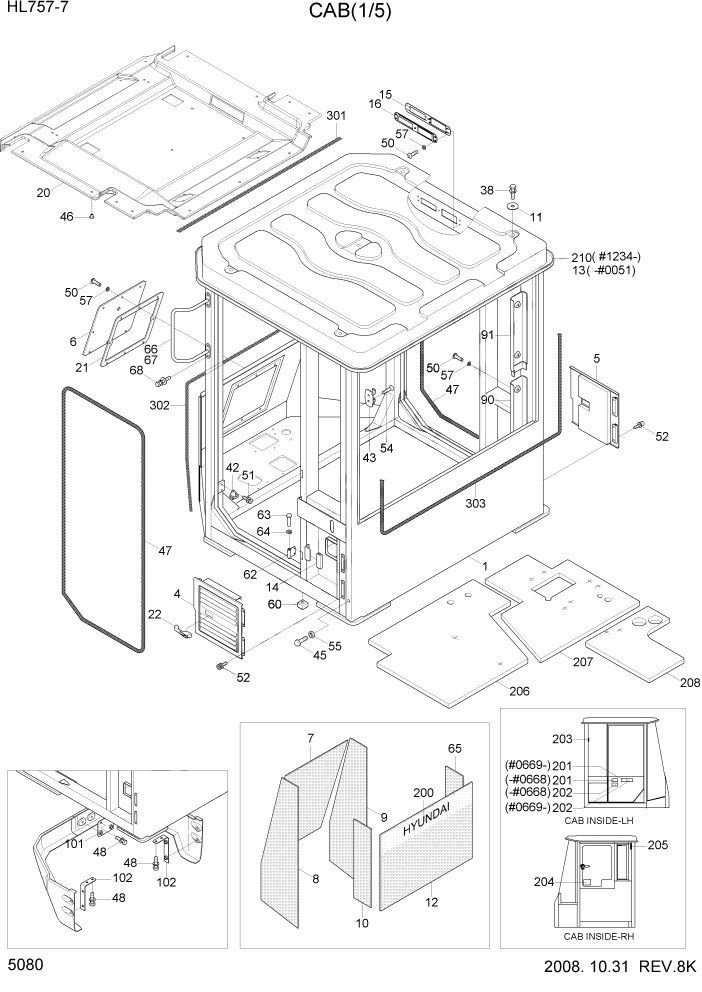

Запчасти Hyundai HL757-7 PAGE 5080 CAB(1/5) СТРУКТУРА

*

71LB-00013

CAB ASSY

FIXED WINDOW #0051

1шт.

*

71LB-00014

CAB ASSY

FIXED WINDOW #0052 - #0245

1шт.

*

71LB-00015

CAB ASSY

FIXED WINDOW #0246 - #0459

1шт.

*

71LB-00016

CAB ASSY

FIXED WINDOW #0460 - #0938

1шт.

*

71LB-00017

CAB ASSY

FIXED WINDOW #0939 - #1173

1шт.

*

71LB-00019

CAB ASSY

FIXED WINDOW #1174 - #1210

1шт.

*

71LB-00090

CAB ASSY

FIXED WINDOW #1211 - #1232

1шт.

*

71LB-00092

CAB ASSY

FIXED WINDOW #1233 - #1594

1шт.

*

71LB-00090

CAB ASSY

FIWED WINDOW #1211

1шт.

*

71LB-00093

CAB ASSY

FIXED WINDOW #1595 - #1623

1шт.

*

71LB-00094

CAB ASSY

FIXED WINDOW #1624

1шт.

*

71LB-00070

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0669 - #0938

1шт.

*

71LB-00071

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #0939 - #1173

1шт.

*

71LB-00073

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #1174 - #1210

1шт.

*

71LB-00074

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #1211 - #1232

1шт.

*

71LB-00076

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #1233 - #1594

1шт.

*

71LB-00077

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #1595 - #1623

1шт.

*

71LB-00078

CAB ASSY-F/WIN,L/NOISE

FIXED,LOW NOISE #1624

1шт.

*

71LB-00020

CAB ASSY

SLIDING WINDOW #0051

1шт.

*

71LB-00021

CAB ASSY

SLIDING WINDOW #0052 - #0245

1шт.

*

71LB-00022

CAB ASSY

SLIDING WINDOW #0246 - #0459

1шт.

*

71LB-00023

CAB ASSY

SLIDING WINDOW #0460 - #0938

1шт.

*

71LB-00024

CAB ASSY

SLIDING WINDOW #0939 - #1173

1шт.

*

71LB-00026

CAB ASSY

SLIDING WINDOW #1174 - #1210

1шт.

*

71LB-00027

CAB ASSY

SLIDING WINDOW #1211 - #1232

1шт.

*

71LB-00029

CAB ASSY

SLIDING WINDOW #1233

1шт.

*-1

71LB-07010

CAB SUB ASSY

SLIDING WINDOW #0459

1шт.

*-1

71LB-07011

CAB SUB ASSY

SLIDING WINDOW #0460

1шт.

1

71LB-02012

CABIN WA

1шт.

*

71LB-00080

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0669 - #0938

1шт.

*

71LB-00081

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #0939 - #1173

1шт.

*

71LB-00083

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #1174 - #1120

1шт.

*

71LB-00084

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #1211 - #1232

1шт.

*

71LB-00086

CAB ASSY-S/WIN,L/NOISE

SLIDE,LOW NOISE #1233

1шт.

*-1

71LB-01013

CAB SUB ASSY

FIXED WINDOW #0459

1шт.

*-1

71LB-01014

CAB SUB ASSY

FIXED WINDOW #0460 - #0938

1шт.

*-1

71LB-01015

CAB SUB ASSY

FIXED WINDOW #0939 - #1189

1шт.

*-1

71LB-01016

CAB SUB ASSY

FIXED WINDOW #1190 - #1210

1шт.

*-1

71LB-01017

CAB SUB ASSY

FIXED WINDOW #1211 - #1232

1шт.

*-1

71LB-01018

CAB SUB ASSY

#1233

1шт.

*-1

71LB-07010

CAB SUB ASSY

SLIDING WINDOW #0459

1шт.

*-1

71LB-07011

CAB SUB ASSY

SLIDING WINDOW #0460 - #0938

1шт.

*-1

71LB-01015

CAB SUB ASSY

SLIDING WINDOW #0939 - #1189

1шт.

*-1

71LB-01016

CAB SUB ASSY

SLIDING WINDOW #1190 - #1210

1шт.

*-1

71LB-01017

CAB SUB ASSY

SLIDING WINDOW #1211 - #1232

1шт.

*-1

71LB-01018

CAB SUB ASSY

#1233

1шт.

1

71LB-02012

CAB WA

SLIDING WINDOW #0938

1шт.

1

71LB-02013

CAB WA

SLIDING WINDOW #0939 - #1210

1шт.

1

71LB-02014

CAB WA

SLIDING WINDOW #1211

1шт.

4

71LB-01041

COVER ASSY-LH

AIRCON FILTER

1шт.

5

71LB-01051

COVER ASSY-RH

1шт.

6

71LB-01061

COVER WA-W/MOTOR

1шт.

7

71LB-01071

GLASS-FRONT,CENTER

1шт.

8

71LB-01081

GLASS-FRONT,SIDE,LH

1шт.

9

71LB-01091

GLASS-FRONT,SIDE,RH

1шт.

10

71LB-01101

GLASS-SIDE,LH

1шт.

11

71LB-01110

WASHER-ROOF COVER

#0001

5шт.

12

71LB-01121

GLASS-REAR

1шт.

13

71LB-01131

COVER-ROOF

SEE 5070 #0051

1шт.

14

71LB-01140

PAD-RUBBER

1шт.

15

71LB-01151

PLATE WA-CASSETTE

1шт.

16

71LB-01161

COVER-CASSETTE

#0684

1шт.

16

71LB-01162

COVER-CASSETTE

#0685

1шт.

20

71LB-01201

HEADLINING

#0938

1шт.

20

71LB-11450

HEADLINING

#0939

1шт.

21

71LB-01211

PAD-RUBBER

1шт.

22

71LB-01220

LATCH ASSY

2шт.

38

S017-16020D

BOLT-HEX

#0938

5шт.

38

S017-20020D

BOLT-HEX

#0939

5шт.

42

71N6-02770

STRIKER

2шт.

43

71N6-02920

HOOK-COAT

1шт.

45

71EH-13150

RUBBER-BUMPER

4шт.

46

E171-1310

PLUG-HEADLINER

14шт.

47

S771-039500

WEATHER STRIP

2шт.

48

S037-122552

BOLT-W/WASHER

6шт.

50

S161-080206

SCREW-CROSS R/ROUND

20шт.

51

S145-080166

SCREW-FLAT HD

4шт.

52

S132-061656

SCREW-W/WASHER

8шт.

54

S141-040206

SCREW-FLAT HD

2шт.

55

S203-101006

NUT-HEX

4шт.

57

S403-082006

WASHER-PLAIN

20шт.

60

71LB-01560

FOAM-SPONGE

1шт.

62

71LB-01600

HINGE

6шт.

63

74L3-05330

PIN-HINGE

6шт.

64

74L3-04450

WASHER-COPPER

6шт.

65

71LB-01681

GLASS-SIDE,RH

1шт.

66

71LB-01692

HANDRAIL WA-LH

1шт.

67

71LB-01702

HANDRAIL WA-RH

1шт.

68

S037-102026

BOLT-W/WASHER

4шт.

90

71LB-20141

COVER-HARNESS(LOW)

1шт.

91

71LB-20151

COVER-HARNESS(UP)

1шт.

101

71LB-04190

PLATE WA-FRONT

1шт.

102

71LB-04200

PLATE WA-SIDE

2шт.

301

71LB-03540

SEAL-FRONT/UP

#0001

1шт.

302

71LB-03550

SEAL-FRONT/LOW

#0001

1шт.

303

71LB-03560

SEAL-REAR

#0001

1шт.

301

71LB-03540

SEAL-FRONT/UP

#0001

1шт.

302

71LB-03550

SEAL-FRONT/LOW

#0001

1шт.

303

71LB-03560

SEAL-REAR

#0001

1шт.

200

91LB-21000

ADHESIVE SUN SCREEN

#0246 - #1173

1шт.

200

91LB-21010

ADHESIVE SUN SCREEN

#1174

1шт.

201

91LB-01230

DECAL-MAX H/REACH

LOW NOISE #0669

1шт.

202

91LB-01240

DECAL-ROLL OVER

LOW NOISE #0669

1шт.

203

91LB-01340

DECAL-HAMMER

LOW NOISE #0669

1шт.

204

91N6-07261

ALTERNATE EXIT

LOW NOISE #0669

1шт.

205

91N6-07290

FIRE

LOW NOISE #0669

1шт.

206

71LB-11261

SPONGE-BOTTOM/LOW(1)

LOW NOISE #0669

1шт.

207

71LB-11271

SPONGE-BOTTOM/LOW(2)

LOW NOISE #0669

1шт.

208

71LB-11281

SPONGE-BOTTOM/LOW(3)

LOW NOISE #0669 - #0938

1шт.

208

71LB-04240

SPONGE-BOTTOM/LOW(3)

LOW NOISE #0939

1шт.

210

71LB-01131

COVER-ROOF

#1234

1шт.

*-2

@

ELECTRIC CAB ASSY

NOT

1шт.
