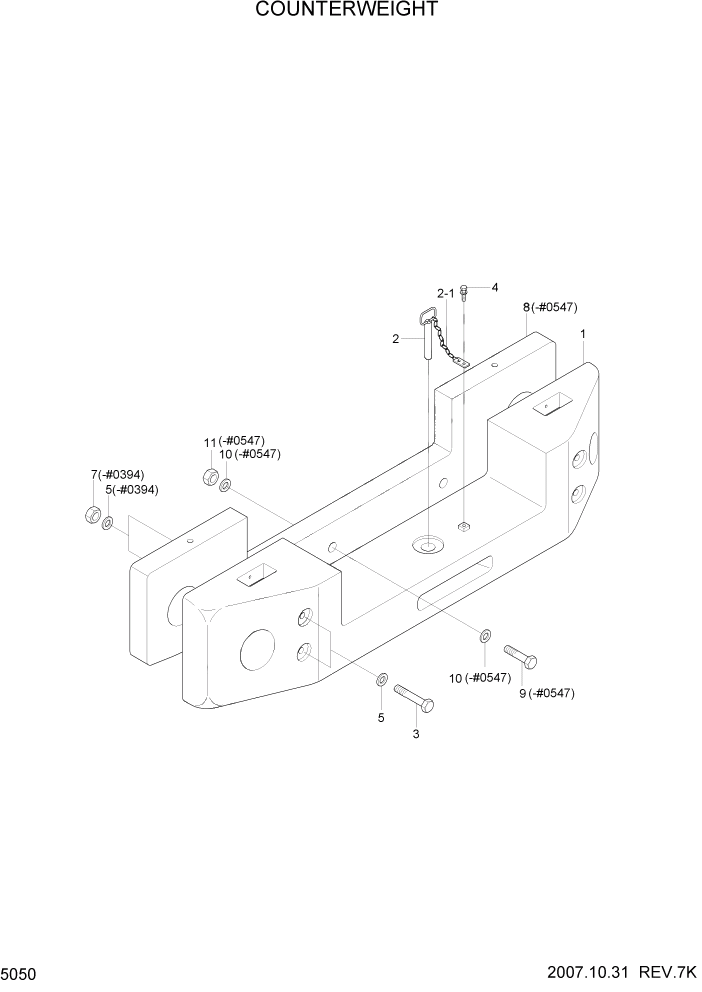

Запчасти Hyundai HL757-7 PAGE 5050 COUNTERWEIGHT СТРУКТУРА

1

51LD-10012

COUNTERWEIGHT

HL757-7 #1210

1шт.

1

51LD-10100

COUNTERWEIGHT

HL757-7 #1211

1шт.

1

51LD-11010

COUNTERWEIGHT

HL757XTD-7 #0510

1шт.

1

51LD-10012

COUNTERWEIGHT

1шт.

1

51LD-11010

COUNTERWEIGHT

HL757XTD-7 #0548 - #1210

1шт.

1

51LD-11100

COUNTERWEIGHT

HL757XTD-7 #1211

1шт.

2

51LD-10021

PIN ASSY

1шт.

2-1

54L3-00940

CHAIN ASSY

1шт.

3

S018-302002

BOLT-HEX

HL757-7 #0394

4шт.

3

S018-30210D

BOLT-HEX

HL757-7 #0395 - #0848

4шт.

3

S017-30210D

BOLT-HEX

HL757-7 #0849

4шт.

3

S018-30250D

BOLT-HEX

HL757XTD-7 #0547

4шт.

3

S018-30230D

BOLT-HEX

HL757XTD-7 #0548 - #0848

4шт.

3

S017-30230D

BOLT-HEX

HL757XTD-7 #0849

4шт.

4

S037-102056

BOLT-W/WASHER

1шт.

5

S441-300006

WASHER-HARDENED

#0394

8шт.

5

S441-300006

WASHER-HARDENED

#0395

4шт.

7

S206-301002

NUT-HEX

#0394

4шт.

8

51LD-10030

ADDITIONAL CWT

HL757XTD-7 #0547

1шт.

9

S017-241202

BOLT-HEX

HL757XTD-7 #0547

2шт.

10

S441-240002

WASHER-HARDENED

HL757XTD-7 #0547

4шт.

11

S207-241002

NUT-HEX

HL757XTD-7 #0547

2шт.
