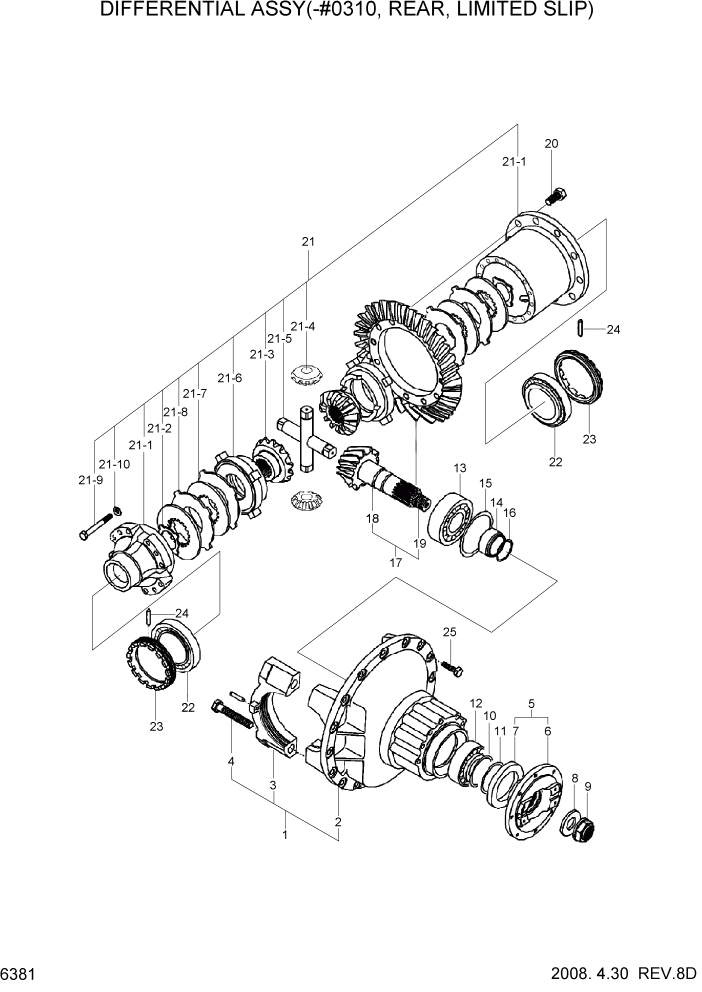

Запчасти Hyundai HL757-7 PAGE 6381 DIFF ASSY(-#0310, REAR, LIMITED SLIP) СИЛОВАЯ СИСТЕМА

*

XKBQ-00504

DIFF ASSY-REAR

LIMITED SLIP #0310

1шт.

1

XKBQ-00453

CARRIER ASSY

1шт.

N2

XKBQ-00454

CARRIER-REAR

NOT

1шт.

N3

XKBQ-00295

CAP

NOT

2шт.

4

XKBQ-00296

BOLT-HEX

4шт.

5

XKBQ-00455

FLANGE ASSY

1шт.

N6

XKBQ-00456

FLANGE

NOT

1шт.

N7

XKBQ-00383

COVER-DUST

NOT

1шт.

8

XKBQ-00384

HOLDER

1шт.

9

XKBQ-00027

NUT

1шт.

10

XKBQ-00385

SEAL-OIL

1шт.

11

XKBQ-00386

SEAL-GAMMA

1шт.

12

XKBQ-00457

BEARING

1шт.

13

XKBQ-00462

BEARING

1шт.

14

XKBQ-00461

SPACER(29.675)

ARшт.

14

XKBQ-00460

SPACER(29.650)

ARшт.

14

XKBQ-00459

SPACER(29.625)

ARшт.

14

XKBQ-00458

SPACER(29.600)

#0001

1шт.

15

XKBQ-00465

SHIM(0.5)

#0001

ARшт.

15

XKBQ-00464

SHIM(0.3)

ARшт.

15

XKBQ-00463

SHIM(0.1)

ARшт.

16

XKBQ-00472

SHIM(1.9)

ARшт.

16

XKBQ-00471

SHIM(1.8)

ARшт.

16

XKBQ-00470

SHIM(1.7)

ARшт.

16

XKBQ-00469

SHIM(1.5)

1шт.

16

XKBQ-00468

SHIM(1.3)

ARшт.

16

XKBQ-00467

SHIM(1.1)

1шт.

16

XKBQ-00466

SHIM(1.0)

ARшт.

17

XKBQ-00473

SET-BEVEL

1шт.

N18

XKBQ-00474

PINION-BEVEL

NOT

1шт.

N19

XKBQ-00475

GEAR-BEVEL RING

NOT

1шт.

20

XKBQ-00321

BOLT-HEX

12шт.

21

XKBQ-00505

SLIP ASSY-LIMIT

1шт.

N21-1

XKBQ-00506

CASE ASSY

NOT

1шт.

N21-2

XKBQ-00507

WASHER-THRUST

NOT

2шт.

N21-3

XKBQ-00508

GEAR-SIDE

NOT

2шт.

N21-4

XKBQ-00509

PINION

NOT

4шт.

N21-5

XKBQ-00510

SHAFT

NOT

2шт.

N21-6

XKBQ-00511

HOUSING

NOT

2шт.

N21-7

XKBQ-00514

PLATE-REACTION

NOT

4шт.

21-7

XKBQ-00513

PLATE-REACTION

ARшт.

21-7

XKBQ-00512

PLATE-REACTION

ARшт.

N21-8

XKBQ-00515

PLATE-FRICTION

NOT

4шт.

N21-9

XKBQ-00502

SCREW

NOT

16шт.

N21-10

XKBQ-00503

WASHER-PLAIN

NOT

16шт.

22

XKBQ-00304

BEARING

2шт.

23

XKBQ-00303

NUT-ADJUSTING

2шт.

24

XKBQ-00067

PIN-SPRING

2шт.

25

XKBQ-00289

BOLT-HEX

19шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
