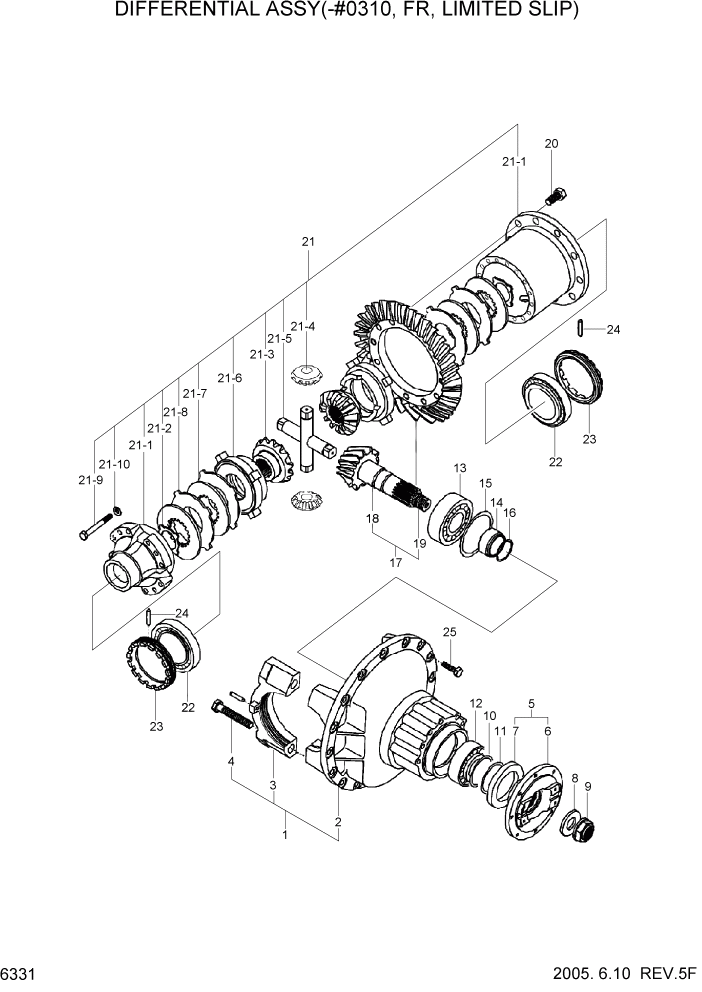

Запчасти Hyundai HL757-7 PAGE 6331 DIFF ASSY(-#0310, FR, LIMITED SLIP) СИЛОВАЯ СИСТЕМА

*

XKBQ-00490

DIFF ASSY-FRONT

LIMITED SLIP #0310

1шт.

1

XKBQ-00379

CARRIER ASSY

1шт.

N2

XKBQ-00380

CARRIER-FRONT

NOT

1шт.

N3

XKBQ-00295

CAP

NOT

2шт.

4

XKBQ-00296

BOLT-HEX

4шт.

5

XKBQ-00381

FLANGE ASSY

1шт.

N6

XKBQ-00382

FLANGE

NOT

1шт.

N7

XKBQ-00383

COVER-DUST

NOT

1шт.

8

XKBQ-00384

HOLDER

1шт.

9

XKBQ-00027

NUT

1шт.

10

XKBQ-00385

SEAL-OIL

1шт.

11

XKBQ-00386

SEAL-GAMMA

1шт.

12

XKBQ-00387

BEARING

1шт.

13

XKBQ-00388

BEARING

1шт.

14

XKBQ-00389

SPACER(47.200)

1шт.

14

XKBQ-00390

SPACER(47.225)

ARшт.

14

XKBQ-00391

SPACER(47.250)

ARшт.

14

XKBQ-00392

SPACER(47.275)

ARшт.

15

XKBQ-00393

SHIM(0.1)

ARшт.

15

XKBQ-00394

SHIM(0.2)

ARшт.

15

XKBQ-00395

SHIM(0.3)

ARшт.

16

XKBQ-00322

SHIM(1.0)

ARшт.

16

XKBQ-00323

SHIM(1.1)

1шт.

16

XKBQ-00324

SHIM(1.3)

ARшт.

16

XKBQ-00325

SHIM(1.5)

1шт.

16

XKBQ-00326

SHIM(1.7)

ARшт.

16

XKBQ-00327

SHIM(1.8)

ARшт.

16

XKBQ-00328

SHIM(1.9)

ARшт.

17

XKBQ-00396

SET-BEVEL

1шт.

N18

XKBQ-00397

PINION-BEVEL

NOT

1шт.

N19

XKBQ-00398

GEAR-BEVEL RING

NOT

1шт.

20

XKBQ-00399

BOLT-HEX

16шт.

21

XKBQ-00491

SLIP ASSY-LIMIT

1шт.

N21-1

XKBQ-00492

CASE ASSY

NOT

1шт.

N21-2

XKBQ-00493

WASHER-THRUST

NOT

2шт.

N21-3

XKBQ-00494

GEAR-SIDE

NOT

2шт.

N21-4

XKBQ-00495

PINION

NOT

4шт.

N21-5

XKBQ-00496

SHAFT

NOT

2шт.

N21-6

XKBQ-00497

HOUSING

NOT

2шт.

21-7

XKBQ-00498

PLATE-REACTION

4шт.

21-7

XKBQ-00499

PLATE-REACTION

ARшт.

N21-7

XKBQ-00500

PLATE-REACTION

NOT #0001

4шт.

N21-8

XKBQ-00501

PLATE-FRICTION

NOT

4шт.

N21-9

XKBQ-00502

SCREW

NOT

16шт.

N21-10

XKBQ-00503

WASHER-PLAIN

NOT

16шт.

22

XKBQ-00304

BEARING

2шт.

23

XKBQ-00303

NUT-ADJUSTING

2шт.

24

XKBQ-00067

PIN-SPRING

2шт.

25

XKBQ-00289

BOLT-HEX

16шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
