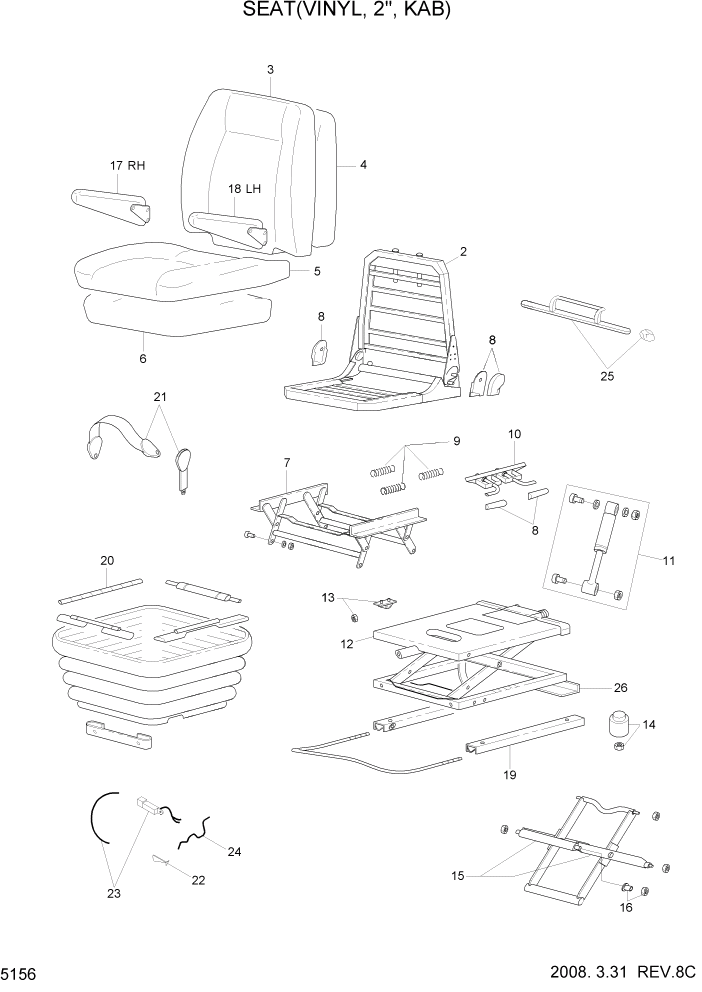

Запчасти Hyundai HL757-7 PAGE 5156 SEAT(VINYL, 2", KAB) СТРУКТУРА

*

74L4-00010

SEAT ASSY-2",VINYL

OPT #0001

1шт.

1

ZUAQ-00001

UPPER ASSY KIT

1шт.

2

ZUAQ-00002

FRAME ASSY KIT

1шт.

3

ZUAQ-00004

BACK COVER ASSY KIT

GRAY PVC

1шт.

4

ZUAQ-00005

BACK FOAM KIT

1шт.

5

ZUAQ-00007

SEAT COVER ASSY KIT

GRAY PVC

1шт.

6

ZUAQ-00008

SEAT FOAM KIT

1шт.

7

ZUAQ-00009

HEIGHT RISER KIT

1шт.

8

ZUAQ-00010

HANDLE KIT

GREY

1шт.

9

ZUAQ-00012

HEIGHT RISER SPRING KIT

1шт.

10

ZUAQ-00013

HEIGHT RISER LATCH KIT

1шт.

11

ZUAQ-00014

DAMPER KIT

1шт.

12

ZUAQ-00015

SUSPENSION ASSY KIT

1шт.

13

ZUAQ-00016

UP STOP/BUMP STOP KIT

1шт.

14

ZUAQ-00017

AIR SPRING KIT

1шт.

15

ZUAQ-00018

LEVER/CENTER PIVOT KIT

1шт.

16

ZUAQ-00019

BEARING KIT

1шт.

17

ZUAQ-00020

ARMREST KIT-RH

1шт.

18

ZUAQ-00021

ARMREST KIT-LH

1шт.

19

ZUAQ-00022

FORE & AFT ADJUST KIT

1шт.

20

ZUAQ-00023

SUSPENSION COVER KIT

1шт.

N21

@

T BELT KIT-2" STATIC

NOT #0001

1шт.

22

ZUAQ-00026

COMBINATION VALVE KIT

1шт.

23

ZUAQ-00027

COMPRESSOR KIT-24V

1шт.

24

ZUAQ-00028

FLY LEAD KIT

1шт.

25

ZUAQ-00029

LUMBAR KIT-GREY

1шт.

26

ZUAQ-00031

TETHER KIT

1шт.
