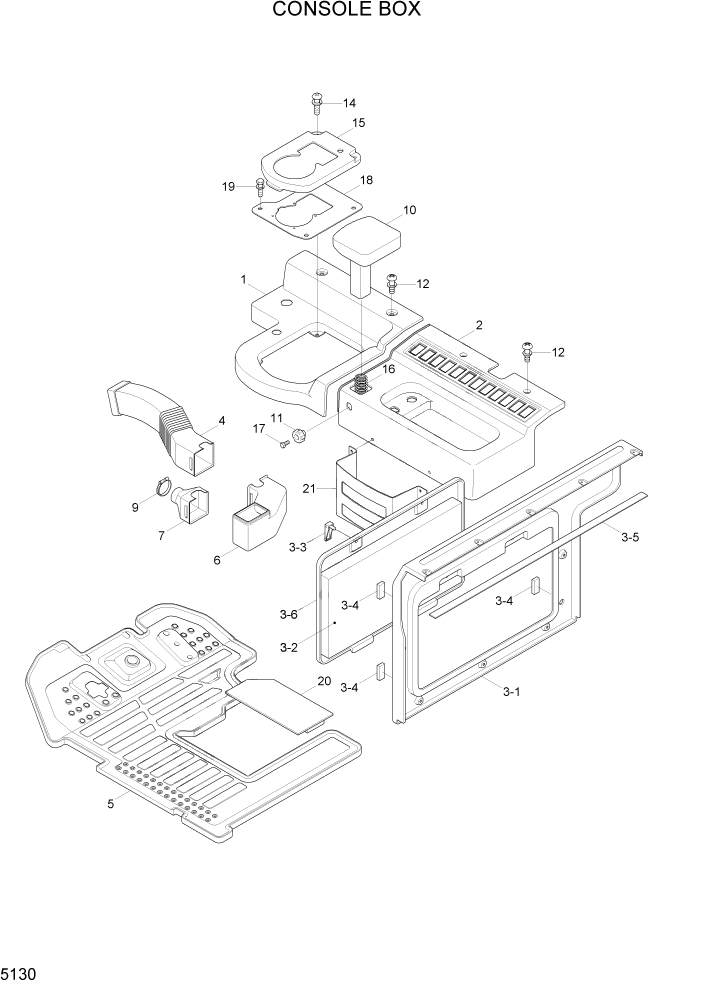

Запчасти Hyundai HL740TM-7A PAGE 5130 CONSOLE BOX СТРУКТУРА

1

71LF-20011

CONSOLE BOX-RH/FR

1шт.

2

71LF-20021

CONSOLE BOX-RH/RR

1шт.

3

71LF-20032

COVER-REAR ASSY

1шт.

3-1

71LF-20041

COVER-REAR

1шт.

3-2

71LF-20051

COVER-REAR/COVER

1шт.

3-3

71EM-20150

LATCH ASSY

2шт.

3-4

71LF-20110

RUBBER PAD

4шт.

3-5

71LF-20130

RUBBER PAD

1шт.

3-6

71LF-20140

SPONGE

1шт.

3-7

71N6-03300

AIR VENT

1шт.

4

71LF-10012

DUCT-FRONT(1)

1шт.

5

71LF-21011

MAT-FLOOR

#0003

1шт.

5

71LF-21012

MAT-FLOOR

STD #0001

1шт.

5

71LF-21070

MAT-FLOOR

DUAL PEDAL #0001

1шт.

6

71LF-10041

DUCT-REAR

1шт.

7

71LF-10051

DUCT-DEF(1)

1шт.

9

S520-055000

CLAMP-HOSE,SCREW DRIVE

1шт.

10

71LF-20120

WRIST REST ASSY

1шт.

11

61S1-1037

HANDLE

1шт.

12

S132-081526

SCREW-W/WASHER

21шт.

14

S131-051546

SCREW W/WASHER CR RH

2шт.

15

71LF-20091

COVER-J/LEVER/3S/2L

3-SP,2-L,FNR SW

1шт.

15

71LF-20200

COVER-J/LEVER/2S/1L

2-SP,1-L,FNR SW

1шт.

15

71LF-20210

COVER-J/LEVER/2S/2L

2-SPOOL,2-LEVER

1шт.

15

71LF-20220

COVER-J/LEVER/3S/3L

3-SPOOL,3-LEVER

1шт.

15

71LF-20091

COVER-J/LEVER/3S/2L

3-SPOOL,2-LEVER

1шт.

15

71LF-20200

COVER-J/LEVER/2S/1L

2-SPOOL,1-LEVER

1шт.

16

71LB-20190

SPRING

1шт.

17

S015-080356

BOLT-HEX

1шт.

18

71LF-20230

PLATE-RCV/2S/1L

2-SP,1-L,FNR SW

1шт.

18

71LF-20240

PLATE-RCV/3S/2L

3-SP,2-L,FNR SW

1шт.

18

71LF-20250

PLATE-RCV/2S/2L

2-SPOOL,2-LEVER

1шт.

18

71LF-20260

PLATE-RCV/3S/3L

3-SPOOL,3-LEVER

1шт.

18

71LF-20230

PLATE-RCV/2S/1L

2-SPOOL,1-LEVER

1шт.

18

71LF-20240

PLATE-RCV/3S/2L

3-SPOOL,2-LEVER

1шт.

19

S035-082056

BOLT-W/WASHER

4шт.

20

71LF-20180

MAT-RH

1шт.

21

71LF-20190

BOOK BOX

1шт.
