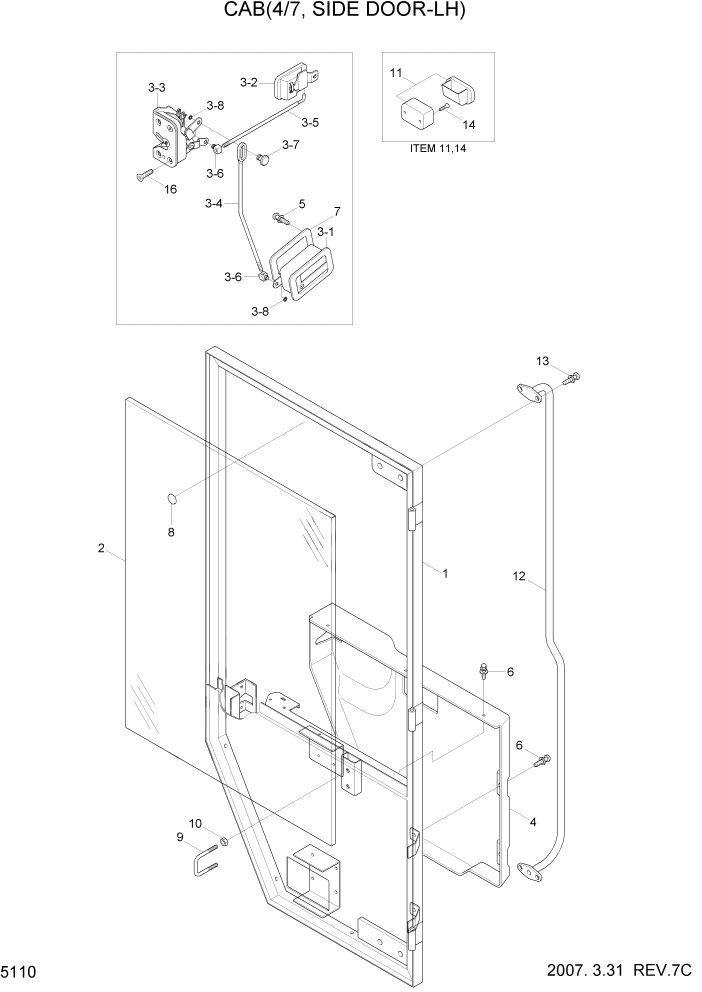

Запчасти Hyundai HL740TM-7 PAGE 5110 CAB(4/7, SIDE DOOR-LH) СТРУКТУРА

*-1

@

CAB SUB ASSY

NOT

1шт.

*

71LF-01021

SIDE DOOR ASSY-LH

FIXED WINDOW

1шт.

*

71LF-07020

SIDE DOOR ASSY-LH

SLIDING WINDOW

1шт.

1

71LF-01231

SIDE DOOR WA-LH

FIXED WINDOW

1шт.

1

71LF-07040

SIDE DOOR WA-LH

SLIDING WINDOW

1шт.

2

71LF-01241

GLASS-SIDE DOOR/LH

FIXED WINDOW

1шт.

2

@

SLIDING WINDOW ASSY

NOT

1шт.

3

71LF-01250

LATCH ASSY-LH

1шт.

3-1

71LB-01651

HANDLE

#0001

1шт.

3-2

71N6-03400

HANDLE-INNER

1шт.

3-3

71N6-03410

LATCH

1шт.

3-4

71LB-01370

ROD

1шт.

3-5

71LB-01380

ROD

1шт.

3-6

71N6-03440

PIN-1

2шт.

3-7

71N6-03450

PIN

1шт.

3-8

S560-050006

E-RING

3шт.

4

71LF-01261

COVER-SIDE DOOR/LH

FIXED WINDOW

1шт.

4

71LF-07080

COVER-SIDE DOOR/LH

SLIDING WINDOW

1шт.

5

S131-051546

SCREW-W/WASHER

FIXED WINDOW

4шт.

5

S131-051546

SCREW-W/WASHER

SLIDING WINDOW

6шт.

6

S131-061646

SCREW-W/WASHER

8шт.

7

71LB-01271

PAD-RUBBER

1шт.

8

17E1-5146

BUMPER-DOOR

2шт.

9

71N6-03650

STRIKER

1шт.

10

S203-101006

NUT-HEX

4шт.

11

E171-1176

ASHTRAY

1шт.

12

71LF-01291

HANDRAIL WA

FIXED WINDOW

1шт.

12

71LF-07110

HANDRAIL WA

SLIDING WINDOW

4шт.

13

S035-082026

BOLT-W/WASHER

FIXED WINDOW

4шт.

13

S035-082026

BOLT-W/WASHER

SLIDING WINDOW

6шт.

14

S141-040162

SCREW-FLAT HD

2шт.

15

@

SCREW

NOT

10шт.

16

S141-060156

SCREW-FLAT HD

#0001

4шт.
