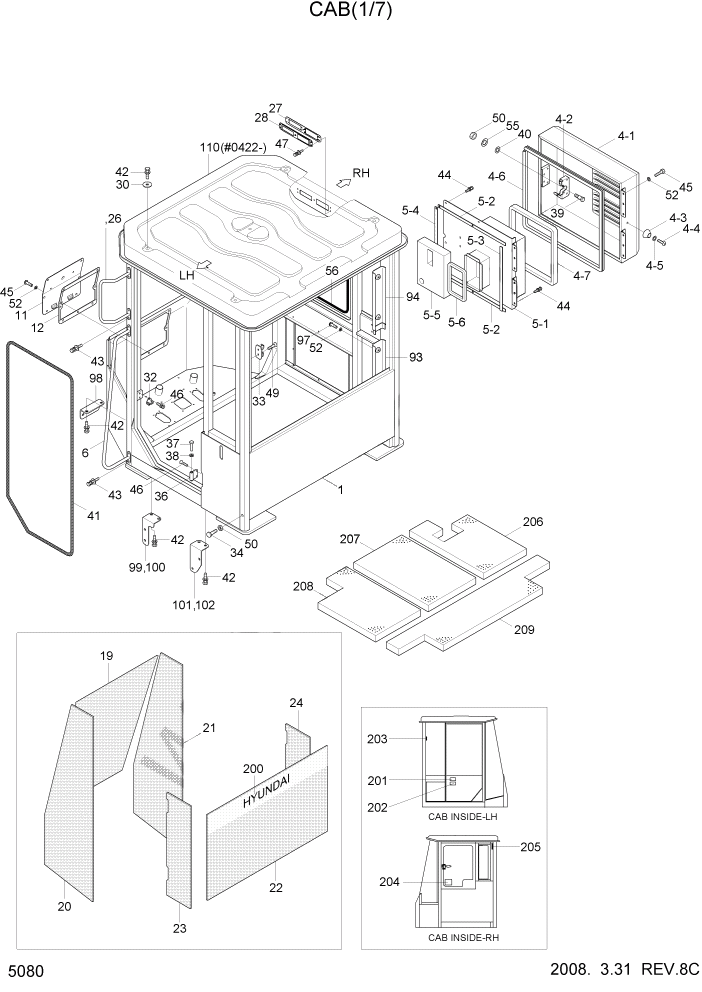

Запчасти Hyundai HL740TM-7 PAGE 5080 CAB(1/7) СТРУКТУРА

*

71LF-00013

CAB ASSY

FIXED WINDOW #0001 - #0079

1шт.

*

71LF-00014

CAB ASSY

FIXED WINDOW #0080 - #0130

1шт.

*

71LF-00015

CAB ASSY

FIXED WINDOW #0131 - #0149

1шт.

*

71LF-00016

CAB ASSY

FIXED WINDOW #0150 - #0193

1шт.

*

71LF-00017

CAB ASSY

FIXED WINDOW #0194 - #0393

1шт.

*

71LF-00018

CAB ASSY

FIXED WINDOW #0394 - #0405

1шт.

*

71LF-00019

CAB ASSY

FIXED WINDOW #0406 - #0412

1шт.

*

71LF-00050

CAB ASSY

FIXED WINDOW #0413 - #0421

1шт.

*

71LF-00051

CABIN ASSY

FIXED WINDOW #0422

1шт.

*

71LF-00070

CAB ASSY-FIXED WIN

LOW NOISE #0218 - #0393

1шт.

*

71LF-00071

CAB ASSY-FIXED WIN

LOW NOISE #0394 - #0405

1шт.

*

71LF-00072

CAB ASSY-FIXED WIN

LOW NOISE #0406 - #0412

1шт.

*

71LF-00073

CAB ASSY-FIXED WIN

LOW NOISE #0413 - #0421

1шт.

*

71LF-00074

CAB ASSY-FIXED WIN

LOW NOISE #0422

1шт.

*

71LF-00021

CAB ASSY

SLIDING WINDOW #0001 - #0079

1шт.

*

71LF-00022

CAB ASSY

SLIDING WINDOW #0080 - #0130

1шт.

*

71LF-00023

CAB ASSY

SLIDING WINDOW #0131 - #0149

1шт.

*

71LF-00024

CAB ASSY

SLIDING WINDOW #0150 - #0193

1шт.

*

71LF-00025

CAB ASSY

SLIDING WINDOW #0194 - #0393

1шт.

*

71LF-00026

CAB ASSY

SLIDING WINDOW #0394 - #0405

1шт.

*

71LF-00027

CAB ASSY

SLIDING WINDOW #0406 - #0412

1шт.

*

71LF-00028

CAB ASSY

SLIDING WINDOW #0413 - #0421

1шт.

*

71LF-00029

CAB ASSY

SLIDING WINDOW #0422

1шт.

*

71LF-00080

CAB ASSY-SLIDING WIN

LOW NOISE #0218 - #0393

1шт.

*

71LF-00081

CAB ASSY-SLIDING WIN

LOW NOISE #0394 - #0405

1шт.

*

71LF-00082

CAB ASSY-SLIDING WIN

LOW NOISE #0406 - #0412

1шт.

*

71LF-00083

CAB ASSY-SLIDING WIN

LOW NOISE #0413 - #0421

1шт.

*

71LF-00084

CAB ASSY-SLIDING WIN

LOW NOISE #0422

1шт.

*-1

71LF-01012

CAB SUB ASSY

FIXED WINDOW #0130

1шт.

*-1

71LF-01013

CAB SUB ASSY

FIXED WINDOW #0131 - #0149

1шт.

*-1

71LF-01014

CAB SUB ASSY

FIXED WINDOW #0150 - #0193

1шт.

*-1

71LF-01015

CAB SUB ASSY

FIXED WINDOW #0194 - #0393

1шт.

*-1

71LF-01016

CAB SUB ASSY

FIXED WINDOW #0394 - #0412

1шт.

*-1

71LF-01017

CAB SUB ASSY

FIXED WINDOW #0413

1шт.

*-1

71LF-07000

CAB SUB ASSY

SLIDING WINDOW #0130

1шт.

*-1

71LF-07001

CAB SUB ASSY

SLIDING WINDOW #0131 - #0149

1шт.

*-1

71LF-07002

CAB SUB ASSY

SLIDING WINDOW #0150 - #0193

1шт.

*-1

71LF-07003

CAB SUB ASSY

SLIDING WINDOW #0194 - #0393

1шт.

*-1

71LF-07004

CAB SUB ASSY

SLIDING WINDOW #0394 - #0412

1шт.

*-1

71LF-07005

CAB SUB ASSY

SLIDING WINDOW #0413

1шт.

1

71LF-02012

CAB WA

#0193

1шт.

1

71LF-02013

CAB WA

#0194 - #0393

1шт.

1

71LF-02014

CAB WA

#0394

1шт.

4

71LF-01041

MAIN DOOR ASSY

1шт.

4-1

71LF-06010

MAIN DOOR WA

1шт.

4-2

71L7-01293

LATCH ASSY

1шт.

4-3

74L3-04460

CUSHION-RUBBER

1шт.

4-4

S161-050256

SCREW-CROSS ROUND

1шт.

4-5

S403-052006

WASHER-PLAIN

1шт.

4-6

S771-021500

WEATHER STRIP

1шт.

4-7

71LF-06070

PAD-RUBBER

1шт.

5

71LF-01051

COVER ASSY-FILTER

1шт.

5-1

71LF-06270

COVER WA-FILTER

1шт.

5-2

71LF-06280

PAD-RUBBER

2шт.

5-3

71LF-06290

PAD-RUBBER

1шт.

5-4

71LF-06300

PAD-RUBBER

1шт.

5-5

71LF-06310

SPONGE

1шт.

5-6

71LF-06320

SPONGE

1шт.

6

71LF-01061

HANDRAIL WA

1шт.

11

71LF-01111

COVER WA-WIPER

1шт.

12

71LF-01121

PAD-RUBBER

1шт.

15

71LF-01151

COVER-ROOF

#0001

1шт.

19

71LF-01191

GLASS-FRONT

1шт.

20

71LF-01201

GLASS-FRONT/LH

1шт.

21

71LF-01211

GLASS-FRONT/RH

1шт.

22

71LF-01531

GLASS-REAR

1шт.

23

71LF-01541

GLASS-SIDE/LH

1шт.

24

71LF-01551

GLASS-SIDE/RH

1шт.

25

71LB-01692

HANDRAIL WA-LH

1шт.

26

71LB-01702

HANDRAIL WA-RH

1шт.

27

71LB-01151

PLATE WA-CASSETTE

1шт.

28

71LB-01161

COVER-CASSETTE

#0221

1шт.

28

71LB-01162

COVER-CASSETTE

#0222

1шт.

30

71LB-01111

WASHER-ROOF COVER

5шт.

32

71N6-02770

STRIKER

1шт.

33

71N6-02920

HOOK-COAT

1шт.

34

71EH-13150

RUBBER-BUMPER

4шт.

36

71LB-01600

HINGE

5шт.

37

74L3-05330

PIN-HINGE

5шт.

38

74L3-04450

WASHER-COPPER

5шт.

39

74L3-04380

STRIKER-DOOR

1шт.

40

74L3-00710

WASHER-STRIKER

1шт.

41

S771-039500

WEATHER STRIP

1шт.

42

S037-122552

BOLT-W/WASHER

14шт.

43

S037-102026

BOLT-W/WASHER

12шт.

44

S037-102026

BOLT-W/WASHER

12шт.

45

S175-080256

SCREW-SOCKET RD HD

12шт.

46

S145-080166

SCREW-FLAT HD

2шт.

47

S132-061656

SCREW-W/WASHER

5шт.

49

S141-040206

SCREW-FLAT HD

2шт.

50

S203-101006

NUT-HEX

2шт.

52

S403-082006

WASHER-PLAIN

2шт.

55

S441-100006

WASHER-HARDENED

1шт.

56

S771-025000

WEATHER STRIP

4шт.

93

71LF-20170

COVER-HARNESS(LOW)

1шт.

94

71LB-20151

COVER-HARNESS(UP)

1шт.

97

S161-080206

SCREW-CROSS R/ROUND

1шт.

98

71LF-01870

PLATE WA-FRONT

1шт.

99

71LF-01880

PLATE WA-LH/FR

1шт.

100

71LF-01890

PLATE WA-RH/FR

1шт.

101

71LF-01900

PLATE WA-LH/RR

1шт.

102

71LF-01910

PLATE WA-RH/RR

1шт.

110

71LF-01151

COVER-ROOF

#0422

1шт.

200

91LF-21000

ADHESIVE SUN SCREEN

#0080 - #0405

1шт.

200

91LF-21010

ADHESIVE SUN SCREEN

#0406

1шт.

201

91LB-01230

DECAL-MAX H/REACH

LOW NOISE #0218

1шт.

202

91LB-01240

DECAL-ROLL OVER

LOW NOISE #0218

1шт.

203

91LB-01340

DECAL-HAMMER

LOW NOISE #0218

1шт.

204

91N6-07261

ALTERNATE EXIT

LOW NOISE #0218

1шт.

205

91N6-07290

DECAL-FIRE

LOW NOISE #0218

1шт.

206

71LF-11210

SPONGE-BOTTOM/LOW(1)

LOW NOISE #0218

1шт.

207

71LF-11220

SPONGE-BOTTOM/LOW(2)

LOW NOISE #0218

1шт.

208

71LF-11230

SPONGE-BOTTOM/LOW(3)

LOW NOISE #0218

1шт.

209

71LF-11240

SPONGE-BOTTOM/LOW(4)

LOW NOISE #0218

1шт.

*-2

@

ELECTRIC CAB ASSY

NOT

1шт.
