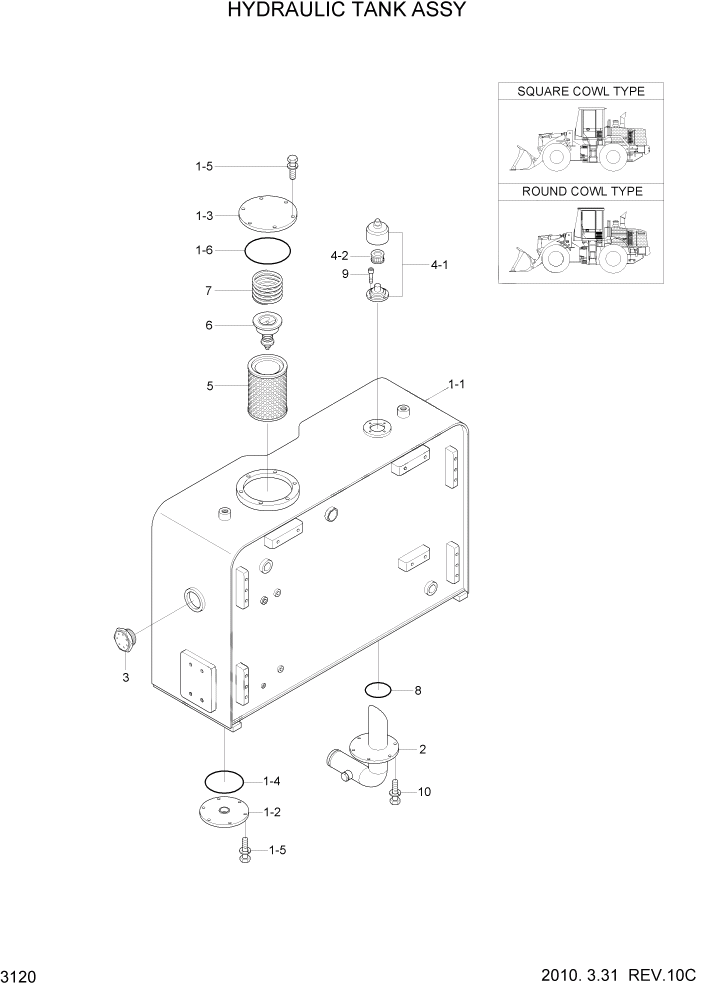

Запчасти Hyundai HL740TM-7 PAGE 3120 HYDRAULIC TANK ASSY ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

HYD TANK ASSY

NOT

1шт.

1

31LF-60023

HYD TANK SUB ASSY

SQUARE COWL

1шт.

1

31LF-60190

HYD TANK SUB ASSY

ROUND COWL TYPE #0050 - #0105

1шт.

1

31LF-60191

HYD TANK SUB ASSY

ROUND COWL TYPE #0106 - #0412

1шт.

1

31LF-60310

HYD TANK SUB ASSY

ROUND COWL TYPE #0413

1шт.

1-1

31LF-60072

HYD TANK WA

SQUARE COWL

1шт.

1-1

31LF-60200

HYD TANK WA

ROUND COWL TYPE #0050 - #0105

1шт.

1-1

31LF-60201

HYD TANK WA

ROUND COWL TYPE #0106 - #0412

1шт.

1-1

31LF-60320

HYD TANK WA

ROUND COWL TYPE #0413

1шт.

1-2

31LD-60050

COVER WA

1шт.

1-3

31E3-4526

COVER

1шт.

1-4

S632-140001

O-RING

1шт.

1-5

S037-102552

BOLT-W/WASHER

12шт.

1-6

S632-165001

O-RING

1шт.

2

31LF-60090

PIPE ASSY

#0448

1шт.

2

31LF-60500

PIPE ASSY

#0449

1шт.

3

31L1-4047

GAUGE-SIGHT

1шт.

4

31EE-02100

AIR BREATHER

1шт.

4-1

PM102-0001R

BODY

1шт.

4-2

31EE-02110

ELEMENT

1шт.

5

31L1-4041

ELEMENT ASSY

1шт.

6

E131-0256

VALVE-BYPASS

1шт.

7

E131-0220

SPRING

1шт.

8

S632-140001

O-RING

1шт.

9

S109-060156

BOLT-SOCKET

4шт.

10

S037-102552

BOLT-W/WASHER

6шт.
