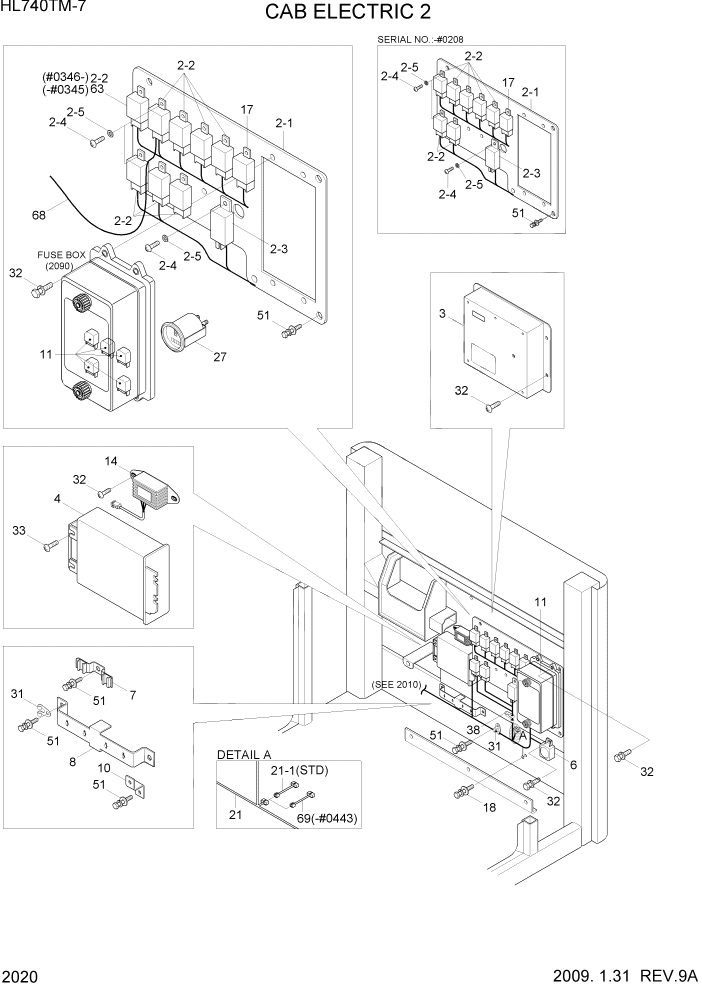

Запчасти Hyundai HL740TM-7 PAGE 2020 CAB ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21LF-20161

RELAY BOARD ASSY

#0208

1шт.

2

21LF-20162

RELAY BOARD ASSY

#0209 - #0345

1шт.

2

21LF-20163

RELAY BOARD ASSY

#0346 - #0436

1шт.

2

21LF-20164

RELAY BOARD ASSY

#0437

1шт.

2-1

21LF-20150

PLATE WA

#0208

1шт.

2-1

21LF-20151

PLATE-RELAY BOARD

#0209 - #0345

1шт.

2-1

21LF-20152

PLATE-RELAY BOARD

#0346

1шт.

2-2

21E4-0011

RELAY-4P

#0345

7шт.

2-2

21E4-0011

RELAY-4P

#0346

8шт.

2-3

21ER-60700

FLASHER UNIT ASSY

#0127

1шт.

2-3

21ER-60702

FLASHER UNIT ASSY

#0128 - #0436

1шт.

2-3

21ER-60703

FLASHER UNIT

#0437

1шт.

2-4

S161-050102

SCREW-CROSS R/ROUND

#0345

8шт.

2-4

S161-050102

SCREW-CROSS R/ROUND

#0346

9шт.

2-5

S411-050002

WASHER-SPRING

#0345

8шт.

2-5

S411-050002

WASHER-SPRING

#0346

9шт.

3

21LB-40101

MCU

#0304

1шт.

3

21LB-40102

MCU

#0305

1шт.

4

21L7-13181

CONTROL UNIT

#0001

1шт.

6

21E4-2025

BUZZER-WARNING

1шт.

7

21N4-01130

PLATE-CLIP

1шт.

8

21LB-40070

PLATE

1шт.

10

21E7-0612

PLATE-CONNECTOR

1шт.

11

24L1-05100

RELAY

5шт.

14

21N8-20201

DC-DC CONVERTER ASSY

OPT

1шт.

R17

21E4-0011

RELAY-4P

RIDE CONTROL

1шт.

18

S037-102022

BOLT-W/WASHER

1шт.

21

@

HARNESS-MAIN

NOT

1шт.

21-1

@

HARNESS-MAIN

NOT #0394

1шт.

27

21N4-11070

HOUR METER ASSY

OPT

1шт.

31

S593-000902

CLIP-HARNESS

2шт.

32

S131-061546

SCREW-W/WASHER

11шт.

33

S131-051546

SCREW-W/WASHER

2шт.

38

S593-000652

CLIP-HARNESS

2шт.

51

S035-081522

BOLT-W/WASHER

7шт.

65

21E4-0011

RELAY-4P

FUEL WARMER #0209 - #0345

1шт.

68

21LF-60110

EXT-HARNESS(COUPLER)

QUICK COUPLER #0001

1шт.

69

21LG-10160

HARNESS-PLUG

DUAL PEDAL #0394 - #0443

1шт.
