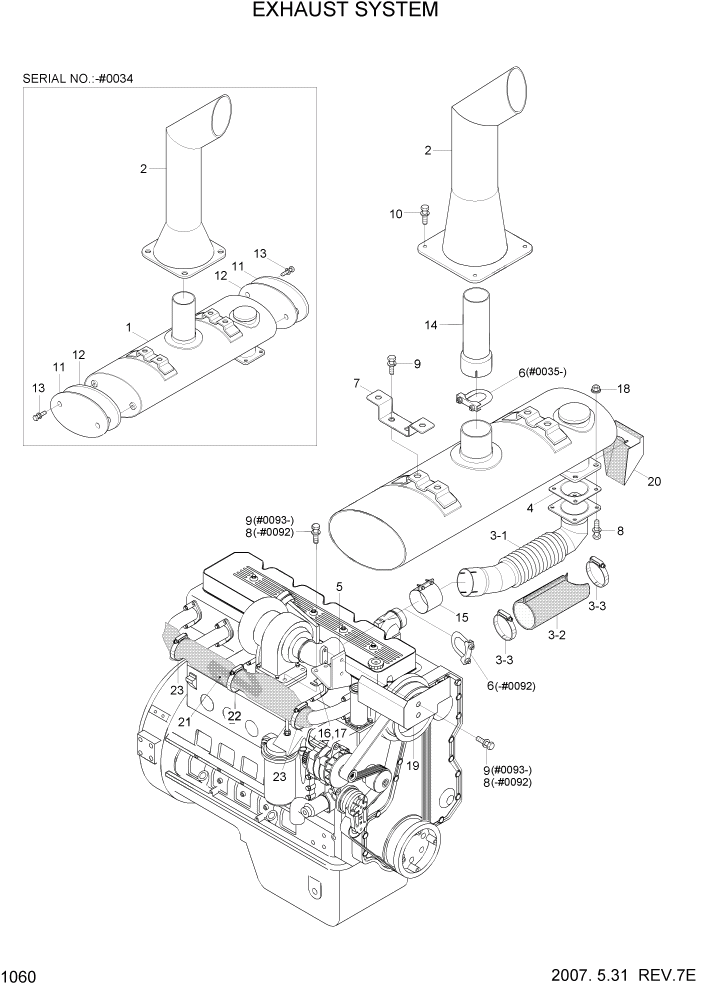

Запчасти Hyundai HL740TM-7 PAGE 1060 EXHAUST SYSTEM СИСТЕМА ДВИГАТЕЛЯ

1

11LF-50011

MUFFLER WA

#0034

1шт.

1

11LF-50250

MUFFLER ASSY

#0035

1шт.

2

11LD-50020

PIPE WA-TAIL

#0034

1шт.

2

11LB-50090

PIPE WA-TAIL

#0035

1шт.

3

11LF-50020

PIPE WA

SQUARE COWL #0034

1шт.

3

11LF-50310

BELLOWS PIPE ASSY

SQUARE COWL #0035

1шт.

3

11LF-50330

BELLOWS PIPE ASSY

ROUND COWL TYPE #0050 - #0393

1шт.

3

11LF-50331

BELLOWS PIPE ASSY

ROUND COWL TYPE #0394

1шт.

3-1

11LF-50020

PIPE WA

SQUARE COWL #0035

1шт.

3-1

11LF-50340

PIPE WA

ROUND COWL TYPE #0050

1шт.

3-2

11LF-50350

INSULATOR

#0035 - #0393

1шт.

3-2

11LF-50351

INSULATOR

#0394

1шт.

3-3

S520-090000

CLAMP-HOSE

#0035

2шт.

4

14L3-00220

GASKET

1шт.

5

11L7-50070

BARCKET WA

1шт.

6

11L7-50050

CLAMP ASSY

#0034

1шт.

6

11L7-50050

CLAMP ASSY

#0035 - #0092

2шт.

6

11L7-50050

CLAMP ASSY

#0093

1шт.

7

11LF-50030

BRACKET WA

2шт.

8

S037-102552

BOLT-W/WASHER

#0092

8шт.

8

S037-103556

BOLT-W/WASHER

#0093

4шт.

9

S037-103052

BOLT-W/WASHER

#0092

4шт.

9

S037-103056

BOLT-W/WASHER

#0093

8шт.

10

S037-123052

BOLT-W/WASHER

8шт.

11

14L3-00250

PLATE-SCREEN

#0034

2шт.

12

14L3-00260

INSULATOR

#0034

2шт.

13

S037-122052

BOLT-W/WASHER

#0034

4шт.

14

11LF-50320

PIPE-EXTENSION

#0035

1шт.

15

11N6-30040

SEAL CLAMP ASSY

#0093

1шт.

16

11LF-50370

SHIM(1.0T)

#0093

1шт.

17

11LF-50380

SHIM(0.5T)

#0093

1шт.

18

S285-101006

NUT-FLANGED

#0093

4шт.

19

11LF-50390

SCREEN-T/CHARGER

#0093

1шт.

20

11LF-50400

SCREEN-FLANGE

SQUARE COWL #0093

1шт.

20

11LF-50410

SCREEN-FLANGE

ROUND COWL TYPE #0093

1шт.

21

11LF-50420

INSULATOR

#0093

1шт.

22

S520-080000

CLAMP-HOSE

#0093

1шт.

23

S520-070000

CLAMP-HOSE

#0093

2шт.
