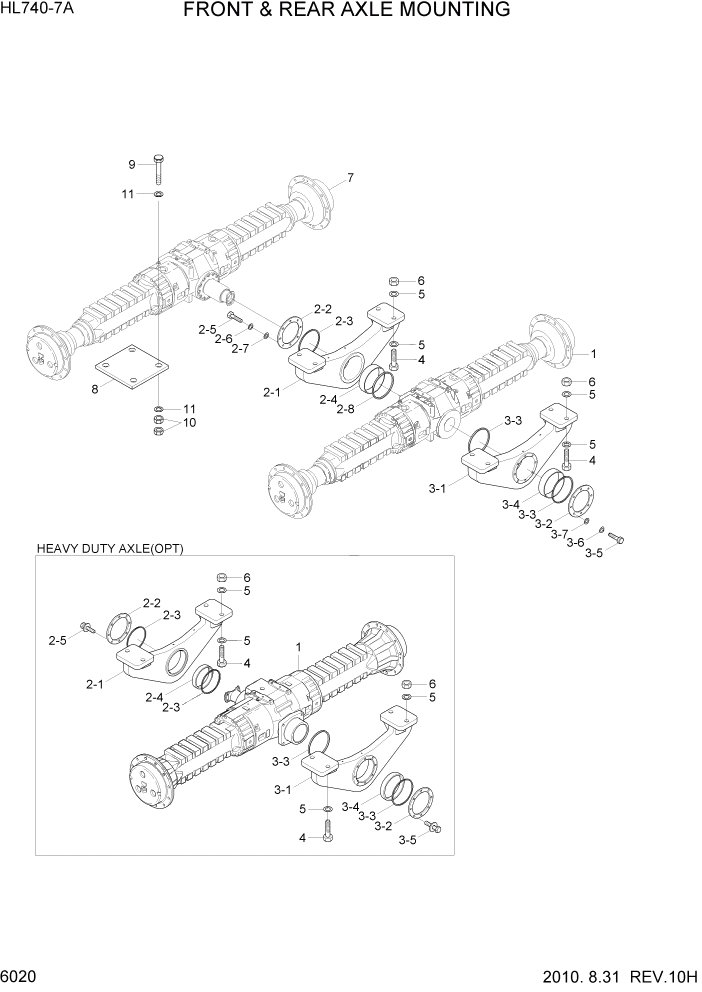

Запчасти Hyundai HL740-7A PAGE 6020 FRONT & REAR AXLE MOUNTING СИЛОВАЯ СИСТЕМА

1

81LF-20010

REAR AXLE ASSY

CONVENTIONAL

1шт.

1

81LF-20020

REAR AXLE ASSY

LIMITED SLIP

1шт.

1

81LF-20120

REAR AXLE ASSY

HEAVY DUTY AXLE #0390

1шт.

2

81LG-20010

SUPPORT ASSY-FRONT

1шт.

2

81LF-20410

SUPPORT ASSY-FRONT

HEAVY DUTY AXLE #0390

1шт.

2-1

81LG-20030

SUPPORT WA-FRONT

1шт.

2-1

81LF-20430

SUPPORT WA-FRONT

HEAVY DUTY AXLE #0390

1шт.

2-2

81L7-20031

COVER

1шт.

2-2

81LN-20060

COVER

HEAVY DUTY AXLE #0390

1шт.

2-3

81L7-20130

SEAL-DUST

1шт.

2-3

81LN-20040

SEAL-DUST

HEAVY DUTY AXLE #0390

1шт.

2-4

81L7-20090

BUSHING

1шт.

2-4

81LF-20460

BUSHING

HEAVY DUTY AXLE #0390

1шт.

2-5

S015-080206

BOLT-HEX

8шт.

2-5

S035-082056

BOLT-W/WASHER

HEAVY DUTY AXLE #0390

8шт.

2-6

S411-080006

WASHER-SPRING

8шт.

2-7

S403-08200B

WASHER-PLAIN

8шт.

2-8

81L7-20060

SEAL-DUST

1шт.

3

81LG-20020

SUPPORT ASSY-REAR

1шт.

3

81LF-20420

SUPPORT ASSY-REAR

HEAVY DUTY AXLE #0390

1шт.

3-1

81LG-20040

SUPPORT WA-REAR

1шт.

3-1

81LF-20440

SUPPORT WA-REAR

HEAVY DUTY AXLE #0390

1шт.

3-2

81L7-20031

COVER

1шт.

3-2

81LN-20060

COVER

HEAVY DUTY AXLE #0390

1шт.

3-3

81L7-20060

SEAL-DUST

2шт.

3-3

81LN-20040

SEAL-DUST

HEAVY DUTY AXLE #0390

2шт.

3-4

81L7-20100

BUSHING

1шт.

3-4

81LF-20460

BUSHING

HEAVY DUTY AXLE #0390

1шт.

3-5

S015-080206

BOLT-HEX

8шт.

3-5

S035-082056

BOLT-W/WASHER

HEAVY DUTY AXLE #0390

8шт.

3-6

S411-080006

WASHER-SPRING

8шт.

3-7

S403-08200B

WASHER-PLAIN

8шт.

4

S018-24095D

BOLT-HEX

8шт.

5

S441-240006

WASHER-HARDENED

16шт.

6

S206-241006

NUT-HEX

8шт.

7

81L7-10030

FRONT AXLE ASSY

LIMITED SLIP

1шт.

7

81L7-10040

FRONT AXLE ASSY

NO SPIN

1шт.

8

81L7-10012

PLATE

2шт.

9

S018-24280D

BOLT-HEX

8шт.

10

S206-241006

NUT-HEX

16шт.

11

S441-240006

WASHER-HARDENED

16шт.
