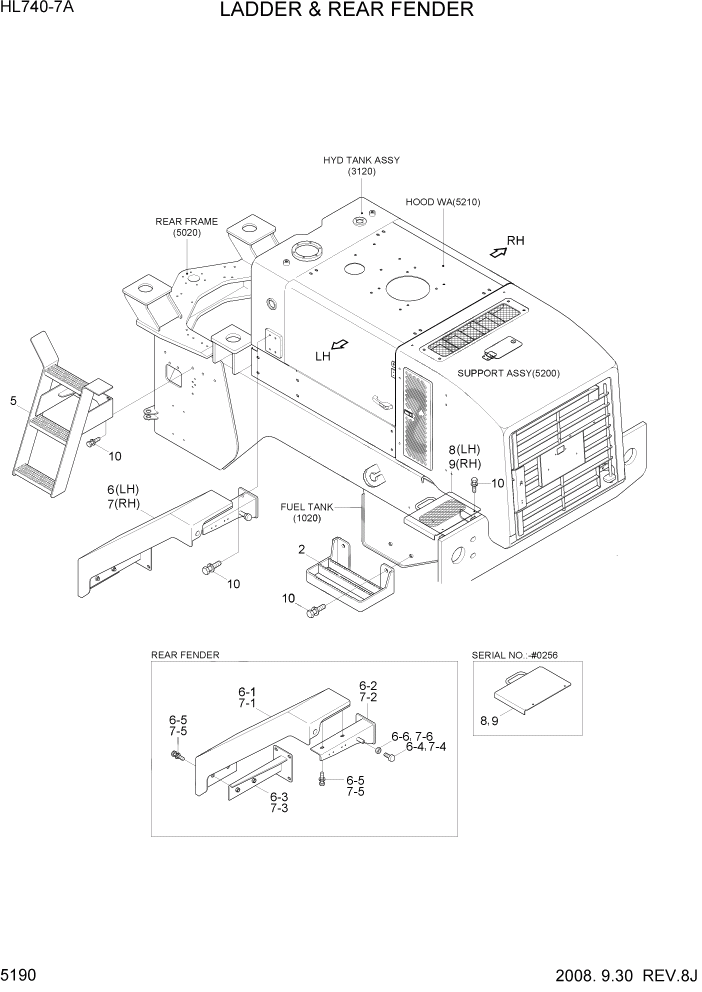

Запчасти Hyundai HL740-7A PAGE 5190 LADDER & REAR FENDER СТРУКТУРА

2

71LF-60240

FOOT BOARD WA

2шт.

5

71LF-60011

LADDER WA

1шт.

6

71LF-73010

REAR FENDER ASSY-LH

1шт.

6-1

71LF-73030

REAR FENDER WA-LH

1шт.

6-2

71LF-73050

SUPPORT WA-LH

1шт.

6-3

71LF-73110

SUPPORT WA-LH

1шт.

6-4

71EH-13150

RUBBER-BUMPER

1шт.

6-5

S037-123056

BOLT-W/WASHER

4шт.

6-6

S285-101006

NUT-FLANGED

1шт.

7

71LF-73020

REAR FENDER ASSY-RH

1шт.

7-1

71LF-73040

REAR FENDER WA-RH

1шт.

7-2

71LF-73060

SUPPORT WA-RH

1шт.

7-3

71LF-73120

SUPPORT WA-RH

1шт.

7-4

71EH-13150

RUBBER-BUMPER

1шт.

7-5

S037-123056

BOLT-W/WASHER

4шт.

7-6

S285-101006

NUT-FLANGED

1шт.

8

71LF-70070

COVER WA-BATT(LH)

#0256

1шт.

8

71LF-70071

COVER WA-BATT(LH)

#0257

1шт.

8-1

71LF-70070

COVER WA-BATT(LH)

#0257

1шт.

8-2

91E1-26300

STEP TREAD

#0257

1шт.

9

71LF-70080

COVER WA-BATT(RH)

#0256

1шт.

9

71LF-70081

COVER WA-BATT(RH)

#0257

1шт.

9-1

71LF-70080

COVER WA-BATT(RH)

#0257

1шт.

9-2

91E1-26300

STEP TREAD

#0257

1шт.

10

S037-123056

BOLT-W/WASHER

28шт.
