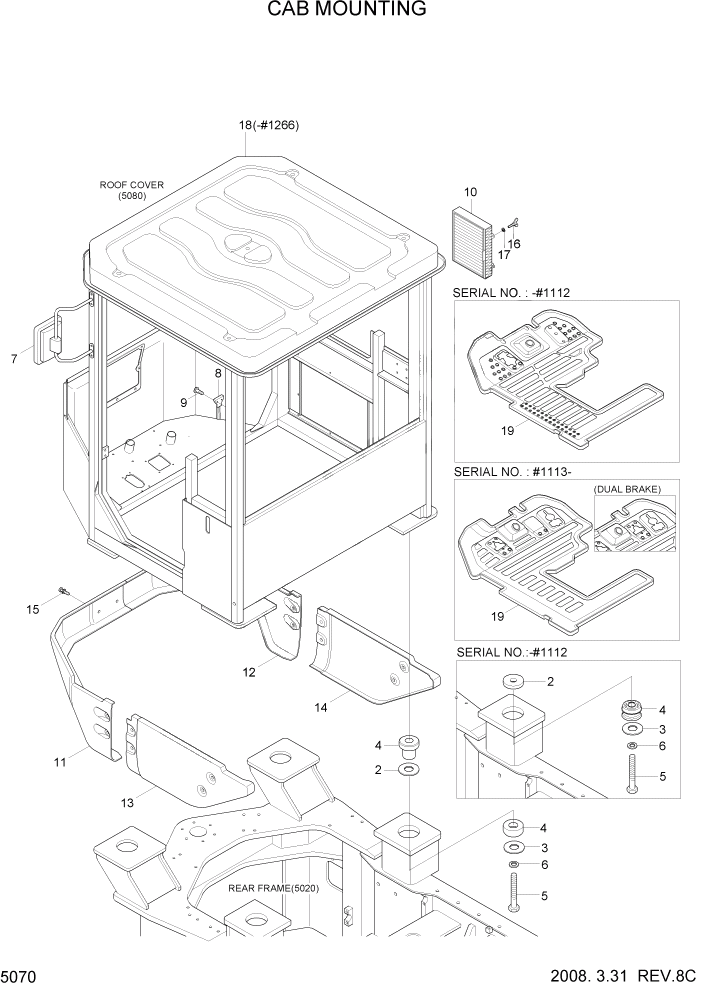

Запчасти Hyundai HL740-7 PAGE 5070 CAB MOUNTING СТРУКТУРА

2

71LF-00190

SPACER-MOUNT

#0559

4шт.

2

74L1-10061

SPACER-MOUNT

#0560

4шт.

3

71L7-01800

WASHER-SNUBBING

#0559

4шт.

3

71LB-00240

WASHER-SNUBBING

#0560

4шт.

4

71L7-01780

RUBBER-MOUNT

#0559

4шт.

4

71LF-00230

ISOLATION MOUNT-CAB

#0560

4шт.

5

S017-241402

BOLT-HEX

#0559

4шт.

5

S018-271652

BOLT-HEX

#0560 - #0578

4шт.

5

S018-27150W

BOLT-HEX

#0579

4шт.

6

S403-241002

WASHER-PLAIN

#0559

4шт.

6

S403-271002

WASHER-PLAIN

#0560

4шт.

7

71LB-00111

MIRROR ASSY-EXT

#0001

2шт.

8

71E1-60340

HAMMER-SAFETY

1шт.

9

S141-040102

SCREW-FLAT HD

2шт.

10

71LB-00290

FILTER ASSY

1шт.

11

71LF-00121

FRONT COVER-LH

1шт.

12

71LF-00131

FRONT COVER-RH

1шт.

13

71LF-00141

SIDE COVER-LH

1шт.

14

71LF-00151

SIDE COVER-RH

1шт.

15

S037-122552

BOLT-W/WASHER

10шт.

16

S091-050152

BOLT-WING

2шт.

17

S401-052002

WASHER-PLAIN

2шт.

18

71LF-01151

COVER-ROOF

SEE 5080 #0021 - #1266

1шт.

19

71LF-20071

MAT-FLOOR

SEE 5130 #0060 - #1112

1шт.

19

71LF-21012

MAT-FLOOR

STD #1113

1шт.

19

71LF-21070

MAT-FLOOR

DUAL PEDAL #1113

1шт.
