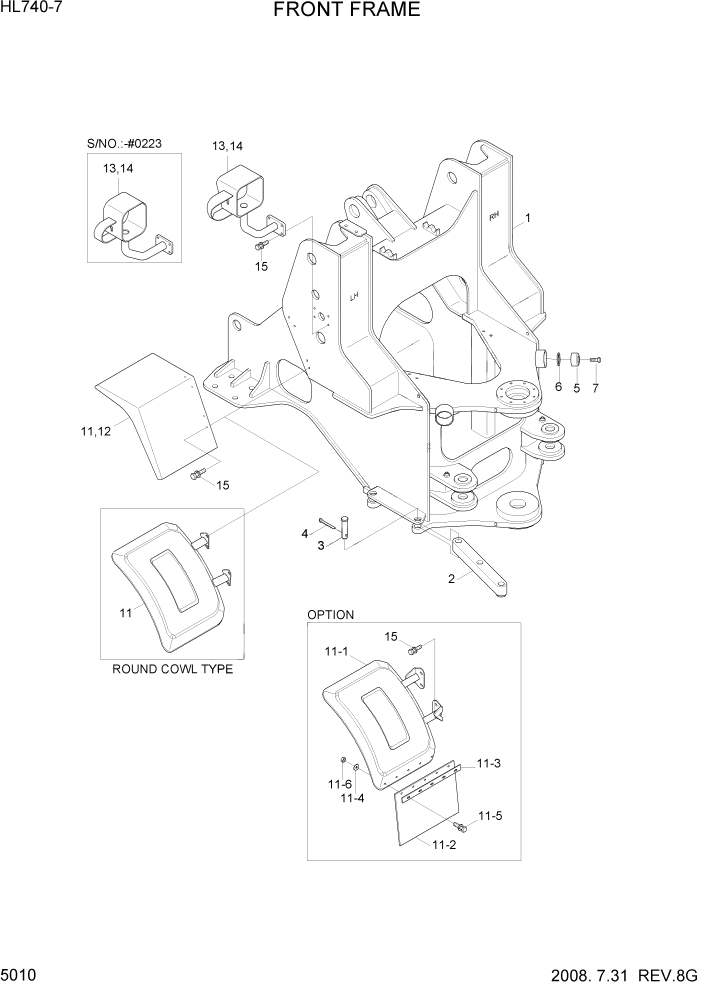

Запчасти Hyundai HL740-7 PAGE 5010 FRONT FRAME СТРУКТУРА

1

41LF-00011

FRONT FRAME WA

SQUARE COWL #0234

1шт.

1

41LF-00012

FRONT FRAME WA

SQUARE COWL #0235

1шт.

1

43LF-00010

FRONT FRAME WA

ROUND COWL TYPE #0211 - #0234

1шт.

1

43LF-00011

FRONT FRAME WA

ROUND COWL TYPE #0235

1шт.

2

41LF-09010

BAR

1шт.

3

51L7-00430

PIN-CLEVIS

2шт.

4

41L1-1074

PIN

2шт.

5

44L3-00541

STOPPER

2шт.

6

44L3-00550

SHIM

2шт.

7

S017-120452

BOLT-HEX

2шт.

11

71LF-72010

FENDER WA-FRONT

ROUND COWL TYPE #0211 - #1452

2шт.

11

71LF-72011

FENDER WA-FRONT

ROUND COWL TYPE #1453

2шт.

11

71LD-72050

FENDER ASSY-LH

ROUND COWL TYPE #0993 - #1452

1шт.

11

71LD-72051

FENDER ASSY-LH

ROUND COWL TYPE #1453

1шт.

11

71LD-72060

FENDER ASSY-RH

ROUND COWL TYPE #0993 - #1452

1шт.

11

71LD-72061

FENDER ASSY-RH

ROUND COWL TYPE #1453

1шт.

11-1

71LD-72070

FENDER WA-LH

ROUND COWL TYPE #0993 - #1452

1шт.

11-1

71LD-72071

FENDER WA-LH

ROUND COWL TYPE #1453

1шт.

11-1

71LD-72080

FENDER WA-RH

ROUND COWL TYPE #0993 - #1452

1шт.

11-1

71LD-72081

FENDER WA-RH

ROUND COWL TYPE #1453

1шт.

11-2

71LD-72090

RUBBER-FENDER

ROUND COWL TYPE #0993

1шт.

11-3

71LD-72100

PLATE

ROUND COWL TYPE #0993

1шт.

11-4

71LB-72130

WASHER-WIDE

ROUND COWL TYPE #0993

5шт.

11-5

S037-122556

BOLT-W/WASHER

ROUND COWL TYPE #0993

5шт.

11-6

S205-121006

NUT-HEX

ROUND COWL TYPE #0993

5шт.

11

71LD-70010

FENDER WA-LH,FR

SQUARE COWL

1шт.

12

71LD-70020

FENDER WA-RH,FR

SQUARE COWL

1шт.

13

71LF-70092

LAMP BOX WA-LH

#0223

1шт.

13

71LF-72031

LAMP BOX WA-LH

#0224

1шт.

14

71LF-70102

LAMP BOX WA-RH

#0223

1шт.

14

71LF-72041

LAMP BOX WA-RH

#0224

1шт.

15

S037-123052

BOLT-W/WASHER

16шт.
