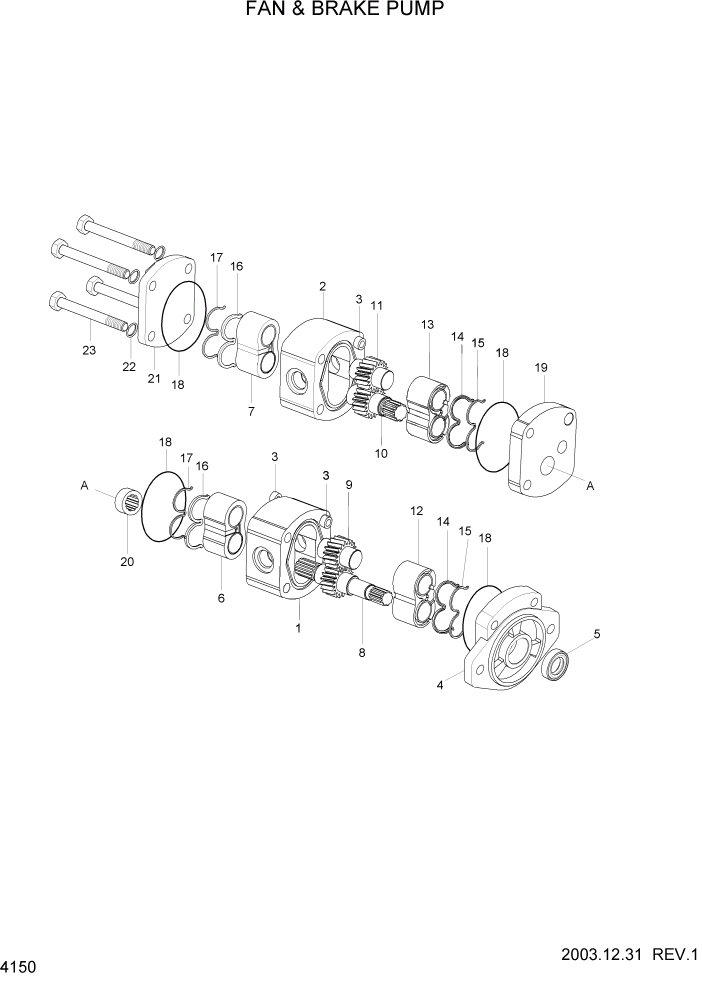

Запчасти Hyundai HL740-7 PAGE 4150 FAN & BRAKE PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LF-40010

FAN & BRAKE PUMP

#0001

1шт.

1

@

BODY

NOT

1шт.

2

@

BODY

NOT

1шт.

3

@

DOWEL PIN

NOT

6шт.

4

@

FRONT COVER

NOT

1шт.

K5

@

SHAFT SEAL

NOT

1шт.

6

@

BUSHING

NOT

1шт.

7

@

BUSHING

NOT

1шт.

8

@

DRIVER GEAR

NOT

1шт.

9

@

DRIVEN GEAR

NOT

1шт.

10

@

DRIVER GEAR

NOT

1шт.

11

@

DRIVEN GEAR

NOT

1шт.

12

@

BUSHING

NOT

1шт.

13

@

BUSHING

NOT

1шт.

K14

@

BUSH LOBE SEAL

NOT

2шт.

K15

@

BACKING RING

NOT

2шт.

K16

@

BUSH LOBE SEAL

NOT

2шт.

K17

@

BACKING RING

NOT

2шт.

K18

@

BODY SEAL

NOT

4шт.

19

@

INTERMEDIATE PLATE

NOT

1шт.

20

@

COUPLING

NOT

1шт.

21

@

REAR COVER

NOT

1шт.

22

@

SPRING WASHER

NOT

4шт.

23

@

SCREW

NOT

4шт.

K

ZUAH-00175

SEAL KIT(5,14-18)

1шт.
