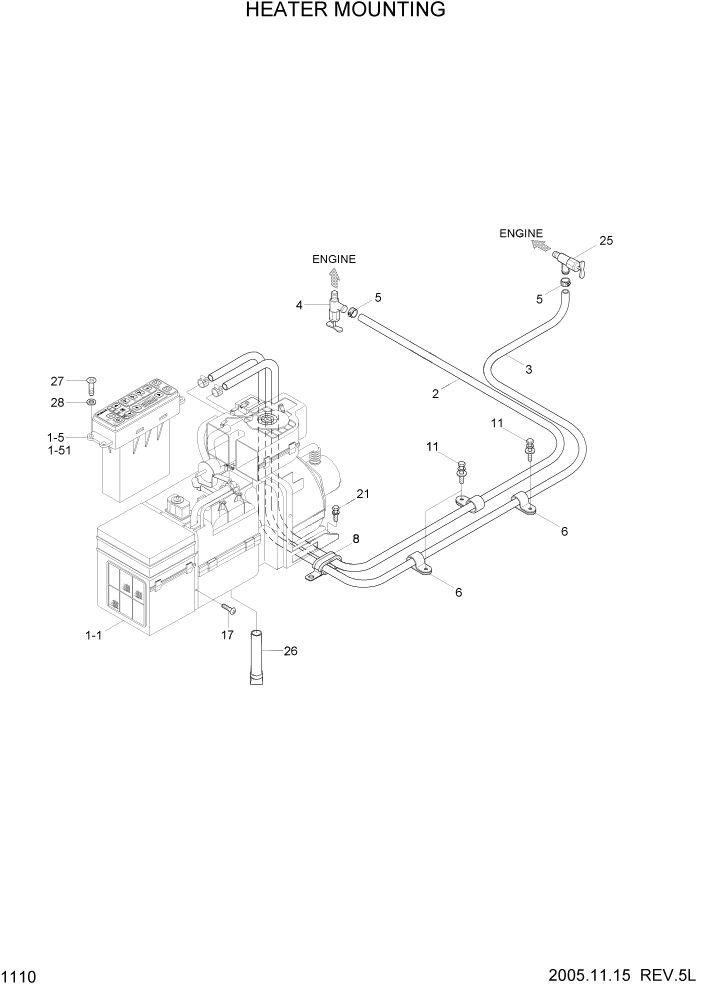

Запчасти Hyundai HL740-7 PAGE 1110 HEATER MOUNTING СИСТЕМА ДВИГАТЕЛЯ

1

11LF-90031

HEATER ASSY

#0081

1шт.

1

11LF-90032

HEATER ASSY

#0082 - #0643

1шт.

1

11LF-90033

HEATER ASSY

#0644

1шт.

1-1

@

HEATER UNIT

NOT

1шт.

1-5

11LF-90110

CONTROL ASSY

#0081

1шт.

1-5

11LF-90111

CONTROL ASSY

#0082 - #0643

1шт.

1-5

11LF-90112

CONTROL ASSY

#0644

1шт.

1-51

11LF-90210

DECAL(HEATER ONLY)

NOT SHOWN #0001

1шт.

2

11LB-90170

HOSE-RETURN

1шт.

3

11LC-90090

HOSE-HEATER RETURN

1шт.

4

11L7-90150

VALVE-HEATER

1шт.

5

S520-027000

CLAMP-HOSE

4шт.

6

S543-240002

CLAMP-TUBE

3шт.

8

S542-240002

CLAMP-TUBE

1шт.

11

S035-081522

BOLT-W/WASHER

4шт.

17

S152-040122

SCREW-TAPPING

4шт.

21

S037-122052

BOLT-W/WASHER

4шт.

25

14L1-01350

VALVE-HEATER

1шт.

26

11EK-92130

HOSE-DRAIN

1шт.

27

S161-050166

SCREW-CROSS R/ROUND

4шт.

28

S403-051002

WASHER-PLAIN

4шт.
