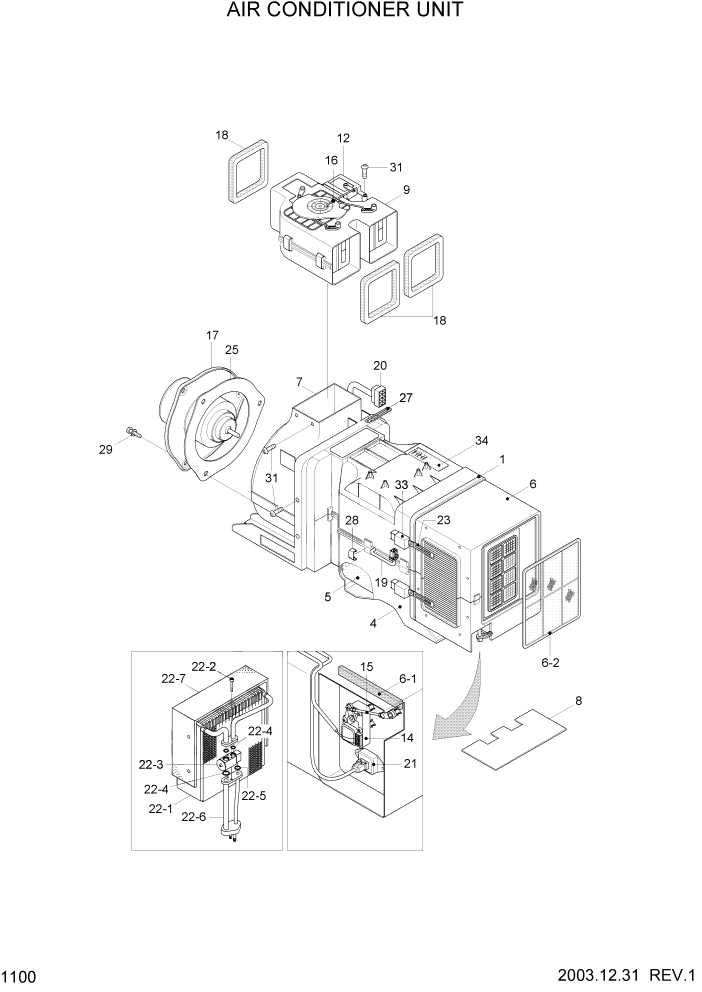

Запчасти Hyundai HL740-7 PAGE 1100 AIR CONDITIONER UNIT СИСТЕМА ДВИГАТЕЛЯ

*

11LF-90091

AIRCON UNIT

#0081

1шт.

*

11LF-90092

AIRCON UNIT

#0082 - #1632

1шт.

*

11LF-90251

AIRCON UNIT

#1633

1шт.

1

AH000089

HVAC CASE-UPP

#0081

1шт.

1

AH000090

HVAC CASE UPP ASSY

#0082

1шт.

4

AM12101400-0

HVAC CASE-LOW

1шт.

5

AM750001002

EVAP INSULATION LOW

1шт.

6

AH000055

INTAKE CASE ASSY

1шт.

6-1

AM70003600-3

SEAL-FILTER,FRESH

1шт.

6-2

11N6-90770

AIR FILTER-REFRESH

1шт.

6-3

11N6-90820

RELAY

2шт.

7

AM13100100-0

CASE-BLOWER

1шт.

8

A120150700-3

PLATE-SIDE

1шт.

9

AM14000700-2

DAMPER CASE ASSY

1шт.

12

AM50200200-1

MOTOR ACT-MODE

1шт.

14

11N6-90740

MOTOR ACT-INTAKE

1шт.

15

AM52300100-4

ROD-INTAKE

1шт.

16

AM53300200-4

ROD-CAM

1шт.

17

AM60001700-2

FAN & MOTOR ASSY

1шт.

18

AM70003800-4

SPONGE-SEALING

3шт.

19

A165400100-2

SENSOR-DUCT

1шт.

20

@

JUMP WIRE HARNESS

NOT

1шт.

21

AM860006012

RESISTOR ASSY

1шт.

22

11N6-90790

EVAP CORE ASSY

#1632

1шт.

22

11N6-90791

EVAP CORE ASSY

#1633

1шт.

22-1

A111056400-1

CORE ASSY-LAMI

1шт.

22-2

A111750100-4

BOLT-WRENCH,HEX

2шт.

22-3

11N6-90800

VALVE-EXPANSION

#1632

1шт.

22-3

11N6-90801

EXPANSION VALVE ASSY

#1633

1шт.

22-4

A305000212-2

O-RING

3шт.

22-5

A305000211-2

O-RING

1шт.

22-6

A112059600-2

PIPE ASSY

1шт.

22-7

A115004900-2

INSULATION-CORE

1шт.

23

3AH-0756

WIRE HOLDER

3шт.

25

3AH-0774

PACKING-MOTOR

1шт.

27

4AH-0643

HOLDER-WIRE

2шт.

28

4AH-0688

CLIP-CASE

9шт.

29

4AH-0886

SCREW

3шт.

31

K500531

SCREW

22шт.

34

AM99001201-3

NAME PLATE

2шт.
