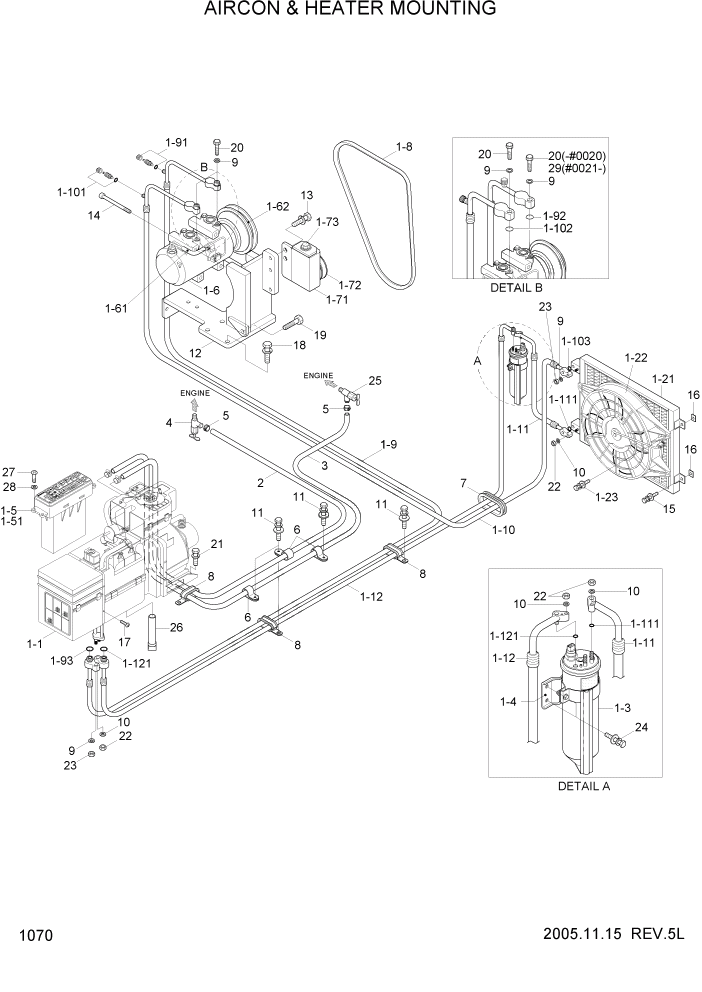

Запчасти Hyundai HL740-7 PAGE 1070 AIRCON & HEATER MOUNTING СИСТЕМА ДВИГАТЕЛЯ

1

11LF-90022

AIRCON & HEATER ASSY

#0081

1шт.

1

11LF-90023

AIRCON & HEATER ASSY

#0082 - #0134

1шт.

1

11LF-90024

AIRCON & HEATER ASSY

#0135 - #0643

1шт.

1

11LF-90025

AIRCON & HEATER ASSY

#0644 - #1632

1шт.

1

11LF-90027

AIRCON & HEATER ASSY

#1633

1шт.

1-1

@

AIRCON & HEATER UNIT

NOT

1шт.

1-2

11LC-90110

CONDENSER ASSY

#0643

1шт.

1-2

11LH-90090

COND & FAN ASSY

#0644

1шт.

1-21

A2100589000

CONDENSER

#0001 - #0643

1шт.

1-21

A2W01133

CONDENSER

#0644

1шт.

1-22

A2W00594

FAN & MOTOR ASSY

#0001 - #0643

1шт.

1-22

A2W01178

FAN & MOTOR ASSY

#0644

1шт.

1-22-1

A411350201B1

FAN ASSY

NOT SHOWN #0001 - #0643

1шт.

1-22-1

AC100180

FAN ASSY

NOT SHOWN #0644

1шт.

1-22-2

A2W00595

MOTOR ASSY

NOT SHOWN #0001 - #0643

1шт.

1-22-2

A2W01179

MOTOR ASSY

NOT SHOWN #0644

1шт.

1-22-3

A285051700A0

SHROUD

NOT SHOWN #0001 - #0643

1шт.

1-22-3

AC100189

SHROUD

NOT SHOWN #0644

1шт.

1-23

A8900105073

BOLT-W/WASHER

#0001 - #0643

4шт.

1-23

RA000004

BOLT-W/WASHER

#0644

4шт.

1-3

11N6-90060

DRIER-RECEIVER

1шт.

1-4

11N6-90120

BRACKET-R/DRIER

1шт.

1-5

11LF-90120

CONTROL ASSY

#0081

1шт.

1-5

11LF-90121

CONTROL ASSY

#0082 - #0643

1шт.

1-5

11LF-90122

CONTROL ASSY

#0644

1шт.

1-51

11LF-90220

DECAL

NOT SHOWN #0001

1шт.

1-6

11N6-90040

COMPRESSOR ASSY

#1632

1шт.

1-6

11Q6-90040

COMPRESSOR ASSY

#1633

1шт.

1-61

11LF-90230

THERMAL SW-COMP

#0001 - #1632

1шт.

1-62

A5W00153

CLUTCH

#0001 - #1632

1шт.

1-7

11N6-90110

PULLEY-IDLE

1шт.

1-71

A4760-508-00-2

BRACKET-PULLEY

1шт.

1-72

A4700-511-01-2

PULLEY-IDLE

INCL 1-73

1шт.

1-73

A8900-518-03-3

BOLT-TENSION

#0001

1шт.

1-8

11E9-3503

V-BELT

1шт.

1-9

11LF-90041

SUCTION HOSE

#0134

1шт.

1-9

11LF-90042

SUCTION HOSE

#0135 - #1632

1шт.

1-9

11LF-90043

SUCTION HOSE

#1633

1шт.

1-91

A304000601-4

CHARGE VALVE ASSY-L

1шт.

1-92

A310069299-2

O-RING

#1632

1шт.

1-93

A305000203-2

O-RING

1шт.

1-1

11LF-90052

DISCHARGE HOSE

#0134

1шт.

1-1

11LF-90053

DISCHARGE HOSE

#0135 - #1632

1шт.

1-1

11LF-90054

DISCHARGE HOSE

#1633

1шт.

1-101

A304000301-4

CHARGE VALVE ASSY

1шт.

1-102

A305000206-2

O-RING

#1632

1шт.

1-103

A305000205-2

O-RING

1шт.

1-11

11LC-90053

HOSE(A)-LIQUID

#0643

1шт.

1-11

11LG-90100

HOSE(A)-LIQUID

#0644

1шт.

1-111

A305000207-2

O-RING

2шт.

1-12

11LF-90072

LIQUID HOSE(B)

#0134

1шт.

1-12

11LF-90073

LIQUID HOSE(B)

#0135

1шт.

1-121

A305000205-2

O-RING

2шт.

2

11LB-90170

HOSE-RETURN

1шт.

3

11LC-90090

HOSE-HEATER RETURN

1шт.

4

11L7-90150

VALVE-HEATER

1шт.

5

S520-027000

CLAMP-HOSE,SCREW TYPE

4шт.

6

S543-240002

CLAMP-TUBE

3шт.

7

S681-460400

GROMMET

1шт.

8

S542-240002

CLAMP-TUBE

3шт.

9

S403-08200B

WASHER-PLAIN

#0001 - #1632

4шт.

9

S403-08200B

WASHER-PLAIN

#1633

6шт.

10

S403-062002

WASHER-PLAIN

#0001

4шт.

11

S035-081522

BOLT-W/WASHER

5шт.

12

11LD-90082

BRACKET WA

#0353

1шт.

12

11LD-90083

BRACKET WA

#0354 - #1632

1шт.

12

11LF-90320

BRACKET WA

#1633

1шт.

13

S037-102552

BOLT-W/WASHER

3шт.

14

S109-080956

BOLT-SOCKET

#1632

4шт.

14

S109-080906

BOLT-SOCKET

#1633

4шт.

15

S035-082522

BOLT-W/WASHER

4шт.

16

14L3-00741

RESILIENT

4шт.

17

S152-040122

SCREW-TAPPING

4шт.

18

S037-103052

BOLT-W/WASHER

3шт.

19

S017-100352

BOLT-HEX

1шт.

20

S015-080302

BOLT-HEX

#0020

2шт.

20

S015-080302

BOLT-HEX

#0021 - #1632

1шт.

21

S037-122052

BOLT-W/WASHER

4шт.

22

S203-061002

NUT-HEX

#0001

4шт.

23

S203-081002

NUT-HEX

#0001

2шт.

24

S035-062022

BOLT-W/WASHER

2шт.

25

14L1-01350

VALVE-HEATER

1шт.

26

11EK-92130

HOSE-DRAIN

1шт.

27

S161-050166

SCREW-CROSS R/ROUND

4шт.

28

S403-051002

WASHER-PLAIN

4шт.

29

S015-080352

BOLT-HEX

#0021 - #1632

1шт.

30

S018-100356

BOLT-HEX

#1633

1шт.

31

S441-100006

WASHER-HARDENED

#1633

1шт.

32

S403-10200B

WASHER-PLAIN

#1633

1шт.
