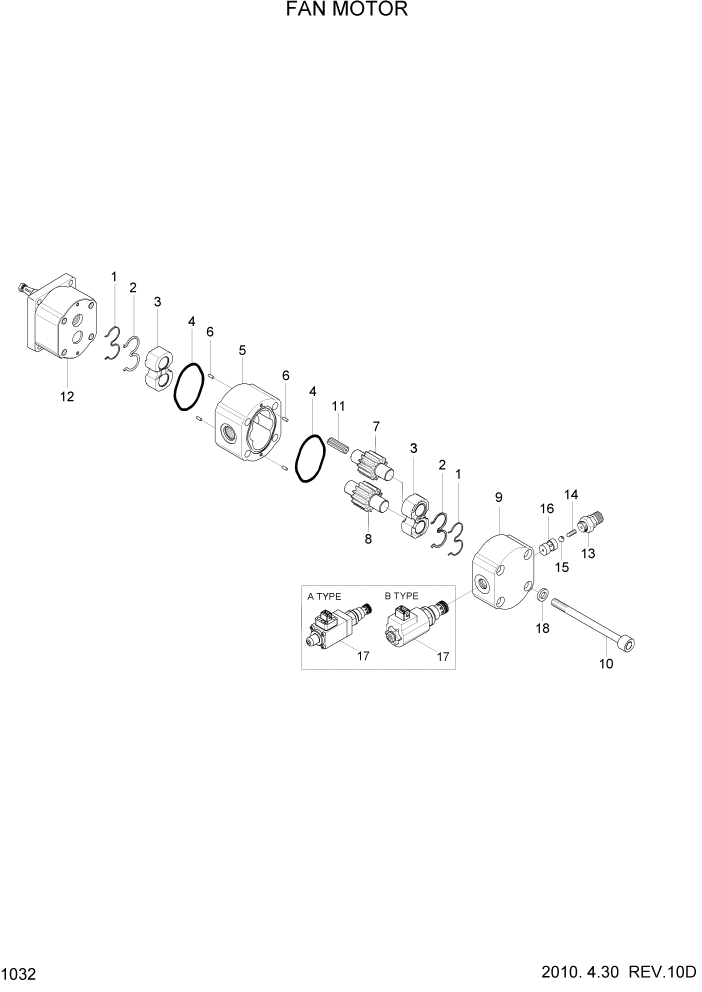

Запчасти Hyundai HL740-7 PAGE 1032 FAN MOTOR СИСТЕМА ДВИГАТЕЛЯ

*

11LF-30010

MOTOR-FAN

#0001 - #1634

1шт.

*

11LF-30011

FAN MOTOR ONE-DIRECTION

#1635

1шт.

K1

@

RING-BACK UP

NOT

2шт.

K2

@

SEAL

NOT

2шт.

3

@

BEARING BLOCK

NOT

2шт.

K4

@

O-RING

NOT

2шт.

5

@

GEAR HOUSING

NOT

1шт.

6

@

DOWEL PIN

NOT

4шт.

7

@

DRIVE GEAR

NOT

1шт.

8

@

IDLER GEAR

NOT

1шт.

9

@

COVER

NOT

1шт.

10

@

BOLT

NOT

4шт.

11

@

COUPLING

NOT

1шт.

12

@

FRONT BEARING

NOT

1шт.

K12-1

@

SHAFT SEAL I

NOT

1шт.

K12-2

@

SHAFT SEAL II

NOT

1шт.

13

@

COUPLING-MEASURING

NOT

1шт.

14

@

SPRING

NOT

1шт.

15

@

BALL

NOT

1шт.

16

@

VALVE SEAT

NOT

1шт.

17

5030338

RELIEF VALVE CARTRIDGE

#0001

1шт.

K17-1

@

SEAL KIT

NOT

1шт.

18

@

WASHER

NOT

4шт.

K

5060053

SEAL KIT

1шт.
