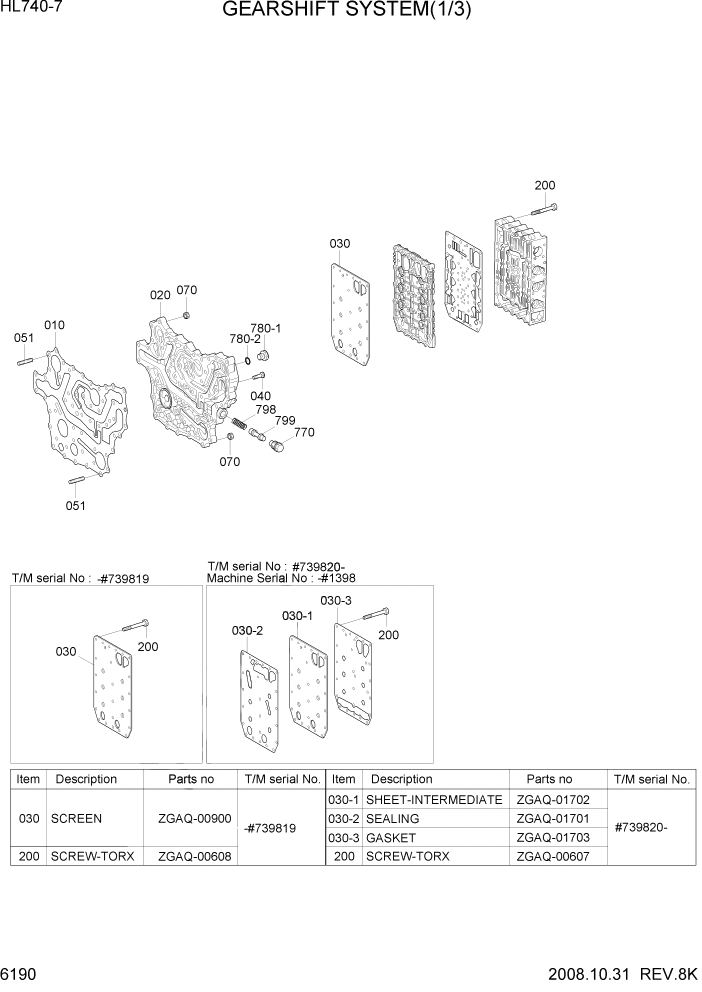

Запчасти Hyundai HL740-7 PAGE 6190 GEARSHIFT SYSTEM(1/3) СИЛОВАЯ СИСТЕМА

*

ZGAQ-01451

GEARSHIFT SYSTEM

#1398

1шт.

*

ZGAQ-03142

GEARSHIFT SYSTEM

#1399

1шт.

10

ZGAQ-01452

GASKET

1шт.

20

ZGAQ-01453

PLATE-DUCT

1шт.

30

ZGAQ-00900

SHEET

SEE ILLUST

1шт.

30

@

SHEET-INTERMITTER

NOT #1398

1шт.

30

ZGAQ-02808

PLATE-SEALING

#1399

1шт.

30-1

ZGAQ-01702

SHEET-INTERMEDIATE

SEE ILLUST #1398

1шт.

30-2

ZGAQ-01701

SEALING

SEE ILLUST #1398

1шт.

30-3

ZGAQ-01703

GASKET

SEE ILLUST #1398

1шт.

40

ZGAQ-00792

SCREW-CAP

37шт.

50

ZGAQ-01405

STUD

14шт.

70

ZGAQ-00799

NUT-HEX

14шт.

200

ZGAQ-00608

SCREW-TORX

SEE ILLUST

23шт.

200

ZGAQ-00607

SCREW-TORX

SEE ILLUST

23шт.

200

ZGAQ-00608

SCREW-TORX

#1399

23шт.

780-1

ZGAQ-00613

SCREW-PLUG

1шт.

780-2

ZGAQ-00614

O-RING

1шт.

798

ZGAQ-00903

SPRING-COMPRESSURE

1шт.

799

ZGAQ-01454

PISTON

1шт.

770

ZGAQ-00697

SWITCH

1шт.
