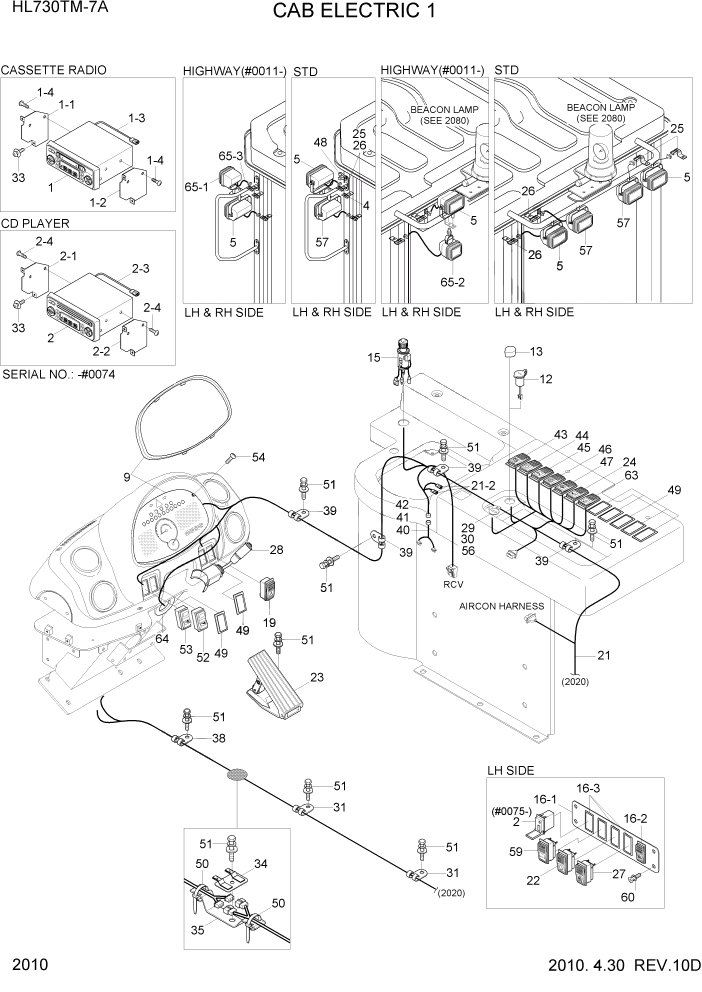

Запчасти Hyundai HL730TM7A PAGE 2010 CAB ELECTRIC 1 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

1

21N8-50020

CASSETTE RADIO ASSY

STD #0025

1шт.

1

21N8-50060

CASSETTE RADIO ASSY

STD #0026 - #0074

1шт.

1

21N8-51000

RADIO/USB PLAYER ASSY

STD #0075

1шт.

1-1

21N6-10470

BRACKET-LH

1шт.

1-2

21N6-10460

BRACKET-RH

1шт.

1-3

21N8-01600

HARNESS-EXT WIRE

1шт.

1-4

S141-050106

SCREW-FLAT HD

4шт.

2

21N8-40600

CD PLAYER ASSY

OPT #0074

1шт.

2

21LM-31200

USB & SOCKET ASSY

#0075

1шт.

2-1

21N6-10470

BRACKET-LH

#0074

1шт.

2-2

21N6-10460

BRACKET-RH

#0074

1шт.

2-3

21N8-01600

HARNESS-EXT WIRE

#0074

1шт.

2-4

S141-050106

SCREW-FLAT HD

#0074

4шт.

4

21N4-01130

PLATE-CLIP

MIRROR DEFROST

2шт.

5

21N6-20211

WORK LAMP ASSY

4шт.

5-1

S866-240650

BULB

NOT SHOWN

1шт.

9

21LB-50501

CLUSTER ASSY

1шт.

12

21N8-20010

SOCKET-12V

OPT

1шт.

13

S661-260300

CAP-RUBBER

STD

1шт.

15

21E4-0008

LIGHTER-CIGAR

1шт.

16

21LF-34020

SWITCH ASSY

1шт.

16-1

21LB-40090

COVER-PLATE

1шт.

16-2

21LB-40280

SW-RR WIPER/WASHER

1шт.

16-3

21E6-10460

COVER

3шт.

19

21LB-40140

SWITCH-HAZARD

1шт.

21

21LG-30012

HARNESS-MAIN

#0023

1шт.

21

21LG-30013

HARNESS-MAIN

#0024

1шт.

21-2

21EA-50550

DIODE

NOT SHOWN #0001

4шт.

22

21LB-40300

SWITCH-BEACON

OPT

1шт.

23

21L6-03600

PEDAL-ELECTRONIC

#0074

1шт.

23

21FT-15190

ACCELERATOR PEDAL

#0075

1шт.

R24

21LB-40210

SWITCH-RIDE CONTROL

SEE 3140

1шт.

25

25D1-10650

CLIP ASSY

4шт.

26

25D1-10640

CLIP ASSY

4шт.

27

21LB-34060

SWITCH-MIRROR DEFROST

MIRROR DEFROST

1шт.

28

24L3-00340

SWITCH-MULTIFUNCTION

1шт.

29

21N4-10430

SWITCH ASSY-INCL KEY

KOREA, CHINA #0034

1шт.

29

21N3-00020

SWITCH ASSY-INCL KEY

KOREA, CHINA #0035

1шт.

29-1

21N4-10430K100

KEY-START

NOT SHOWN

1шт.

30

21LB-40151

DECAL-START KEY

1шт.

31

S593-000902

CLIP-HARNESS

6шт.

33

S131-051546

SCREW-W/WASHER

6шт.

34

21LB-10110

PLATE-CONNECTOR

1шт.

35

21L7-20350

PLATE

1шт.

38

S593-000652

CLIP-HARNESS

3шт.

39

21E9-00170

CLIP-HARNESS

5шт.

40

21LH-30140

HARNESS-EXT

FNR RCV

1шт.

41

21LH-30111

HARNESS-EXT

MONO, 2-LEVER

1шт.

42

21LH-30121

HARNESS-EXT

2,3-LEVER

1шт.

43

21LB-40230

SWITCH-PARKING

1шт.

44

21LB-40240

SWITCH-MAIN LIGHT

1шт.

45

21LB-40250

SWITCH-WORK LAMP

1шт.

46

21LB-40260

SWITCH-AUTO SELECT

1шт.

47

21LB-40270

SWITCH-CLUTCH CUT-OFF

STD

1шт.

47

21E6-10460

COVER

OPT, DUAL PEDAL #0034

1шт.

48

S593-001302

CLIP-HARNESS

2шт.

49

21E6-10460

COVER

STD

10шт.

50

S552-050203

CLAMP-BAND

8шт.

51

S035-081526

BOLT-W/WASHER

12шт.

52

21L7-03160

SWITCH-ATTACH LOCK

QUICK COUPLER

1шт.

53

21L7-03170

SWITCH-ATTACH UNLOCK

QUICK COUPLER

1шт.

54

S151-050206

SCREW-TAPPING

4шт.

56

21N4-10400

SWITCH ASSY-INCL KEY

EXPORT

1шт.

56-1

21N4-10400K

KEY-START

NOT SHOWN

1шт.

57

21N6-20211

WORK LAMP ASSY

OPT

4шт.

57-1

S866-240650

BULB

NOT SHOWN

1шт.

59

21LD-34210

SWITCH-ECONO

1шт.

60

S151-060256

SCREW-TAPPING

4шт.

63

21LF-34040

SWITCH-HEATED SEAT

HEATED SEAT

1шт.

64

S681-290400

GROMMET

1шт.

65

20LF-30801

HIGHWAY WORK LAMP

HIGHWAY LAMP #0011

1шт.

65-1

21LM-01110

WORK LIGHT

HIGHWAY LAMP #0011

2шт.

65-2

21N6-20211

WORK LAMP ASSY

HIGHWAY LAMP #0011

2шт.

65-2-1

S866-240650

BULB

NOT SHOWN #0011

1шт.

65-3

21LF-20250

HARNESS-LAMP,EXT

HIGHWAY LAMP #0011

2шт.
