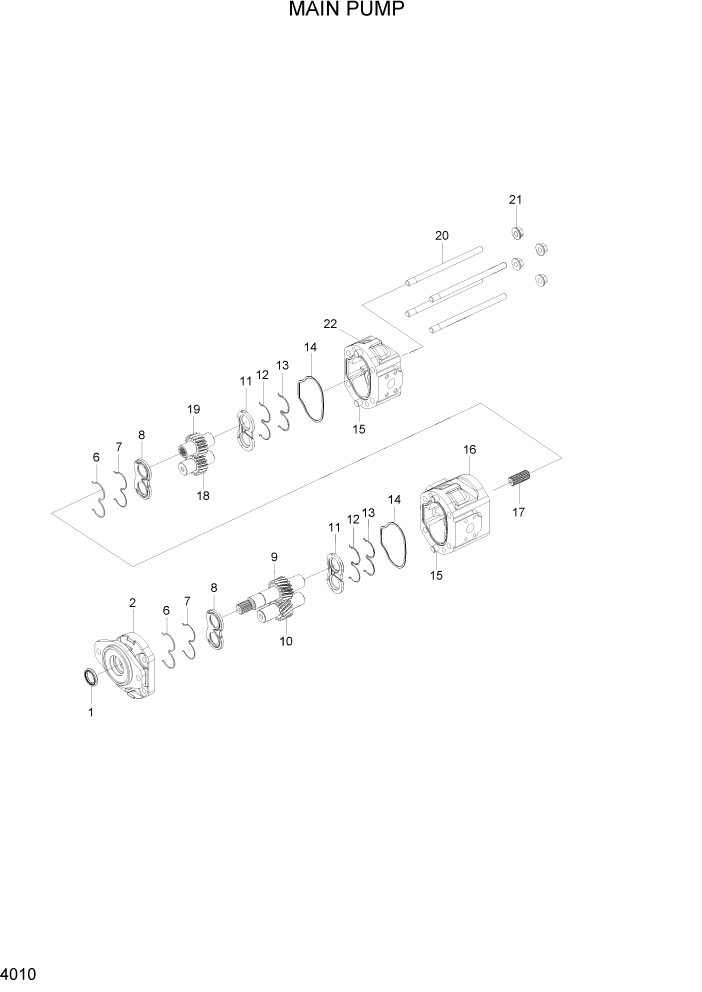

Запчасти Hyundai HL730TM7 PAGE 4010 MAIN PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LG-00010

MAIN PUMP

1шт.

NK1

@

SHAFT SEAL-VITON

NOT

1шт.

N2

@

ADAPTOR

NOT

1шт.

NK6

@

SEAL-BACK UP

NOT

2шт.

NK7

@

SEAL/O-RING

NOT

2шт.

NK8

@

WEARPLATE

NOT

2шт.

N9

@

DRIVE GEAR-FRONT

NOT

1шт.

K10

@

DRIVEN GEAR-FRONT

NOT

1шт.

NK11

@

WEARPLATE

NOT

2шт.

NK12

@

SEAL/O-RING

NOT

2шт.

NK13

@

SEAL-BACK UP

NOT

2шт.

NK14

@

SEAL-INTER FACE

NOT

2шт.

N15

@

DOWEL

NOT

4шт.

N16

@

BODY-FRONT

NOT

1шт.

N17

@

COUPLING-SPLINE

NOT

1шт.

N18

@

DRIVEN GEAR-REAR

NOT

1шт.

N19

@

DRIVE GEAR-REAR

NOT

1шт.

N20

@

STUD

NOT

4шт.

N21

@

NUT-FLANGED

NOT

4шт.

N22

@

BODY-REAR

NOT

1шт.

K

ZUAH-00060

SEAL KIT(1,6-8,11-14)

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
