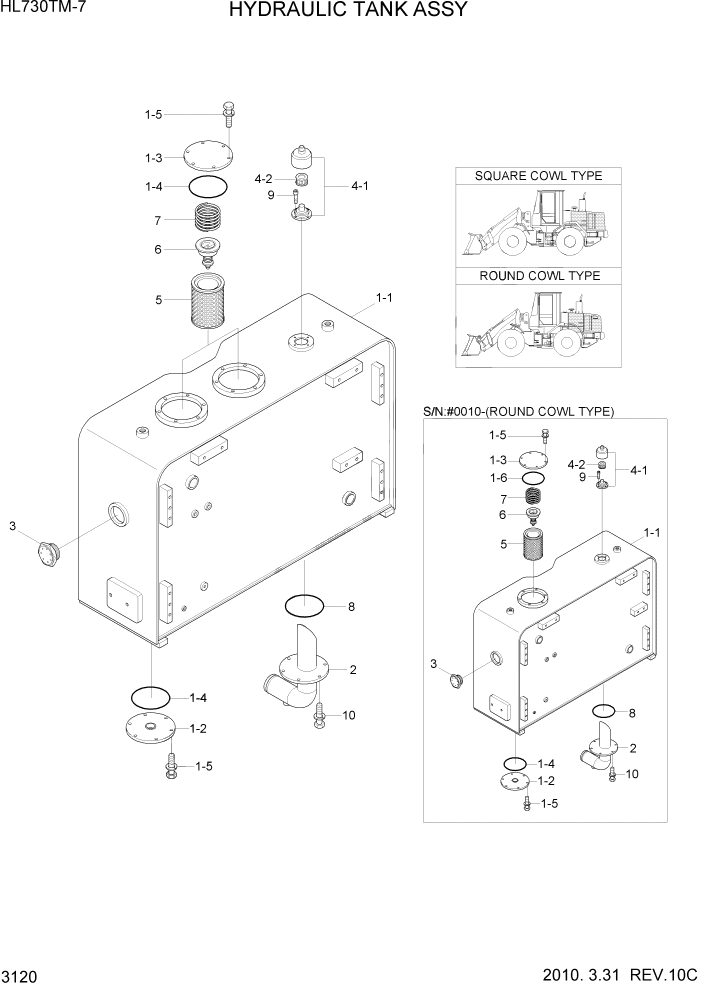

Запчасти Hyundai HL730TM7 PAGE 3120 HYDRAULIC TANK ASSY ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

HYD TANK ASSY

NOT

1шт.

1

31LG-60022

HYD TANK SUB ASSY

SQUARE COWL #0001

1шт.

1

31LG-60190

HYD TANK SUB ASSY

ROUND COWL #0010 - #0017

1шт.

1

31LG-60191

HYD TANK SUB ASSY

ROUND COWL #0018 - #0133

1шт.

1

31LG-60310

HYD TANK SUB ASSY

ROUND COWL #0134 - #0134

1шт.

1

31LG-60311

HYD TANK SUB ASSY

ROUND COWL #0135

1шт.

1-1

31LG-60032

HYD TANK WA

SQUARE COWL #0001

1шт.

1-1

31LG-60200

HYD TANK WA

ROUND COWL #0010 - #0017

1шт.

1-1

31LG-60201

HYD TANK WA

ROUND COWL #0018 - #0133

1шт.

1-1

31LG-60320

HYD TANK WA

ROUND COWL #0134 - #0134

1шт.

1-1

31LG-60321

HYD TANK WA

ROUND COWL #0135

1шт.

1-2

31LD-60050

COVER WA

1шт.

1-3

31L9-60151

COVER

SQUARE COWL

2шт.

1-3

31E3-4526

COVER

ROUND COWL #0010

1шт.

1-4

S632-140001

O-RING

SQUARE COWL

3шт.

1-4

S632-140001

O-RING

ROUND COWL #0010

1шт.

1-5

S037-102556

BOLT-W/WASHER

SQUARE COWL

18шт.

1-5

S037-102556

BOLT-W/WASHER

ROUND COWL #0010

12шт.

1-6

S632-165001

O-RING

ROUND COWL #0010

1шт.

2

31LG-60050

PIPE ASSY

#0136

1шт.

2

31LG-60500

PIPE ASSY

#0137

1шт.

3

31L1-4047

GAUGE-SIGHT

1шт.

4

31EE-02100

AIR BREATHER

1шт.

4-1

PM102-0001R

BODY

1шт.

4-2

31EE-02110

ELEMENT

1шт.

5

31L9-60161

ELEMENT-HYD

SQUARE COWL

2шт.

5

31L1-4041

ELEMENT ASSY

ROUND COWL #0010

1шт.

6

31M5-00240

VALVE-BYPASS

SQUARE COWL

2шт.

6

E131-0256

VALVE-BYPASS

ROUND COWL #0010

1шт.

7

E131-0220

SPRING

2шт.

8

S632-140001

O-RING

1шт.

9

S109-060156

BOLT-SOCKET

4шт.

10

S037-102556

BOLT-W/WASHER

6шт.
