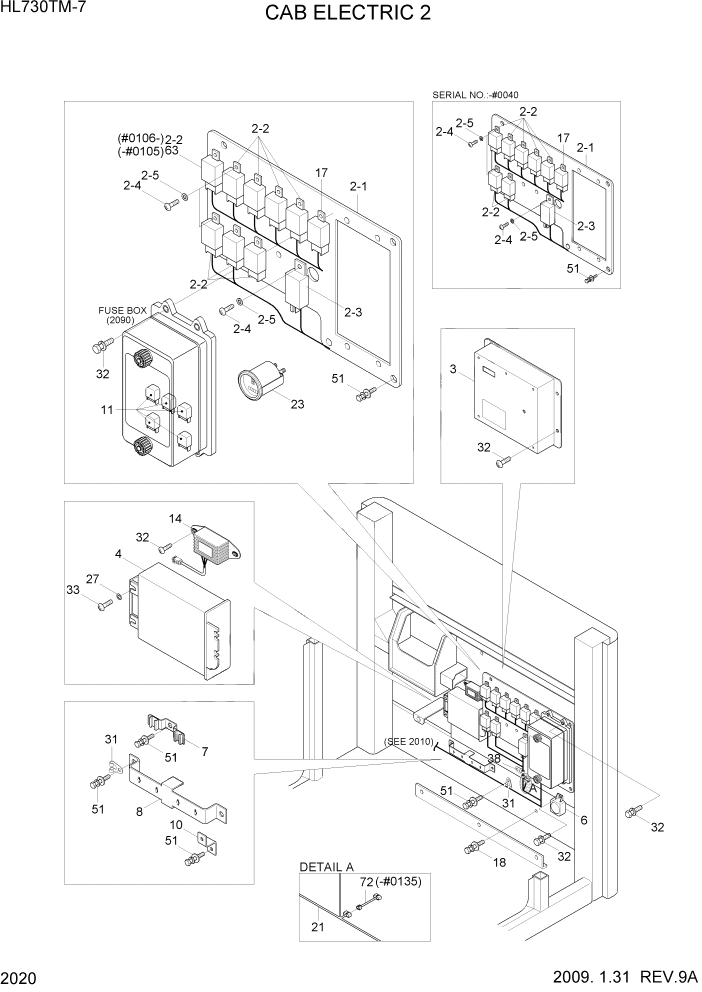

Запчасти Hyundai HL730TM7 PAGE 2020 CAB ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21LF-20161

RELAY BOARD ASSY

#0040

1шт.

2

21LF-20162

RELAY BOARD ASSY

#0041 - #0105

1шт.

2

21LF-20163

RELAY BOARD ASSY

#0106 - #0134

1шт.

2

21LF-20164

RELAY BOARD ASSY

#0135

1шт.

2-1

21LF-20150

PLATE WA

#0040

1шт.

2-1

21LF-20151

PLATE-RELAY BOARD

#0041 - #0105

1шт.

2-1

21LF-20152

PLATE-RELAY BOARD

#0106

1шт.

2-2

21E4-0011

RELAY-4P

#0105

7шт.

2-2

21E4-0011

RELAY-4P

#0106

8шт.

2-3

21ER-60700

FLASHER UNIT ASSY

#0029

1шт.

2-3

21ER-60702

FLASHER UNIT ASSY

#0030 - #0134

1шт.

2-3

21ER-60703

FLASHER UNIT

#0135

1шт.

2-4

S161-050102

SCREW-CROSS R/ROUND

#0105

8шт.

2-4

S161-050102

SCREW-CROSS R/ROUND

#0106

9шт.

2-5

S411-050002

WASHER-SPRING

#0105

8шт.

2-5

S411-050002

WASHER-SPRING

#0106

9шт.

3

21LB-40101

MCU

STD #0096

1шт.

3

21LB-40102

MCU

STD #0097

1шт.

4

21L8-50051

CONTROL UNIT(EST-37A)

TRANSMISSION

1шт.

6

21E4-2025

BUZZER-WARNING

1шт.

7

21N4-01130

PLATE-CLIP

1шт.

8

21LB-40070

PLATE

1шт.

10

21E7-0612

PLATE-CONNECTOR

1шт.

11

24L1-05100

RELAY

5шт.

14

21N8-20201

DC-DC CONVERTER ASSY

OPT

1шт.

R17

21E4-0011

RELAY-4P

RIDE CONTROL

1шт.

18

S037-102022

BOLT-W/WASHER

1шт.

21

@

HARNESS-MAIN

NOT

1шт.

21-1

21LG-10150

HARNESS-PLUG

STD #0132

1шт.

23

21N4-11070

HOUR METER ASSY

1шт.

27

S401-052006

WASHER-PLAIN

4шт.

31

S593-000902

CLIP-HARNESS

2шт.

32

S131-061546

SCREW-W/WASHER

11шт.

33

S131-051546

SCREW-W/WASHER

4шт.

38

S593-000652

CLIP-HARNESS

2шт.

51

S035-081522

BOLT-W/WASHER

11шт.

63

21E4-0011

RELAY-4P

FUEL WARMER #0041 - #0105

1шт.

68

21LB-40200

MCU

COLD START KIT #0106

1шт.

69

E125-2545

RELAY-5P

COLD START KIT #0106

1шт.

71

21LG-10160

HARNESS-PLUG

DUAL PEDAL #0132 - #0135

1шт.
