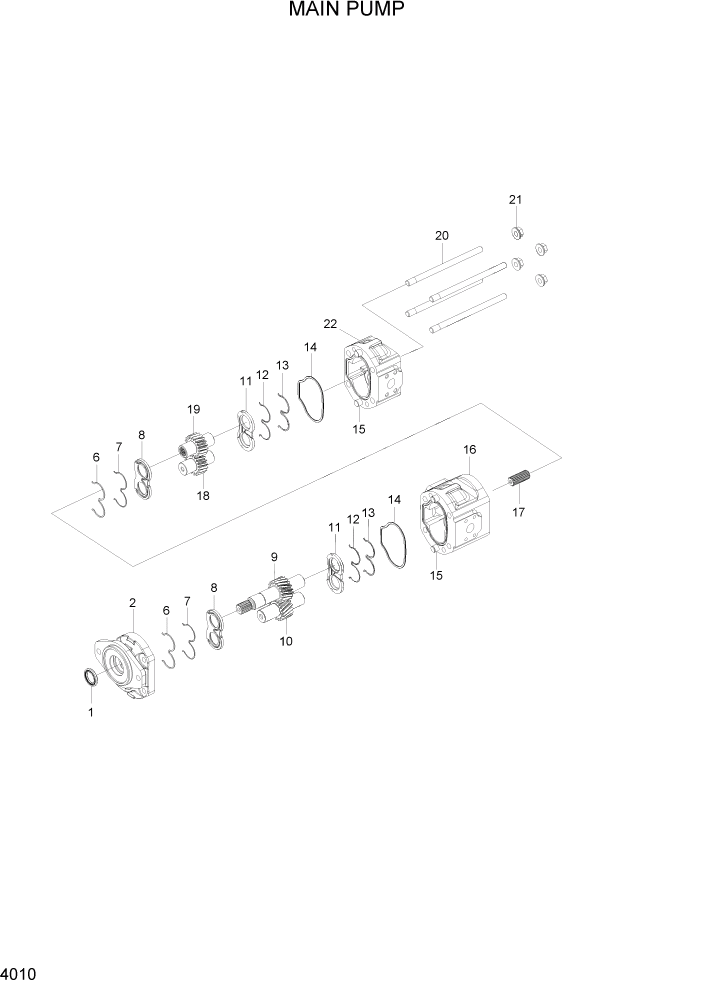

Запчасти Hyundai HL730-7A PAGE 4010 MAIN PUMP ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31LG-00070

MAIN PUMP

1шт.

K1

@

SHAFT SEAL-VITON

NOT

1шт.

N2

@

ADAPTOR

NOT

1шт.

K6

@

SEAL-BACK UP

NOT

2шт.

K7

@

SEAL/O-RING

NOT

2шт.

K8

@

WEARPLATE

NOT

2шт.

N9

@

DRIVE GEAR-FRONT

NOT

1шт.

N10

@

DRIVEN GEAR-FRONT

NOT

1шт.

K11

@

WEARPLATE

NOT

2шт.

K12

@

SEAL/O-RING

NOT

2шт.

K13

@

SEAL-BACK UP

NOT

2шт.

K14

@

SEAL-INTER FACE

NOT

2шт.

N15

@

DOWEL

NOT

4шт.

N16

@

BODY-FRONT

NOT

1шт.

N17

@

COUPLING-SPLINE

NOT

1шт.

N18

@

DRIVEN GEAR-REAR

NOT

1шт.

N19

@

DRIVE GEAR-REAR

NOT

1шт.

N20

@

STUD

NOT

4шт.

N21

@

NUT-FLANGED

NOT

4шт.

N22

@

BODY-REAR

NOT

1шт.

K

ZUAH-00060

SEAL KIT(1,6-8,11-14)

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
