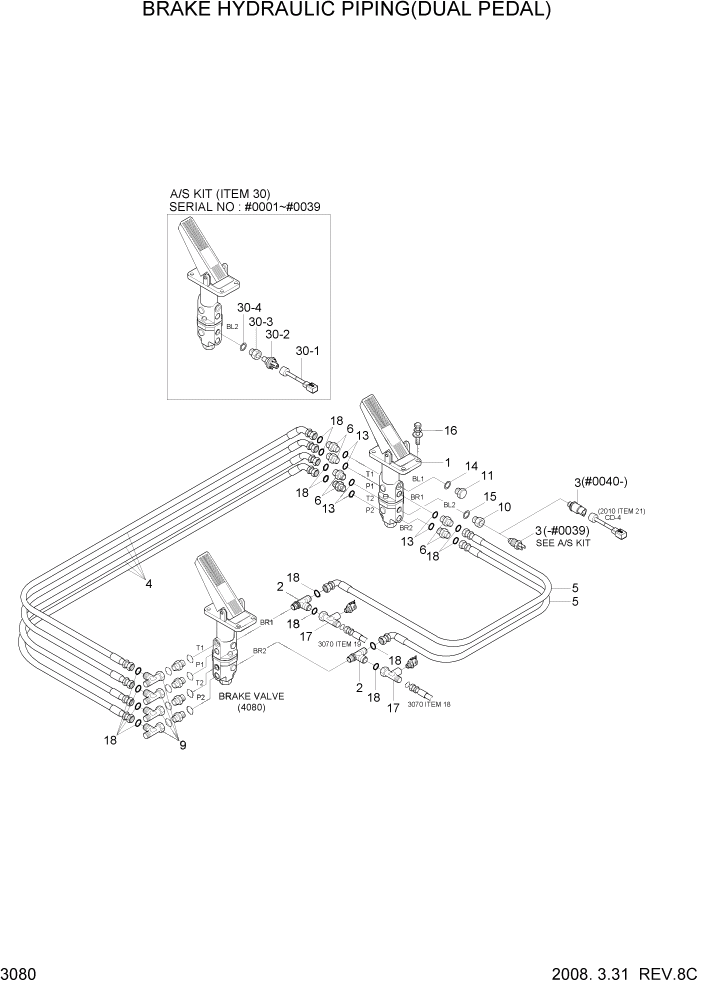

Запчасти Hyundai HL730-7A PAGE 3080 BRAKE HYDRAULIC PIPING(DUAL PEDAL) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

90LG-97000

DUAL BRAKE PEDAL KIT

#0001

1шт.

1

31LG-40300

BRAKE VALVE-DUAL(RH)

1шт.

2

31LF-40310

TEE-SHUTTLE

2шт.

N3

@

SWITCH-PRESSURE

NOT #0039

1шт.

3

31Q4-40560

PRESSURE SWITCH

SERVICE BRAKE #0040

1шт.

4

P920-063014

HOSE ASSY-ORFS 0X45

4шт.

5

P930-063013

HOSE ASSY-ORFS 0X90

2шт.

6

X500-110002

CONNECTOR-ORFS

6шт.

9

X840-525252

TEE-R/TYPE,SWIVEL,ORFS

4шт.

10

31LG-40050

ADAPTER

1шт.

11

P220-110102

PLUG

1шт.

12

S631-011004

O-RING

1шт.

13

S631-014004

O-RING

6шт.

14

P391-040000

WASHER-COPPER

1шт.

15

P392-120000

WASHER-COPPER

1шт.

16

S035-082552

BOLT-W/WASHER

2шт.

17

31N6-66090

TEE-TEST

2шт.

18

S621-012001

O-RING(SEAL LOCK TYPE)

12шт.

20

@

MAT-FLOOR

NOT #0001

1шт.

21

@

COVER

NOT #0001

1шт.

22

@

HARNESS-PLUG

NOT #0001

1шт.

30

21LB-51700

KIT-STOP LAMP PRESSURE

FOR A/S #0001 - #0039

1шт.

30-1

21LB-51600

EXT-HARNESS

1шт.

30-2

81FH-47120

PRESSURE SWITCH ASS'Y

1шт.

30-3

31LG-40071

ADAPTER

1шт.

30-4

P392-120000

WASHER-COPPER

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
