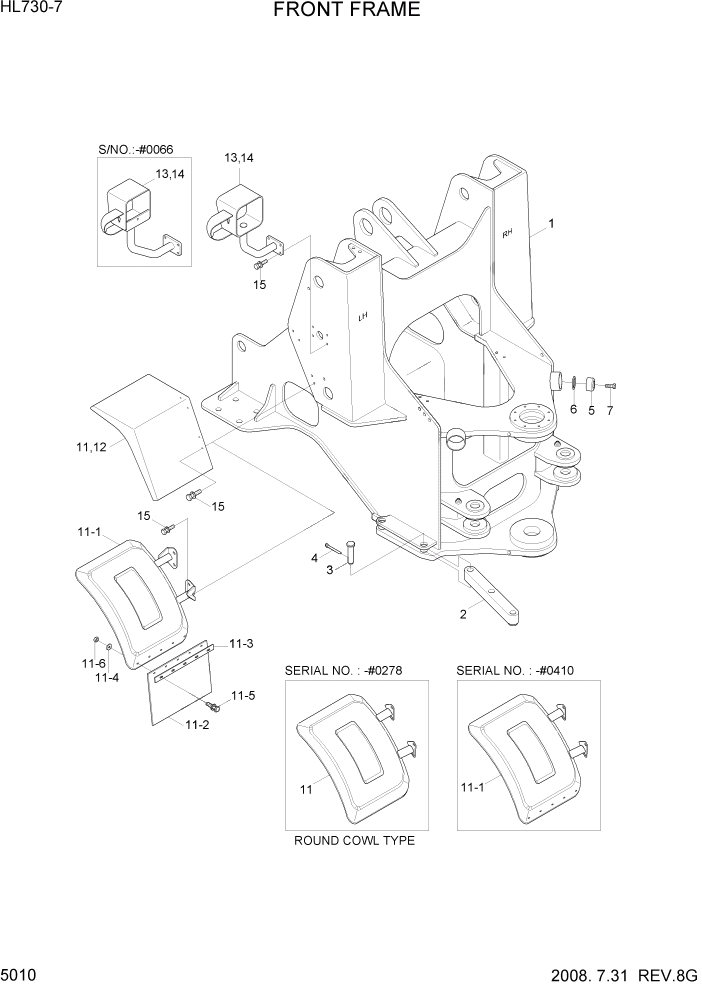

Запчасти Hyundai HL730-7 PAGE 5010 FRONT FRAME СТРУКТУРА

1

41LG-00011

FRONT FRAME WA

SQUARE COWL #0074

1шт.

1

41LG-00012

FRONT FRAME WA

SQUARE COWL #0075

1шт.

1

43LG-00010

FRONT FRAME WA

ROUND COWL TYPE #0057 - #0074

1шт.

1

43LG-00011

FRONT FRAME WA

ROUND COWL TYPE #0075

1шт.

2

41LG-09010

BAR

1шт.

3

51L7-00430

PIN-CLEVIS

2шт.

4

41L1-1074

PIN

2шт.

5

44L3-00541

STOPPER

2шт.

6

44L3-00550

SHIM

2шт.

7

S017-120452

BOLT-HEX

2шт.

11

71LF-72010

FENDER WA-FRONT

ROUND COWL TYPE #0057 - #0278

2шт.

11

71LD-72050

FENDER ASSY-LH

ROUND COWL TYPE #0279 - #0410

1шт.

11

71LD-72051

FENDER ASSY-LH

ROUND COWL TYPE #0411

1шт.

11

71LD-72060

FENDER ASSY-RH

ROUND COWL TYPE #0279 - #0410

1шт.

11

71LD-72061

FENDER ASSY-RH

ROUND COWL TYPE #0411

1шт.

11-1

71LD-72070

FENDER WA-LH

ROUND COWL TYPE #0279 - #0410

1шт.

11-1

71LD-72071

FENDER WA-LH

ROUND COWL TYPE #0411

1шт.

11-1

71LD-72080

FENDER WA-RH

ROUND COWL TYPE #0279 - #0410

1шт.

11-1

71LD-72081

FENDER WA-RH

ROUND COWL TYPE #0411

1шт.

11-2

71LD-72090

RUBBER-FENDER

ROUND COWL TYPE #0279

1шт.

11-3

71LD-72100

PLATE

ROUND COWL TYPE #0279

1шт.

11-4

71LB-72130

WASHER-WIDE

ROUND COWL TYPE #0279

5шт.

11-5

S037-122556

BOLT-W/WASHER

ROUND COWL TYPE #0279

5шт.

11-6

S205-121006

NUT-HEX

ROUND COWL TYPE #0279

5шт.

11

71LG-70010

FENDER WA-LH,FR

SQUARE COWL

1шт.

12

71LG-70020

FENDER WA-RH,FR

SQUARE COWL

1шт.

12

71LG-70020

FENDER WA-RH,FR

SQUARE COWL

1шт.

13

71LF-70092

LAMP BOX WA-LH

#0066

1шт.

13

71LF-72031

LAMP BOX WA-LH

#0067

1шт.

14

71LF-70102

LAMP BOX WA-RH

#0066

1шт.

14

71LF-72041

LAMP BOX WA-RH

#0067

1шт.

15

S037-122552

BOLT-W/WASHER

16шт.
