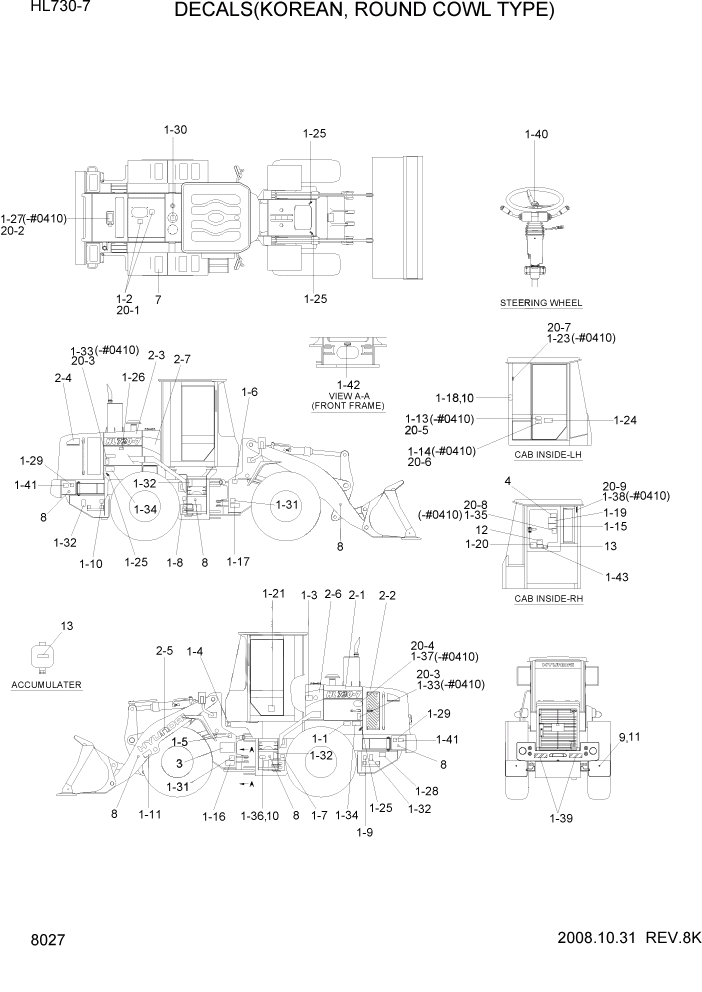

Запчасти Hyundai HL730-7 PAGE 8027 DECALS(KOREAN, ROUND COWL TYPE) ДРУГИЕ ЧАСТИ

1

91LF-06102

DECAL KIT(A)

#0149

1шт.

1

91LF-06103

DECAL KIT(A)

#0150 - #0195

1шт.

1

91LF-06104

DECAL KIT(A)

#0196 - #0214

1шт.

1

91LF-06105

DECAL KIT(A)

#0215 - #0410

1шт.

1

91LF-06106

DECAL KIT(A)

#0411

1шт.

1-1

91LB-01110

DECAL-START MOTOR

1шт.

1-2

91N6-01111

TURBO COVER

#0410

2шт.

1-3

91LB-06130

DECAL-HYD OIL LEVEL

1шт.

R1-4

91LB-06140

SHUT OFF VALVE

RIDE CONTROL

1шт.

1-5

91LB-07150

GREASE(A)

1шт.

1-6

91LB-07160

GREASE(B)

1шт.

1-7

91LB-06170

GREASE(C)

1шт.

1-8

91LB-06180

GREASE(D)

1шт.

1-9

91LB-01190

DECAL-DRAIN/REMOTE

1шт.

1-1

91LB-01200

DRAIN/REMOTE

1шт.

1-11

91LB-01210

DECAL-BUCKET STOPPER

2шт.

1-13

91LB-01230

DECAL-MAX H/REACH

#0410

1шт.

1-14

91LB-01240

DECAL-ROLL OVER

#0410

1шт.

1-15

91LB-06250

DECAL-ROPS CABIN

1шт.

1-16

91LB-01260

DECAL-STEER WARN/LH

1шт.

1-17

91LB-01270

DECAL-STEER WARN/RH

1шт.

1-18

91LB-01280

ROPS PLATE

1шт.

1-19

91LB-06290

DECAL-REFER MANUAL

1шт.

1-2

91LF-02300

DECAL-C/IDEOGRAM

1-LEVER RCV

1шт.

1-2

91LF-02310

DECAL-C/IDEOGRAM

2-LEVER RCV

1шт.

1-21

91LF-01320

DECAL-AIRCON FILTER

1шт.

1-23

91LB-01340

DECAL-HAMMER

#0410

1шт.

1-24

91E1-18080

DECAL-PUBLIC PERMIT

1шт.

1-25

94L3-00420

SLINGING IDEOGRAM

4шт.

1-26

91N6-01102

AIR CLEANER FILTER

1шт.

1-27

91N6-01121

DECAL-RADIATOR CAP

#0410

1шт.

1-28

91N8-01130

DECAL-FUELING

1шт.

1-29

91N6-02120

DECAL-BATT ACCIDENT

2шт.

1-3

91N6-03111

HYD OIL LUBR

1шт.

1-31

91N6-03130

DECAL-H/PRESSURE HOSE

2шт.

1-32

91N6-03140

FALLING

4шт.

1-33

91N6-07112

STAY FIX

#0410

2шт.

1-34

91N6-07121

SHEARING

2шт.

1-35

91N6-07261

ALTERNATE EXIT

#0410

1шт.

1-36

91E1-14110

NAME PLATE

1шт.

1-37

91E1-27110

LOW EMISSION ENG

#0410

1шт.

1-38

91N6-07290

DECAL-FIRE

#0410

1шт.

1-39

91LB-01400

DECAL-K/CLEAR/REFLECT

2шт.

1-4

2D2001160

HANDLE

#0149

1шт.

1-4

91LB-08110

DECAL-STEERING WHEEL

#0150

1шт.

1-41

91LB-06350

DECAL-MCU CONNECT

#0196

2шт.

1-42

91LH-01210

DECAL-GREASE CENTER

#0215

1шт.

1-43

91N8-07390

DECAL-TURBOCHARGER

#0215

1шт.

2

91LG-11400

DECAL KIT(B)

HL730-7 #0337

1шт.

2

91LG-11410

DECAL KIT(B)

HL730-7 #0338

1шт.

2-1

91LG-15111

MODEL NAME-LH/FR

#0337

1шт.

2-1

91LG-15210

MODEL NAME-LH/FR

#0338

1шт.

2-2

91LF-15121

MODEL NAME-LH/RR

#0337

1шт.

2-2

92LF-15170

MODEL NAME-LH/RR

#0338

1шт.

2-3

91LG-15131

MODEL NAME-RH/FR

#0337

1шт.

2-3

91LG-15310

MODEL NAME-RH/FR

#0338

1шт.

2-4

91LF-15141

MODEL NAME-RH/RR

#0337

1шт.

2-4

92LF-15180

MODEL NAME-RH/RR

#0338

1шт.

2-5

91N6-21070

DECAL-TRADE MARK

#0324

2шт.

2-5

91N6-23100

DECAL-TRADE MARK

#0325

2шт.

2-6

92LG-15190

M/NAME-LH/HYD TANK

#0338

1шт.

2-7

92LG-15200

M/NAME-RH/HYD TANK

#0338

1шт.

2

91LG-11500

DECAL KIT(B)

HL730XTD-7 #0337

1шт.

2

91LG-11510

DECAL KIT(B)

HL730XTD-7 #0338

1шт.

2-1

91LG-15150

MODEL NAME-LH/FR

#0337

1шт.

2-1

91LG-15220

MODEL NAME-LH/FR

#0338

1шт.

2-2

91LF-15121

MODEL NAME-LH/RR

#0337

1шт.

2-2

92LF-15170

MODEL NAME-LH/RR

#0338

1шт.

2-3

91LG-15160

MODEL NAME-RH/FR

#0337

1шт.

2-3

91LG-15320

MODEL NAME-RH/FR

#0338

1шт.

2-4

91LF-15141

MODEL NAME-RH/RR

#0337

1шт.

2-4

92LF-15180

MODEL NAME-RH/RR

#0338

1шт.

2-5

91N6-21070

DECAL-TRADE MARK

#0324

2шт.

2-5

91N6-23100

DECAL-TRADE MARK

#0325

2шт.

2-6

92LG-15190

M/NAME-LH/HYD TANK

#0338

1шт.

2-7

92LG-15200

M/NAME-RH/HYD TANK

#0338

1шт.

3

91LG-16130

SERVICE INSTRUCTION

#0058

1шт.

3

91LG-16131

SERVICE INSTRUCTION

#0059 - #0410

1шт.

3

91LG-16132

SERVICE INSTRUCTION

#0411

1шт.

4

91LG-16140

SPEC SHEET

1шт.

6

91E1-26300

STEP TREAD

A/S ITEM

2шт.

7

91E1-26300

STEP TREAD

FULL MUD GUARD #0372

2шт.

8

21EK-10150

REFLECTOR-SIDE

4шт.

9

51EK-52990

REFLECTOR-REAR

2шт.

10

E171-1246

RIVET

8шт.

11

S401-052002

WASHER-PLAIN

2шт.

12

91LG-16160

EMISSION CERTIFICATION

#0001

1шт.

13

91LG-12350

ETHER OPERATING

#0324

1шт.

14

91N6-03200

DECAL-ACCUMULATER

#0348

4шт.

R14

91N6-03200

DECAL-ACCUMULATER

RIDE CONTROL #0348

8шт.

15

91LG-17010

DECAL-NOISE LEVEL

#0348

1шт.

20

92LB-00080

DECAL KIT-A/S

#0001

1шт.

20-1

91N6-01111

TURBO COVER

2шт.

20-2

91N6-01121

DECAL-RADIATOR CAP

1шт.

20-3

91N6-07112

STAY FIX

2шт.

20-4

91E1-27110

LOW EMISSION ENG

1шт.

20-5

91LB-01230

DECAL-MAX H/REACH

1шт.

20-6

91LB-01240

DECAL-ROLL OVER

1шт.

20-7

91LB-01340

DECAL-HAMMER

1шт.

20-8

91N6-07261

ALTERNATE EXIT

1шт.

20-9

91N6-07290

DECAL-FIRE

1шт.
