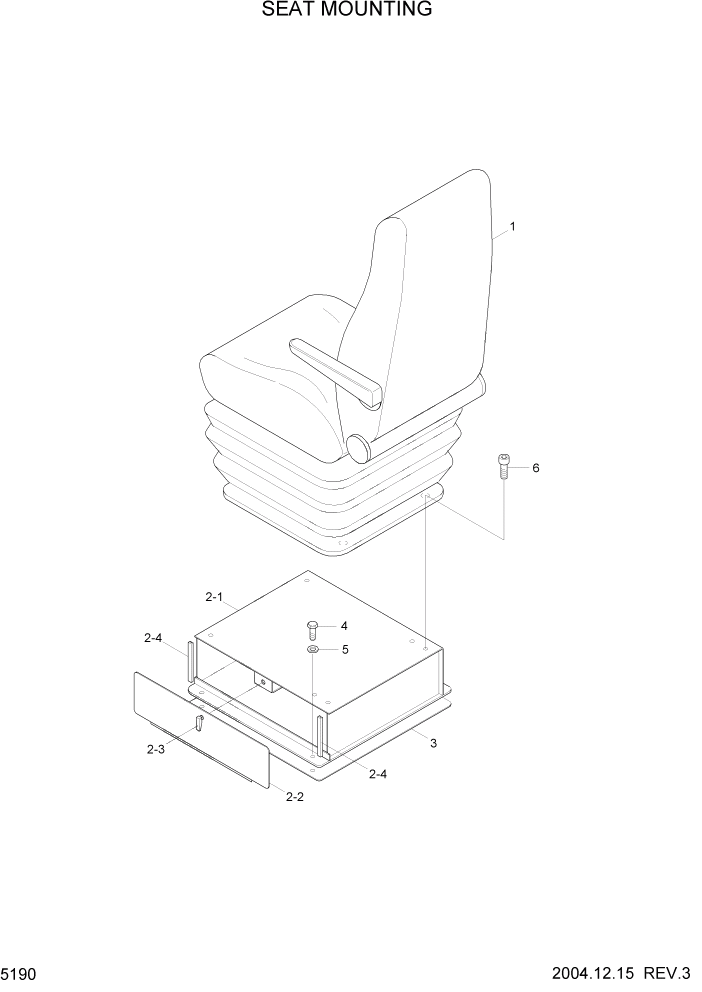

Запчасти Hyundai HL7803A PAGE 5190 SEAT MOUNTING СТРУКТУРА

1

71L1-16550

SEAT ASSY-2",STATIC

STD,SEE 5200

1шт.

1

74L4-00010

SEAT ASSY-2",VINYL

OPT

1шт.

1

71LB-32020

SEAT ASSY-3",MECHENICAL

SEE 5201/02,OPT #0093

1шт.

1

74L1-10140

SEAT ASSY-2",AIR RIDE

SEE 5203,OPT #0093

1шт.

1

71LB-32040

SEAT ASSY-3",AIR RIDE

OPT #0093

1шт.

2

71L6-10422

SEAT BASE ASSY

1шт.

2-1

71L6-10442

SEAT BASE WA

1шт.

2-2

71L6-10450

DOOR WA

1шт.

2-3

71EM-20150

LATCH ASSY

1шт.

2-4

S791-030105

GROMMET-PLATE

2шт.

3

71L6-10430

PAD-RUBBER

1шт.

4

S017-100206

BOLT-HEX

4шт.

5

S411-100006

WASHER-SPRING

4шт.

6

S105-080156

BOLT-SOCKET

4шт.
