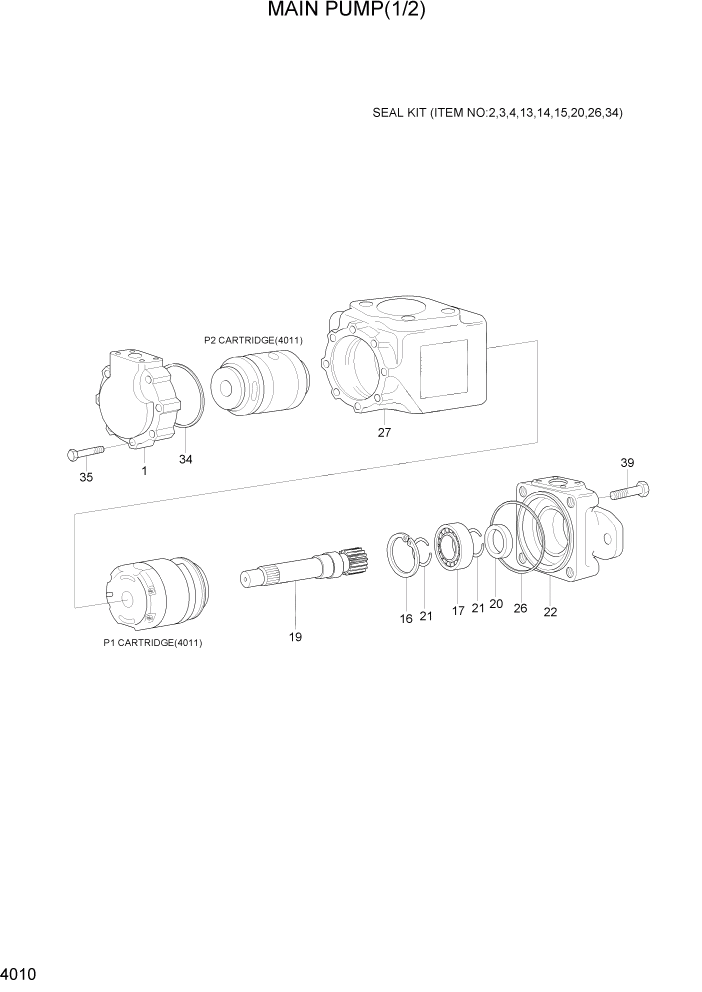

Запчасти Hyundai HL7803A PAGE 4010 MAIN PUMP(1/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31L6-03270

MAIN PUMP

SEE 4011

1шт.

1

XJDF-00002

CAP-END

1шт.

S16

@

RING-SNAP,INTERNAL

NOT

1шт.

S17

@

BEARING-BALL

NOT

1шт.

S19

@

SHAFT-SPLINED

NOT

1шт.

K20

@

SEAL-SHAFT

NOT

1шт.

S21

@

RING-SNAP,EXTERNAL

NOT

1шт.

22

XJDF-00038

CAP-MOUNTING

1шт.

K26

@

SEAL-SECTION

NOT

1шт.

27

XJDF-00017

HOUSING-CENTER

1шт.

K34

@

SEAL-SECTION

NOT

1шт.

35

XJDF-00001

SCREW-CAP

7шт.

39

XJDF-00039

SCREW-CAP

4шт.

K

XJDF-00040

SEAL KIT

1шт.

S

XJDF-00078

SHAFT ASSY

1шт.
