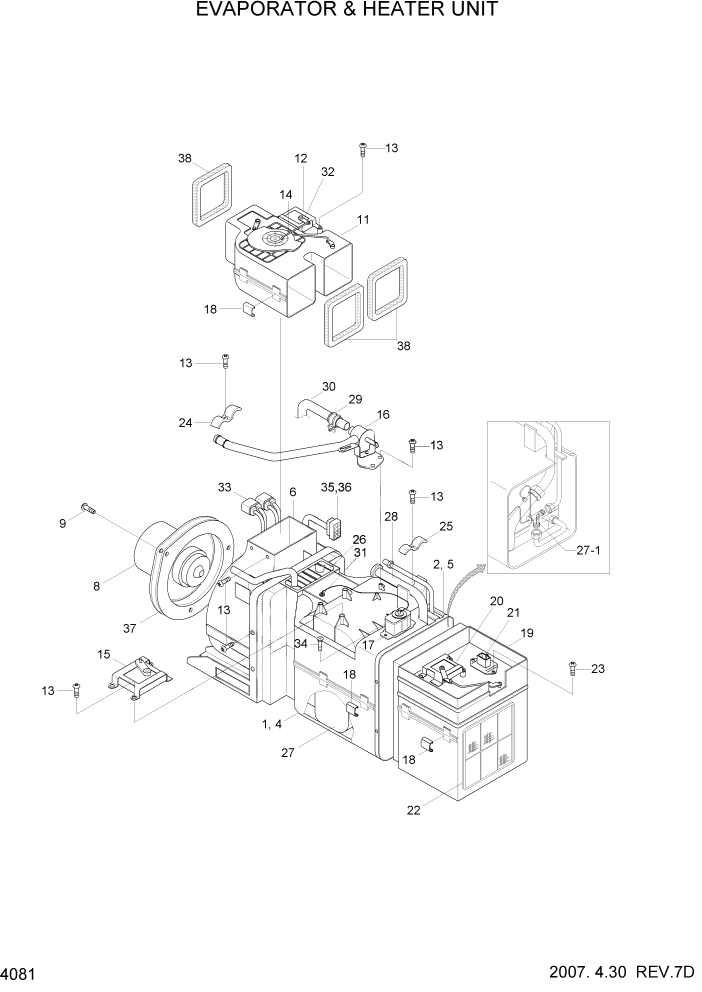

Запчасти Hyundai HL740-3ATM PAGE 4081 EVAPORATOR & HEATER UNIT ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

11L7-90041

EVAP & H/T UNIT

1шт.

1

AM12100400-0

CASE-LOW

1шт.

2

AM11100400-0

CASE-UPPER

1шт.

4

AM75000800-1

INSULATION-LOW

1шт.

5

AM75000700-1

INSULATION-UPPER

1шт.

6

AM13100100-0

CASE-BLOWER

1шт.

8

AM60001700-2

FAN & MOTOR ASSY

1шт.

9

4AH-0886

SCREW

3шт.

N11

AM14000900-1

DAMPER UNIT ASSY

NOT

1шт.

12

AM50200200-1

MOTOR ACT-MODE

1шт.

13

K500531

SCREW

22шт.

14

AM53300200-4

ROD-CAM

1шт.

15

AM50300100-1

TEMP D/ACT ASSY

1шт.

16

AM30000600-2

VALVE ASSY

1шт.

17

A110350101-3

THERMOSTAT

1шт.

18

4AH-0688

CLIP-CASE

8шт.

19

AM13000200-1

INTAKE UNIT ASSY

1шт.

20

AM50400100-1

INTAKE D/ACT ASSY

1шт.

21

AM86000400-2

RESISTOR ASSY

1шт.

22

AM88000300-2

AIR FILTER-REFRESH

1шт.

23

K500533

SCREW

2шт.

24

3AH-0770

CLAMP-PIPE

1шт.

25

AM81400200-3

CLAMP-EVAP PIPE

1шт.

26

AM20002100-2

HEATER RAD SET

1шт.

27

A110055001-0

EVAP CORE ASSY

1шт.

27-1

A110104200Z-2

VALVE-EXPANSION

1шт.

N28

A113055401-2

PIPE ASSY-OUTLET

NOT

1шт.

29

AM27000100-3

CLAMP ASSY-HOSE

1шт.

30

3AH-1007

HOSE-WATER

1шт.

31

A840003201-4

CLIP-TEMP SENDER

1шт.

32

3AH-0705

CLAMP-ROD

2шт.

33

A810000101-3

RELAY-24V

2шт.

34

K500523

SCREW

2шт.

35

AM83301500-1

HARNESS-JUMP WIRE

1шт.

36

4AH-0643

HOLDER-WIRE

6шт.

37

3AH-0774

PACKING-MOTOR

1шт.

38

AM70003800-4

SPONGE-SEALING

3шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
